Toro Power Max Heavy Duty 1232 OHXE - Checking and Adjusting the Traction Cable

CheckingandAdjustingthe
TractionCable
ServiceInterval:Aftertherst2hours—Inspect
thetractioncableandadjustitif
necessary.
Yearly—Inspectthetractioncableandadjustor
replaceitifnecessary.
Ifthemachinedoesnotdriveintheforwardorreverse
speedsoritdriveswhenyoureleasethetractionlever,
adjustthetractioncable.

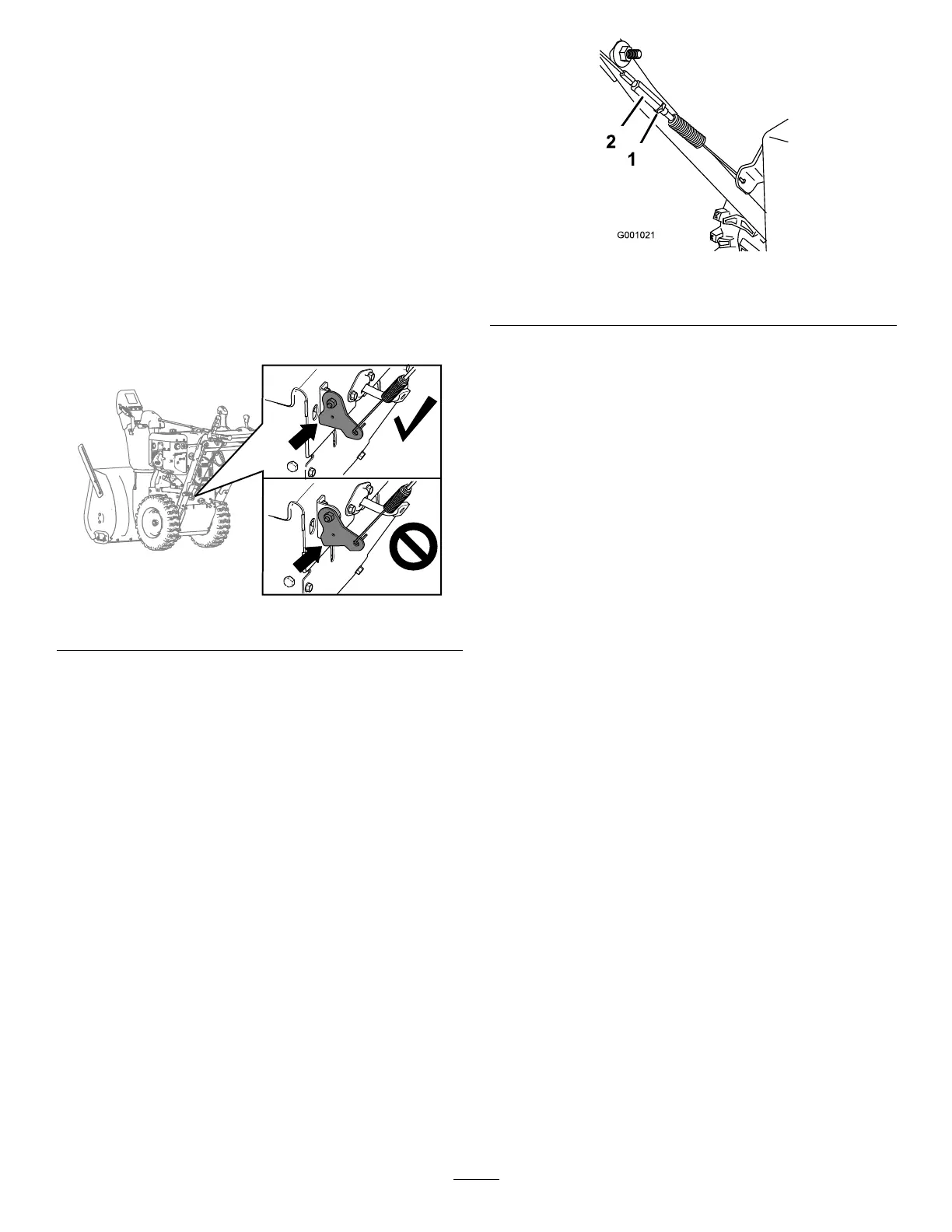

Withthetractionleverdisengaged,ensurethatthe
bottomofthetraction-cablebracketistouchingthe
frameofthemachine(Figure30).
g259431
Figure32
Ifthebottomofthetraction-cablebracketisnot
touchingtheframeofthemachine,theleft(traction)
cableisnotproperlyadjusted.
Toadjustthetractioncable,dothefollowing:
1.Loosenthejamnut.
2.Loosenortightentheturnbuckletountilthe
cableistaughtandthebottomofthebracket
touchestheframeofthemachine.
3.Tightenthejamnut(Figure33).
g001021
Figure33
1.Jamnut2.Turnbuckle
