Toro PowerCurve 1800 - Setup; Installing the Upper Handle; Installing the Chute Control Rod

Setup
Note:Determinetheleftandrightsidesofthemachinefrom
thenormaloperatingposition.
InstallingtheUpperHandle
1.Removethehandleknobs,ovalbolts,andcurvedwashers
fromthelowerhandle.
2.Installtheupperhandletothelowerhandleofthemachine
withthehandleknobs,curvedwashers,andovalboltsas
showninFigure1.

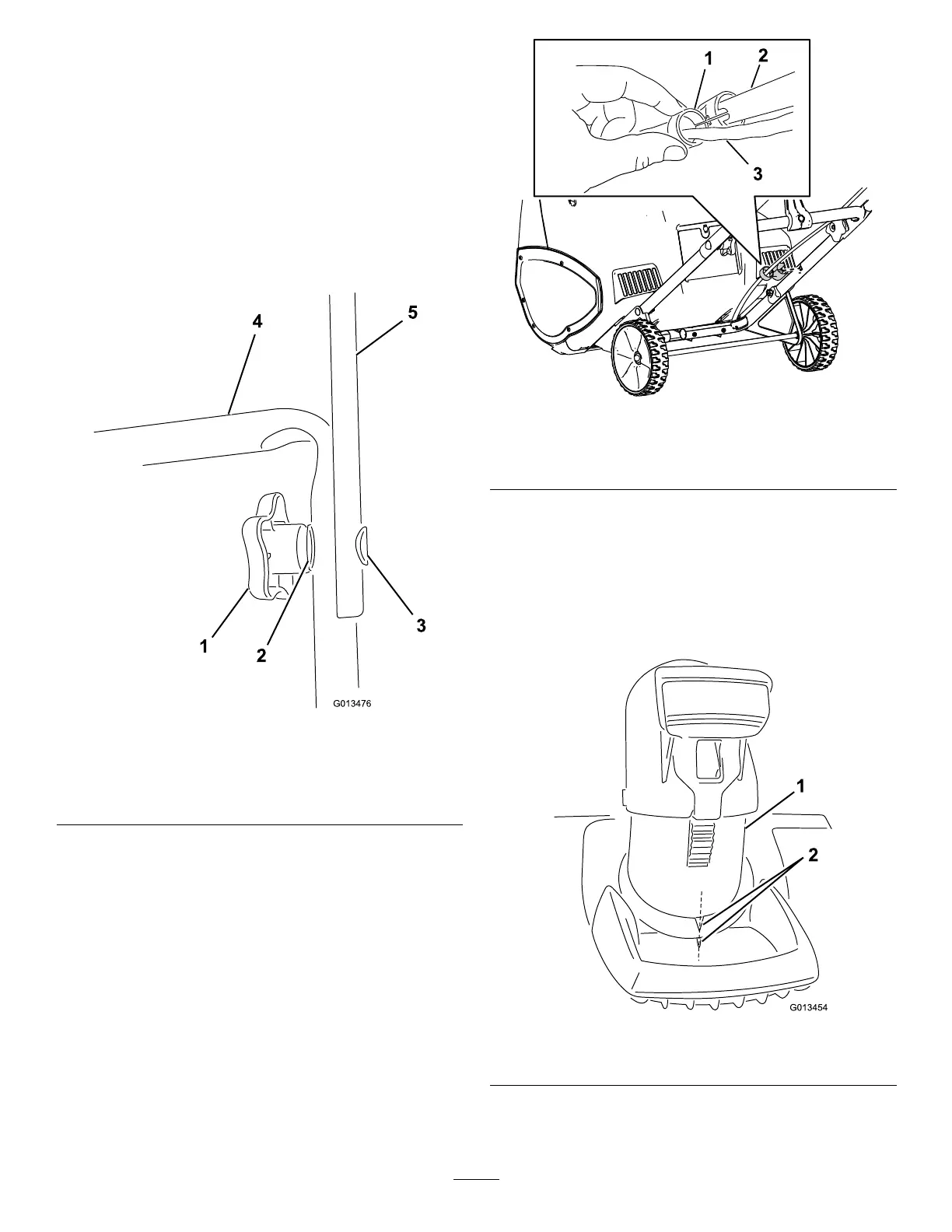

g013476
Figure1
1.Handleknob(2)
4.Lowerhandle
2.Curvedwasher(2)
5.Upperhandle
3.Ovalbolt(2)
Note:Ensurethatthepowercordattachedtothemachine
isroutedoverthelowerhandleandtotheinsideofthe
handleassembly.
3.Tightenthehandleknobsrmlybyhand.
4.Attachthecordguidetothehandle(Figure2).
g287698
Figure2
1.Cordguide3.Cord
2.Handle
InstallingtheChuteControl
Rod
1.Positionthedischargechutesothatitfacesforward.
Important:Alignthearrowonthedischargechute
withthearrowonthehousing(Figure3).
g013454
Figure3
1.Dischargechute2.Alignthearrows
2.Inserttheendofthechutecontrolrodthroughthekeyed
holeinthebracketthatisattachedtothetopofthelower
handle(Figure4).
4
