Toro ProLine 30149 - Adjusting Center Gage Wheels

Operation
9
Adjusting Center Gage Wheels
The gage wheels must be adjusted in the proper hole
location for each height-of-cut position.
1. After adjusting height-of-cut remove bolt and
nut (Fig. 11).
2. Select a hole position so the gage wheel is 3/8”
(9.5 mm) off the ground for the height-of-cut to
be used (Fig. 11).
3. Reinstall the bolt and nut (Fig. 11).

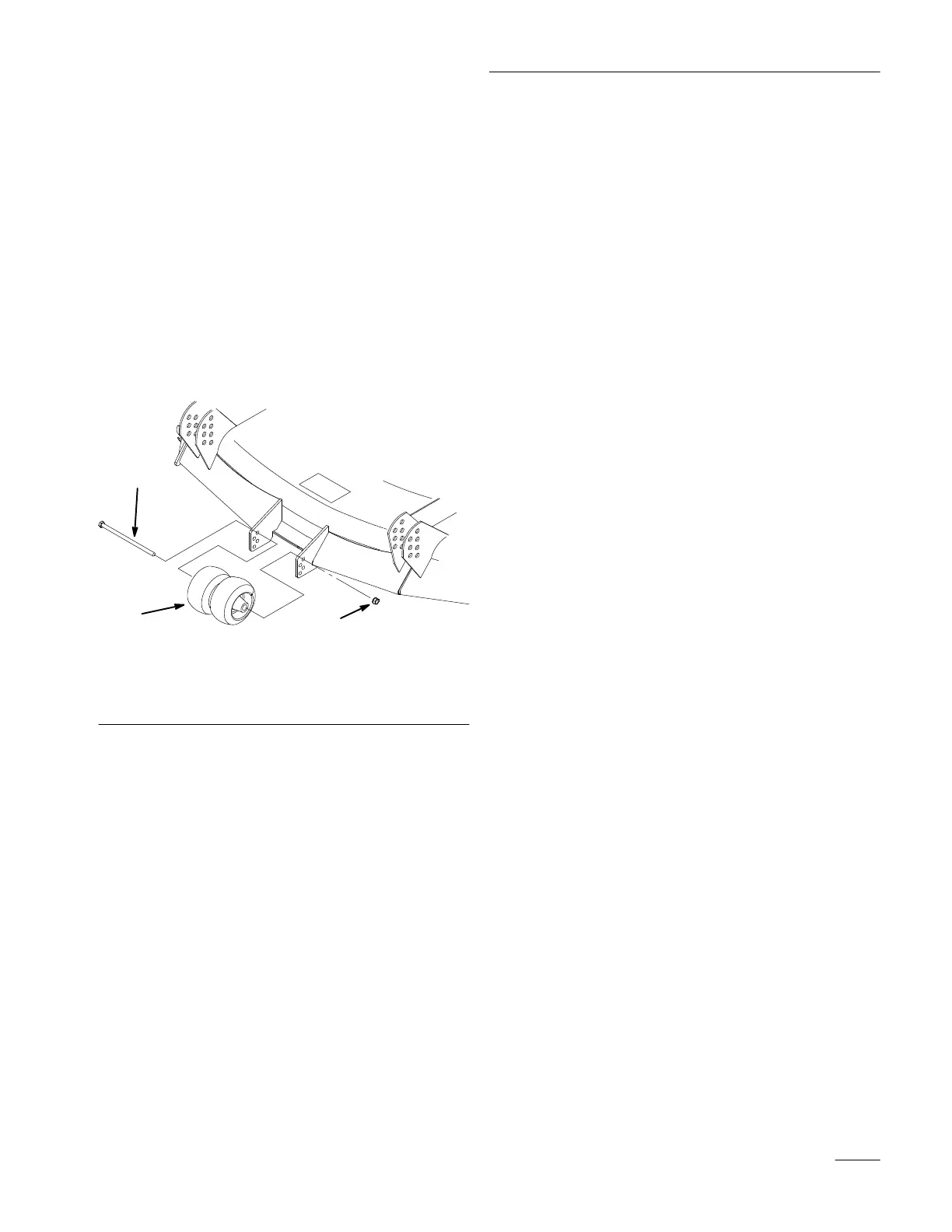

m–4124
1
2
3
Figure 1 1
1. Center Gage Wheels
2. Nut
3. Bolt
