Toro ProStripe 560 Installation Instructions

Operation

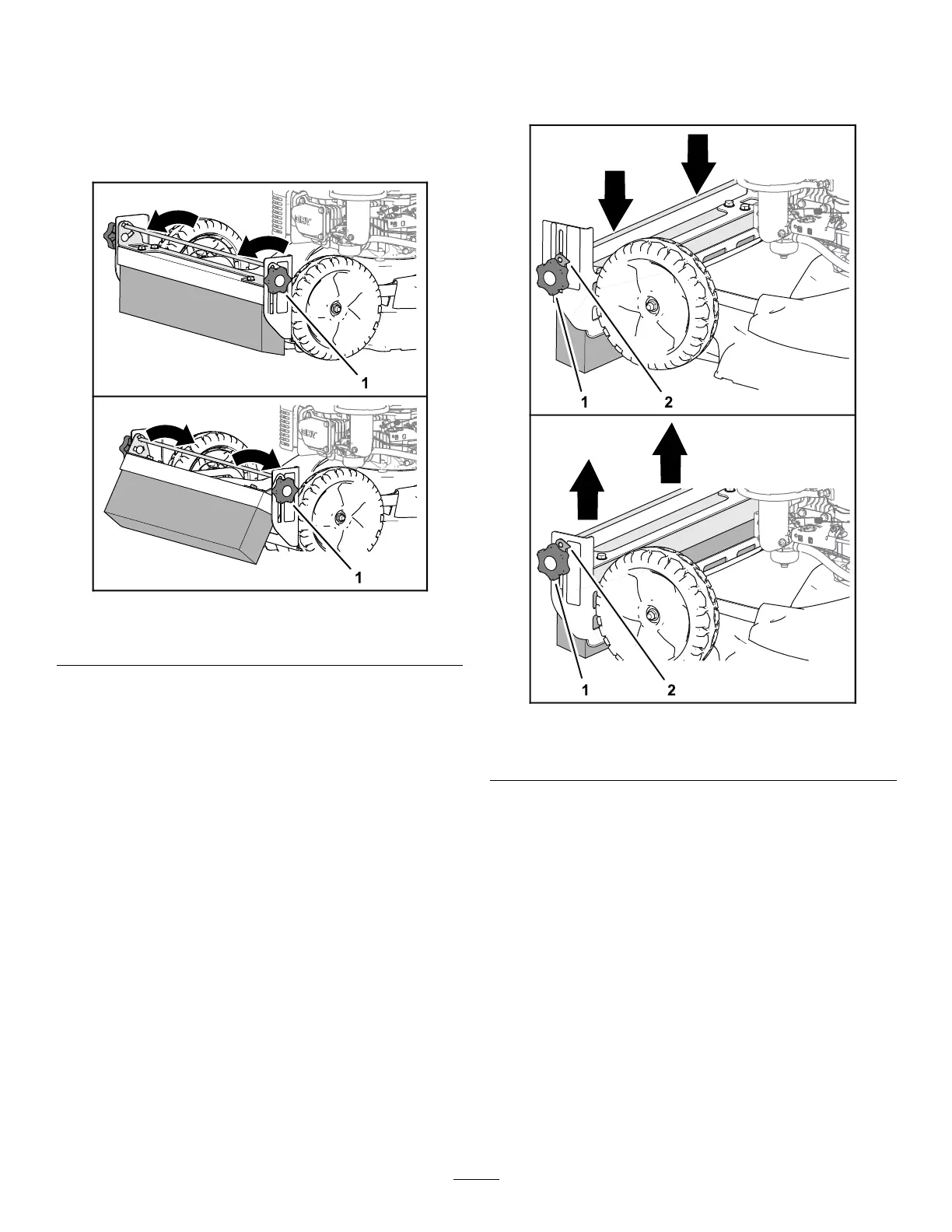

Adjusting the Brush Angle
1. Loosen the knobs at the sides of the brush
mount ( Figure 18 ).
g284762
Figure 18
1. Knob
2. Use the handle of the brush-adjustment bracket
to adjust the angle of the groomer brush ( Figure
18 ).
Note: T ilting the brush forward increases its
aggressiveness. T ilting the brush rearward
decreases its aggressiveness.
3. T ighten the knobs ( Figure 18 ).
Adjusting the Brush Height
1. Loosen the knobs at the sides of the brush
mount ( Figure 19 ).
g284761
Figure 19
1. Knob 2. Brush-height plate
2. Use the handle of the brush-adjustment bracket
to raise or lower the groomer brush ( Figure 19 ).
Note: Ensure that the brush-height plate points
to the same height number at both sides of the
brush mount.
3. T ighten the knobs ( Figure 19 ).
10
