Toro ProStripe 560 Installation Instructions

g284577

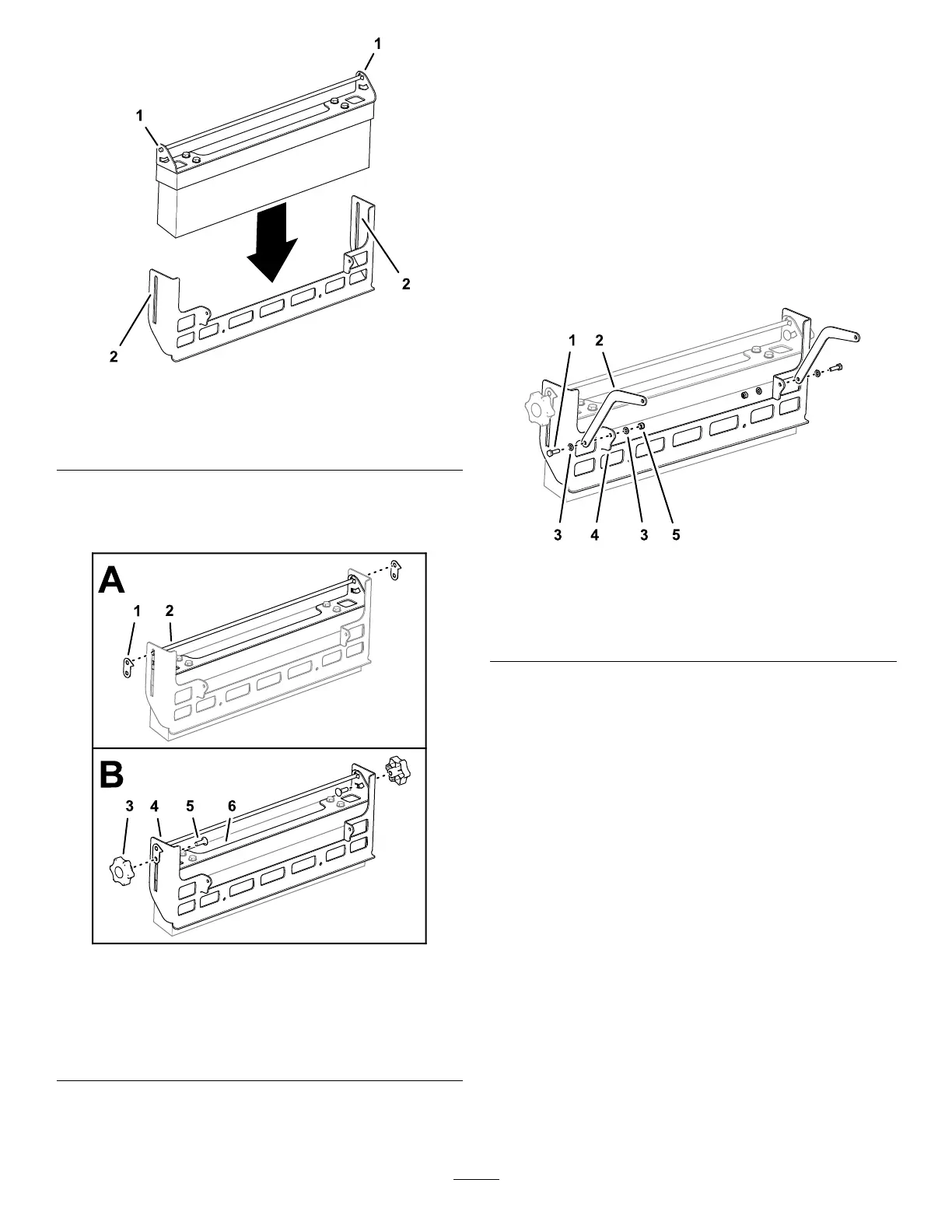

Figure 2
1. End of the handle
(brush-adjustment
bracket)
2. Slot (brush mount)
2. Assemble a brush-height plate over the rod end
of the handle for the brush-adjustment bracket
as shown in Figure 3 .
g284575
Figure 3
1. Brush-height plate 4. Brush mount
2. Handle (brush-adjustment
bracket)
5. Carriage bolt (8 x 25 mm)
3. Knob 6. Brush-adjustment bracket
3. Assemble a carriage bolt through the opening
in the brush-adjustment bracket, the slot in
the brush mount, and the lower hole in the
brush-height plate ( Figure 3 ).
4. Thread a knob onto the carriage bolt, and tighten
the knob ( Figure 3 ).
5. Repeat steps 2 through 4 at the other end of the
brush mount.
Assembling the Struts to the
Brush Mount
1. Align the hole in the brush strut with the hole on
the tab of the brush mount as shown in Figure 4 .
g284578
Figure 4
1. Capscrew (6 x 20 mm) 4. T ab (brush mount)
2. Strut (brush) 5. Locknut (6 mm)
3. W asher (6 mm)
2. Secure the brush strut to the brush mount
( Figure 4 ) with a capscrew (6 x 20 mm), 2
washers (6 mm), and a locknut (6 mm).
3. Repeat steps 1 and 2 for the brush strut at the
other end of the brush mount.
4
