4
3350-657

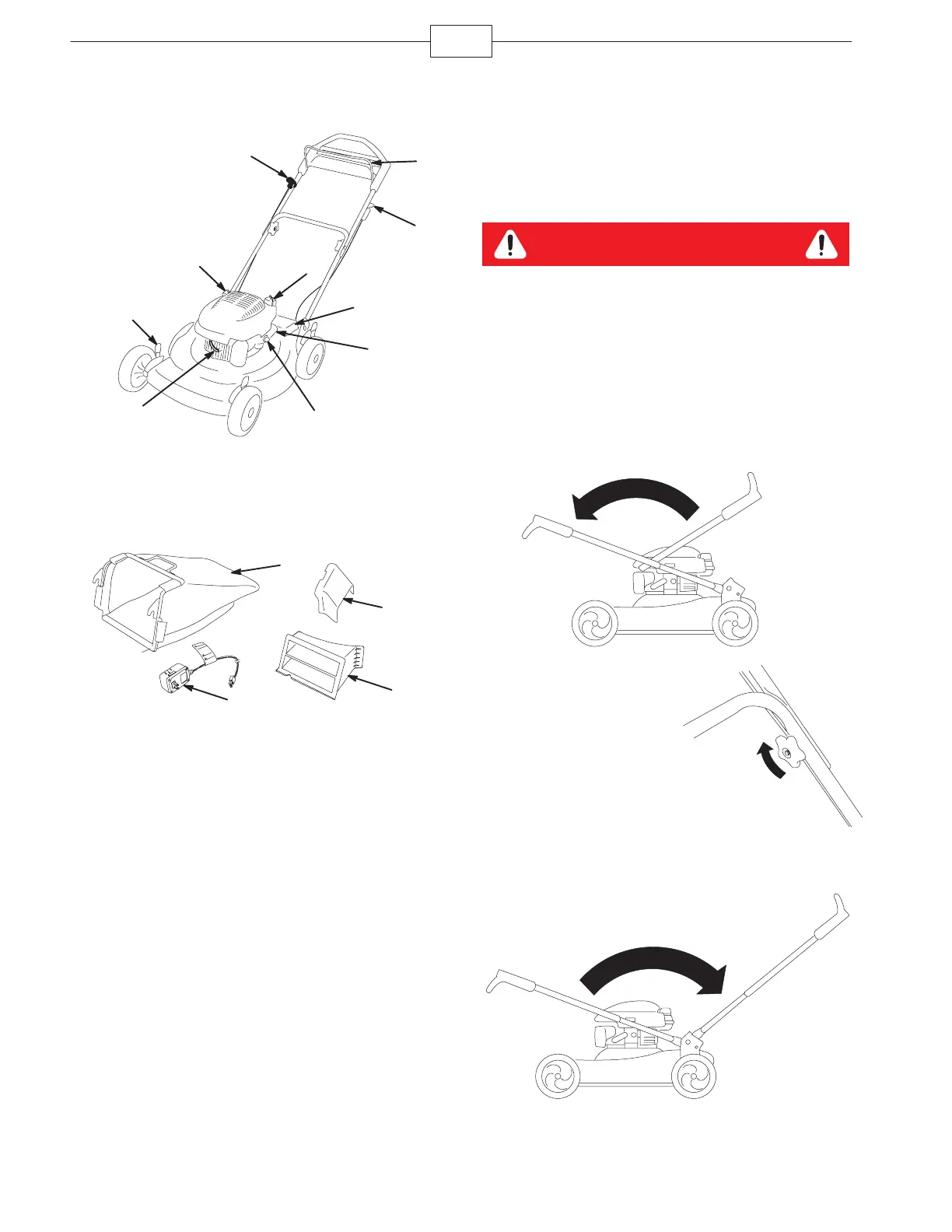

Product Overview
m-6290
5
1
3
2
6
7
8
9
10
4
1. Cutting height lever
2. Oil fill/Dipstick
3. Recoil start handle
4. Blade control bar
5. Ignition key
6. Fuel tank cap
7. Battery
8. Air filter
9. Primer
10. Spark plug
m-5630/m-5637/m-5587
2
1
3
4
1. Grass bag
2. Side discharge chute
3. Battery charger
4. Rear discharge plug
(installed)
Setup
Important: Remove and discard the protective plastic
sheet that covers the engine.
Unfolding the Handle
Warning
Folding or unfolding the handle improperly can
damage the cables, causing an unsafe operating
condition.
Do not damage the cables when folding or
unfolding the handle.
If a cable is damaged, contact an Authorized
Service Dealer.
1. Carefully move the upper handle forward until the
handle halves are in line and nest together as shown.
m-5602b
2. Tighten the handle
knobs.
m-6289
3. Rotate the handle rearward (as shown) until it
clicks into place.
m-5602a
To Next Page
