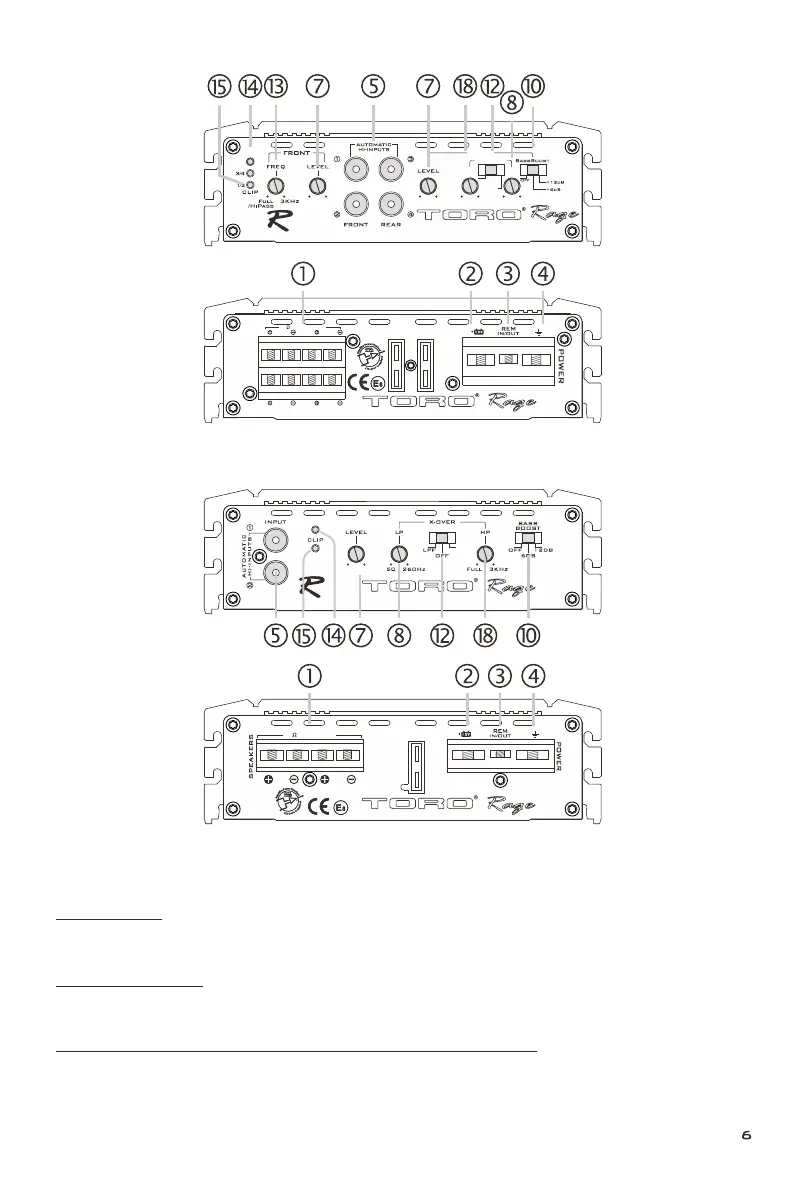

FIG3 . 4-CH AMPLIFIER PANEL LAYOUT
FIG4. 2-CH AMPLIFIER PANEL LAYOUT
1. SPEAKERS
CONNECT SPEAKERS/SUBWOOFERS TO THESE TERMINALS. BE SURE TO CHECK WIRE FOR PROPER POLARITY.
NEVER CONNECT THE SPEAKER CABLES TO CHASSIS GROUND.
2.+12VOLT POWER
CONNECT THIS TERMINAL THROUGH A FUSE CIRCUIT BREAKER TO THE POSITIVE TERMINAL OF THE VEHICLE
BATTERY OR THE POSITIVE TERMINAL OF AN ISOLATED AUDIO SYSTEM BATTERY.
AMPLIFIER FUNCTIONS
3. AUTO SENSING TURN ON FUNCTION / REM OUT(HI-INPUTS)
WHEN USE HI-INPUT, THE AMP CAN DETECT THE DC OFFSET FROM THE HIGH-LEVEL INPUT SIGNAL TO AUTO
TURN ON/OFF. WHEN THE AMP TURNS ON, THE REM TERMINAL WILL OUTPUT+1 2V DC TO CONTROL THE OTHER
DEVICE TURN ON/OFF.
REM IN: WHEN USE LOW LEVEL INPUT, THE AMP REM IN SHOULD BE CONNECTED TO THE REMOTE OUT OF THE
SOURCE UNIT. THE HEAD UNIT CONTROLS THE AMP TURN ON/OFF.
