Toro SS 3225 - Page 41

G014636
1
2
3
4
5
6
7
g014636

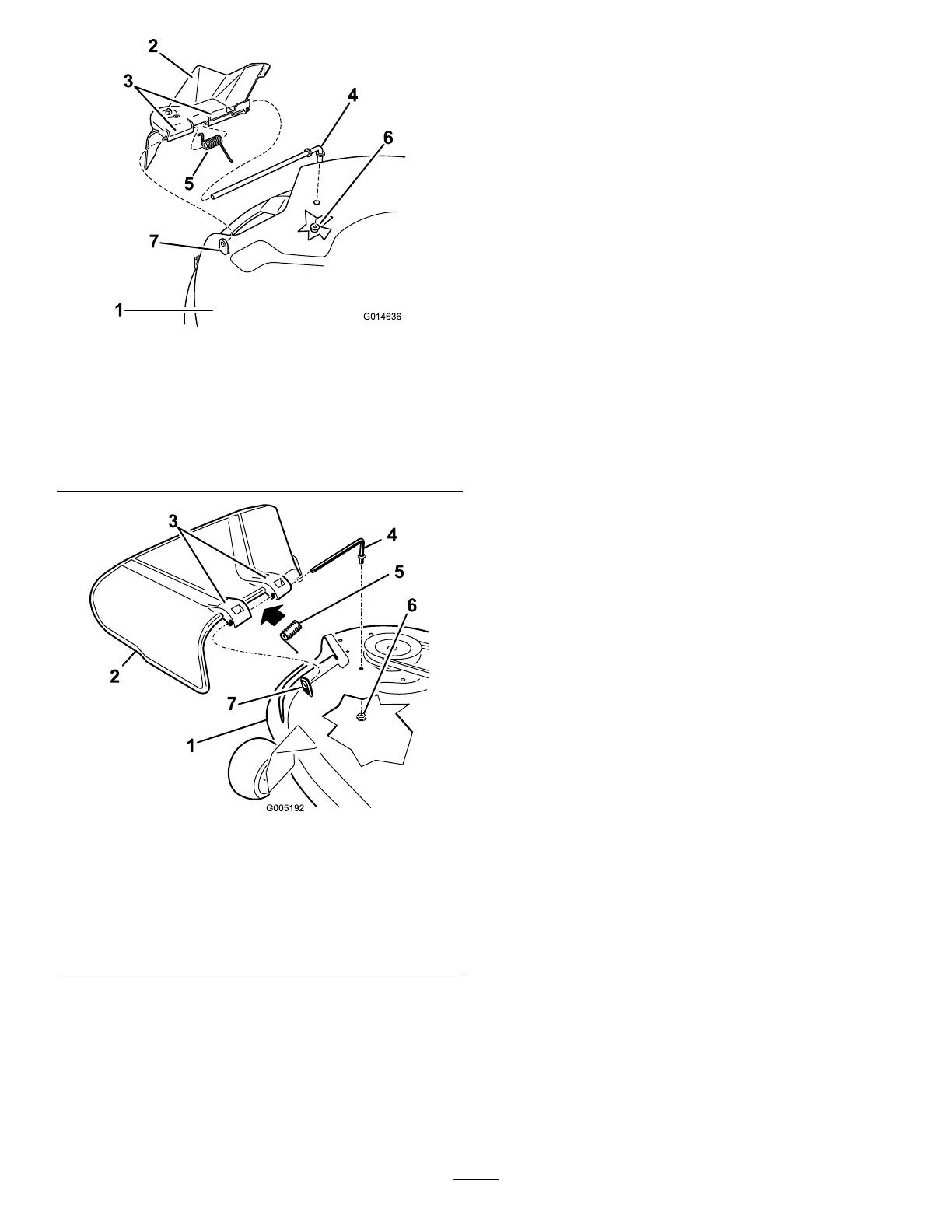

Figure63
81cm(32-Inch)Deck
1.Mowerdeck
5.Spring
2.Grassdeector6.Nut(3/8inch)
3.Grass-deectorbracket7.Shortstandoff
4.Rod
G005192
1
2
3
4
5
6
7
g005192
Figure64
107cm(42-Inch)Deck
1.Mowerdeck
5.Spring
2.Grassdeector6.Nut(3/8inch)
3.Grass-deectorbracket7.Shortstandoff
4.Rod
2.Slidetherodoutoftheshortstand-off,spring,and
grassdeector(Figure63andFigure64).
3.Removethedamagedorworngrassdeector.
4.Replacethegrassdeector(Figure63andFigure64).
5.Slidetherod(straightend),throughthe
rear-grass-deectorbracket.
6.Placethespringontherod,withtheendwiresdown,
andbetweenthegrassdeectorbrackets.
7.Slidetherodthroughsecondgrassdeectorbracket
(Figure63andFigure64).
8.Inserttherodatthefrontofthegrassdeectorinto
theshortstandoffonthedeck.
9.Securetherearendoftherodintothemowerwitha
nut(3/8inch)asshowninFigure63andFigure64.
Important:Thegrassdeectormustbespring
loadedinthedownposition.Liftthedeectorup
totestthatitsnapstothefulldownposition.
41
