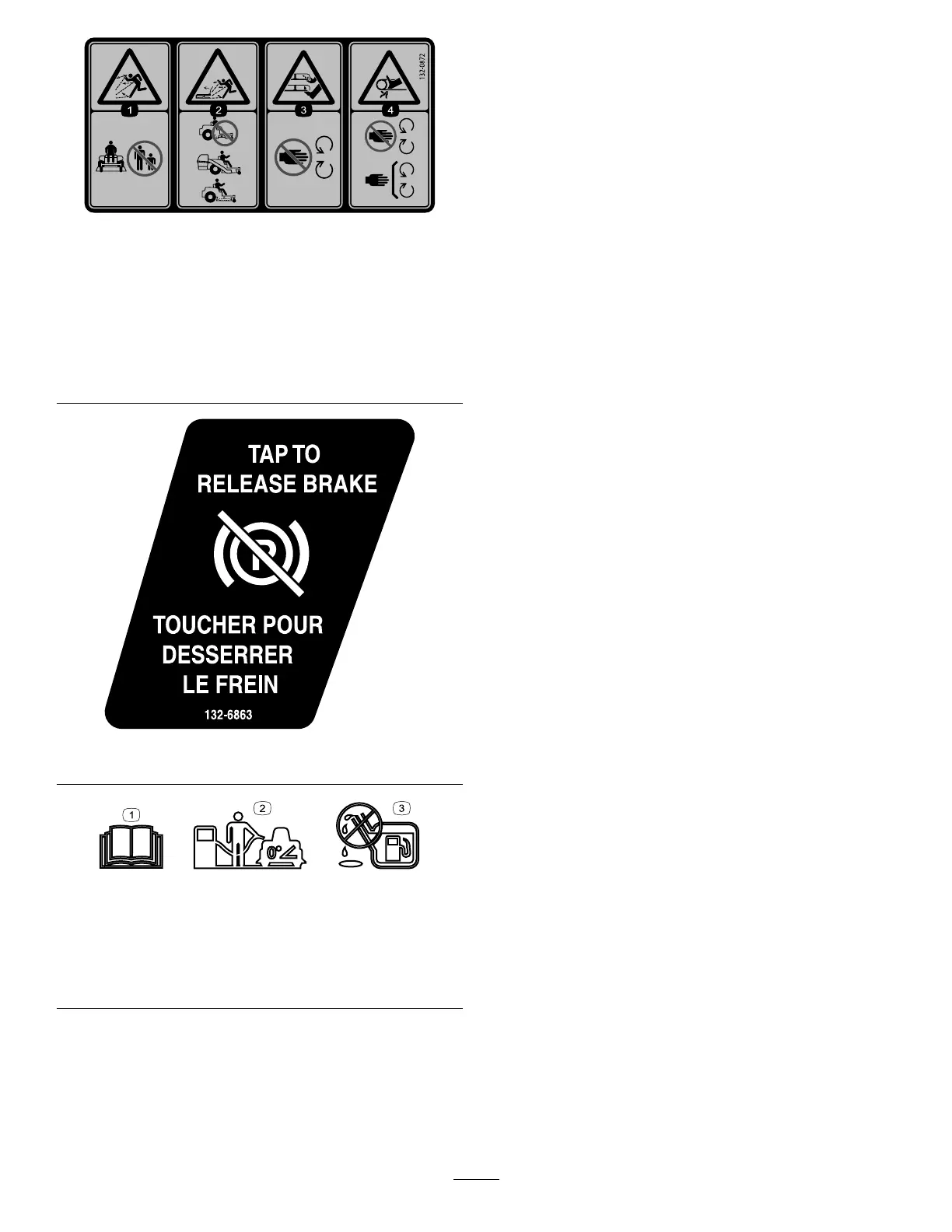

decal132-0872

132-0872

1.Thrownobject

hazard—keepbystanders

awayfromthemachine.

3.Severinghazardofhand

orfoot—keepawayfrom

movingparts.

2.Thrownobjecthazard,

raisedbafe—donot

operatethemachinewith

anopendeck;usea

baggerorabafe.

4.Entanglement

hazard—keepaway

frommovingparts;keep

allguardsandshieldsin

place.

decal132-6863

132-6863

decal138-2456

138-2456

1.ReadtheOperator’s

Manual.

3.Donotoverllthefuel

tank.

2.Parkthemachineona

levelsurfacewhenlling

thefueltank.

Table of Contents3
Safety4
General Safety4
Slope Indicator5
Safety and Instructional Decals6
Product Overview11
Controls11
Before Operation13
Before Operation Safety13
Adding Fuel13
Performing Daily Maintenance14
Breaking in a New Machine14
Using the Safety-Interlock System15
Positioning the Seat16
Positioning the Steering Wheel16
During Operation17
During Operation Safety17
Operating the Smart Park Parking Brake19
Engaging the Blade-Control Switch (PTO)19
Disengaging the Blade-Control Switch (PTO)19
Operating the Throttle19
Starting the Engine20
Shutting off the Engine20
Driving the Machine20
Mowing in Reverse21
Using the Side Discharge21
Adjusting the Height of Cut22
Operating Tips22
After Operation23
After Operation Safety23
Pushing the Machine by Hand23
Transporting the Machine24
Maintenance26
Recommended Maintenance Schedule(S)26
Pre-Maintenance Procedures27
Maintenance Safety27
Raising the Seat27
Raising the Front of the Machine27
Lubrication28
Greasing the Bearings28
Engine Maintenance28
Engine Safety28
Servicing the Air Cleaner28
Servicing the Engine Oil29
Servicing the Spark Plug32
Cleaning the Blower Housing32
Fuel System Maintenance33
Replacing the In-Line Fuel Filter33
Electrical System Maintenance34
Electrical System Safety34
Servicing the Battery34
Servicing the Fuses35
Drive System Maintenance36
Checking the Tire Pressure36
Releasing the Electric Brake36
Belt Maintenance37
Inspecting the Belts37
Replacing the Mower Belt37
Mower Maintenance38
Servicing the Cutting Blades38
Leveling the Mower Deck40
Removing the Mower Deck42
Installing the Mower Deck43
Replacing the Grass Deflector43
Cleaning44
Cleaning under the Front of the Machine44
Washing the Underside of the Mower Deck44
Disposing of Waste44
Storage45
Storage Safety45
Cleaning and Storage45
Storing the Battery46
Troubleshooting47
Schematics49
