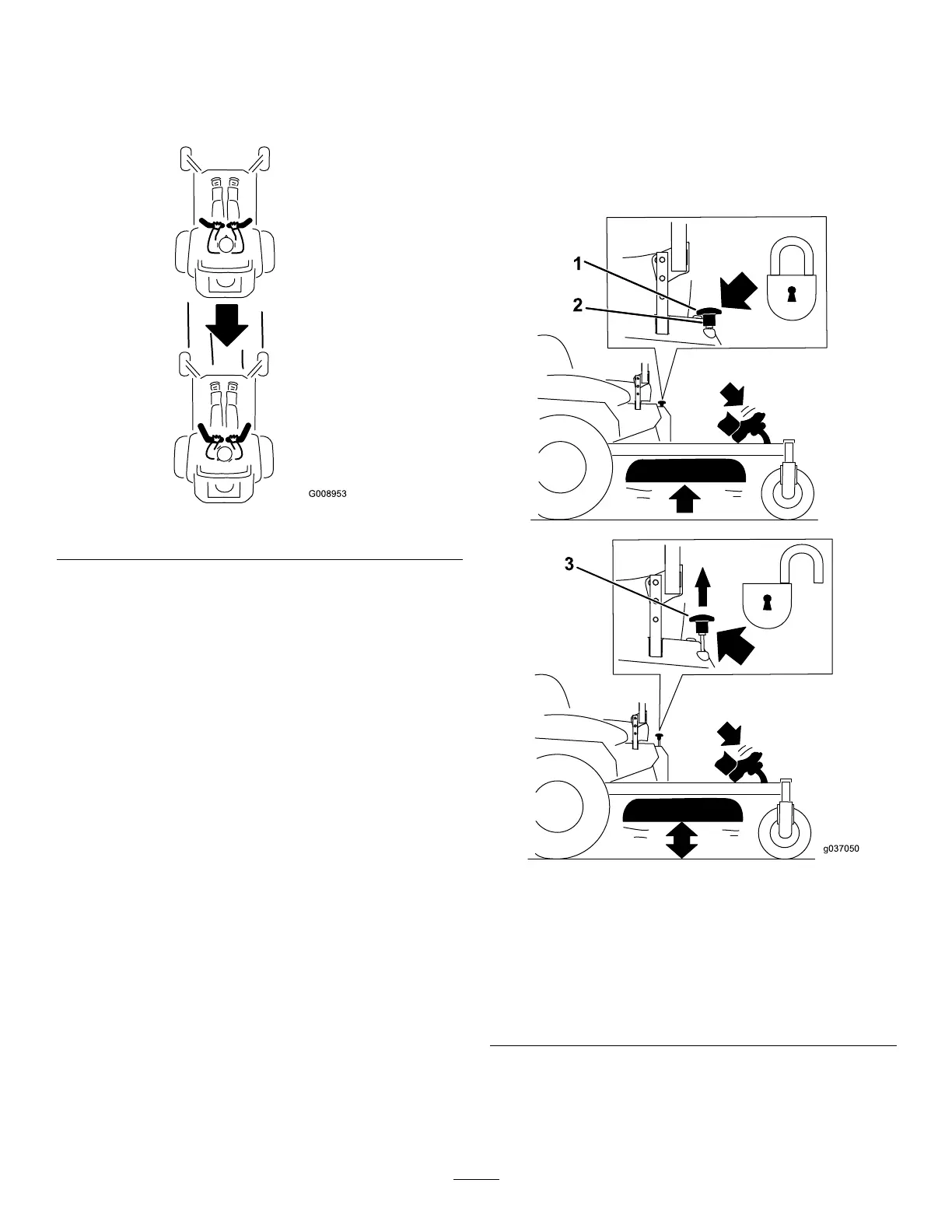

DrivingBackward

1.Movetheleverstothecenter,unlockedposition.

2.Togobackward,slowlypullthemotion-control

leversrearward(Figure33).

g008953

Figure33

AdjustingtheHeightofCut

UsingtheTransportLock

Thetransportlockhas2positions,andisusedwith

thedeck-liftpedal.ThereisaLOCKpositionand

anUNLOCKpositionforthetransportpositionofthe

mowerdeck(Figure34).

g037050

Figure34

Transport-LockPositions

1.Transportlockknob3.UNLOCKposition—The

mowerdeckdoesnotlock

intothetransportposition.

2.LOCKposition—The

mowerdecklocksintothe

transportposition.

Table of Contents3
Safety4
General Safety4
Slope Indicator5
Safety and Instructional Decals6
Product Overview15
Controls15
Specifications17
Before Operation18
Before Operation Safety18
Adding Fuel18
Performing Daily Maintenance20
Breaking in a New Machine20
Using the Rollover-Protection System20
(Rops)20
Using the Safety-Interlock System21
Positioning the Seat22
Changing the Seat Suspension22
Adjusting the Myride™ Suspension System23
Using Attachments and Accessories24
During Operation24
During Operation Safety24
Entering the Operator's Position26
Operating the Parking Brake26
Operating the Mower Blade-Control Switch (PTO)26
Operating the Throttle27
Operating the Choke27
Starting the Engine28
Shutting off the Engine28
Using the Motion-Control Levers30
Driving the Machine30
Adjusting the Height of Cut31
Adjusting the Anti-Scalp Rollers32
Adjusting the Side Bumpers33
Using the Side Discharge33
Operating Tips33
After Operation34
After Operation Safety34
Using the Fuel-Shutoff Valve34
Using the Drive-Wheel Release Valves35
Transporting the Machine36
Maintenance38
Recommended Maintenance Schedule(S)38
Pre-Maintenance Procedures39
Maintenance Safety39
Lubrication40
Greasing the Machine40
Lubricating the Caster-Wheel Hubs41
Engine Maintenance42
Identifying the Engine42
Engine Safety42
Servicing a Kawasaki ® Engine42
Servicing a Kohler Engine47
Disengage the Blade-Control Switch (PTO) and Engage the Parking Brake49
Shut off the Engine, Remove the Key, and Wait for All Moving Parts to Stop before Leaving the Operating Position49
Servicing a Toro Engine52
Drain the Oil from the Engine55
(Figure 51)55
Oil into the Filler Tube and Slowly Add the Additional Oil to Bring It to the Full Mark56
Checking the Spark Arrester57
Replacing the Emissions-Air Intake Filter58
Fuel System Maintenance58
Replacing the Fuel Filter58
Servicing the Fuel Tank59
Electrical System Maintenance59
Electrical System Safety59
Servicing the Battery59
Servicing the Fuses61
Drive System Maintenance62
Checking the Seat Belt62
Checking the Roll-Bar Knobs62
Adjusting the Tracking63
Checking the Tire Pressure63
Checking the Wheel Lug Nuts63
Cooling System Maintenance64
Cleaning the Engine Screen64
Brake Maintenance64
Adjusting the Parking Brake64
Belt Maintenance66
Inspecting the Belts66
Replacing the Mower Belt for Side-Discharge Mower Decks66
Replacing the Mower Belt for Rear-Discharge Mower Decks67
Replacing the Hydraulic Pump-Drive Belt69
Controls System Maintenance70
Adjusting the Control-Handle Position70
Adjusting the Motion-Control Linkage71
Hydraulic System Maintenance72
Hydraulic System Safety72
Servicing the Hydraulic System72
Mower Deck Maintenance74
Servicing the Cutting Blades74
Leveling the Mower Deck78
Removing the Mower Deck80
Replacing the Grass Deflector80
Cleaning81
Cleaning under the Mower Deck81
Cleaning the Suspension System81
Disposing of Waste81
Storage82
Storage Safety82
Cleaning and Storage82
Troubleshooting83
Schematics85
