Toro TITAN HD 74467 User Manual

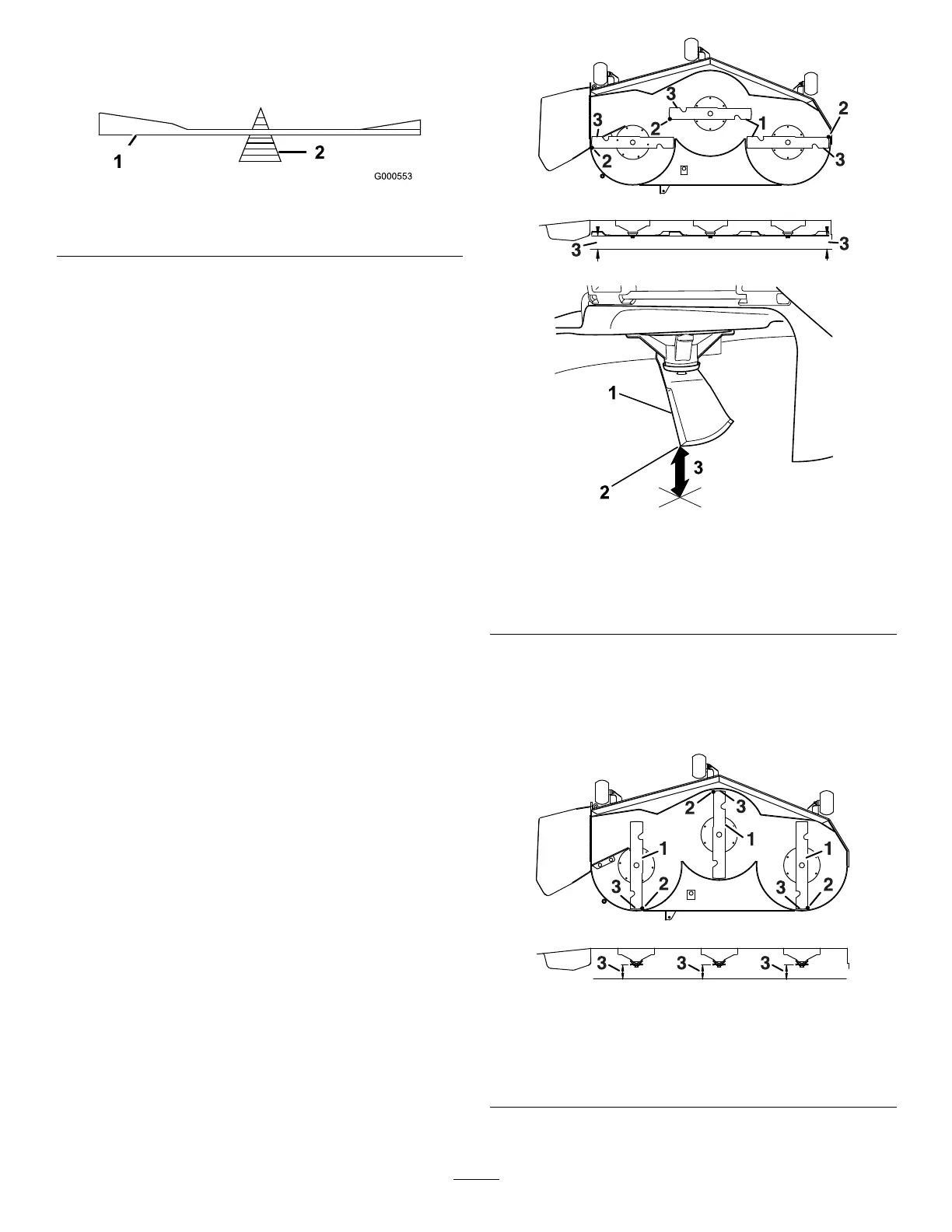

Note:Ifthebladeisnotbalanced,lesome
metalofftheendofthesailareaonly(Figure
118).
g000553
Figure119
1.Blade2.Balancer
3.Repeatthisprocedureuntilthebladeis
balanced.
LevelingtheMowerDeck
Checktoensurethatthemowerdeckislevelanytime
youinstallthemowerorwhenyouseeanunevencut
onyourlawn.
Checkthemowerdeckforbentbladespriorto
leveling,andremoveandreplaceanybentblades;
refertotheServicingtheCuttingBlades(page74)
beforecontinuing.
Levelthemowerdeckside-to-siderst;thenyoucan
adjustthefront-to-rearslope.
Requirements:
•Themachinemustbeonalevelsurface.
•Alltiresmustbeproperlyinated;refertoChecking
theTirePressure(page63).
AdjustingtheSide-to-Side
LevelingandtheBladeSlope
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch(PTO),andengagethe
parkingbrake.
2.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Checkthetirepressureinthedrivetires.Refer
toCheckingtheTirePressure(page63).
4.Positionthemowerdeckinthetransport-lock
position.
5.Carefullyrotatethebladesfromsidetoside.
6.Measurebetweenthebladetipandtheat
surface(Figure120).Ifthemeasurementsare
notwithin5mm(3/16inch),adjusttheleveling;
continuewiththisprocedure.
g229303
g229305
Figure120
1.Bladessidetoside
3.Measurefromthetipofthe
bladetotheatsurface
here.
2.Bladetip
7.Checkthefront-to-rearbladelevel(Figure121).
Ensurethefrontbladetipislowerthantherear
bladetipasshownintheblockheightandrake
table.Ifitneedsadjustment,continuewiththis
procedure.
g229304
Figure121
1.Bladesfronttorear3.Measurefromthetipofthe
bladetotheatsurface
here.
2.Bladetip
78
