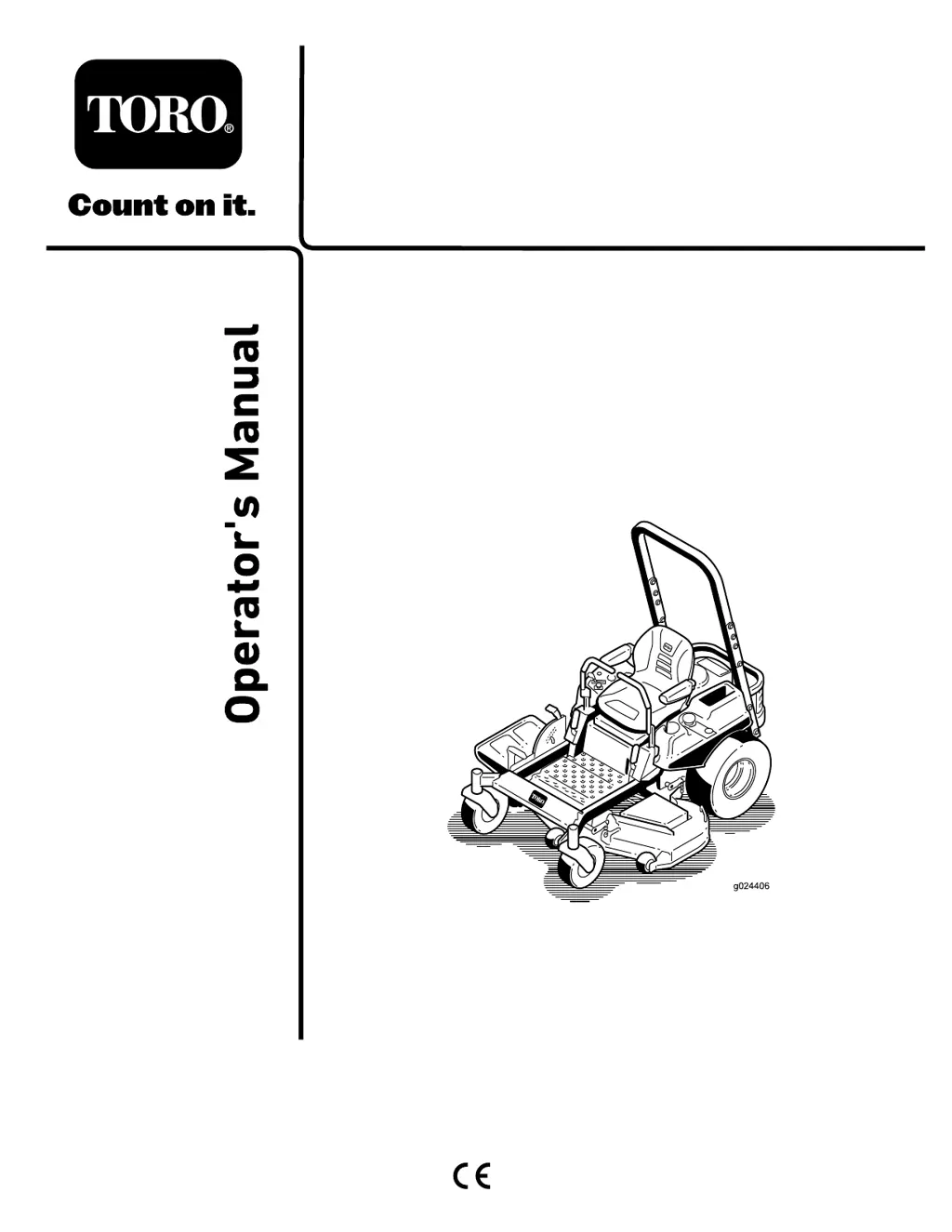

FormNo.3400-805RevA

TITAN

®

ZX4800or5400

Zero-Turn-RadiusRidingMower

ModelNo.74846—SerialNo.316000001andUp

ModelNo.74848—SerialNo.316000001andUp

g024406

Registeratwww.Toro.com.

OriginalInstructions(EN)

*3400-805*A

Table of Contents

Questions and Answers:

U
uaustinAug 23, 2025
Why Toro TITAN ZX 5400 Lawn Mower engine will not start?
- S
  Shane HodgesAug 23, 2025
  Several factors can prevent your Toro Lawn Mower engine from starting. Ensure the fuel tank is full and the fuel shutoff valve is open. Check that the oil level in the crankcase is adequate. For a cold engine, make sure the choke is in the 'ON' position, and for a warm engine, ensure it's in the 'OFF' position. Also, the throttle control should be midway between the 'SLOW' and 'FAST' positions. Other potential issues include a dirty fuel filter (replace it), a dirty air cleaner (clean or replace it), a faulty spark plug (clean, adjust, or replace it), or a disconnected spark plug wire (check the connection). Check the seat switch indicator and replace the seat if needed. Finally, inspect electrical connections for corrosion or looseness, cleaning and reconnecting them as necessary.
J
Jerry HansonAug 25, 2025
How to fix Toro TITAN ZX 5400 engine that loses power?
- B
  Brent BarrettAug 26, 2025
  If your Toro Lawn Mower engine is losing power, here are some possible causes and solutions: * Reduce the ground speed if the engine load is excessive. * Clean the air cleaner element if it is dirty. * Add oil to the crankcase if the oil level is low. * Remove any obstructions from the cooling fins and air passages. * Clean or replace the fuel cap if the vent hole is plugged. * Replace the fuel filter if it contains dirt.
R
Robert CantrellAug 26, 2025
What to do if my Toro TITAN ZX 5400 doesn't drive?
- K
  Kristopher BrownAug 26, 2025
  If your Toro Lawn Mower isn't driving, check the following: * Ensure the bypass valves are tightened securely. * Inspect the pump belt for wear, looseness, or breakage, and change the belt if necessary. * Make sure the pump belt is properly positioned on the pulley, and change the belt if needed. * Replace any broken or missing idler spring. * Ensure the hydraulic oil level is adequate and not too hot; add hydraulic oil to the reservoirs or allow it to cool down.
J
Joshua WeberAug 27, 2025
How to fix uneven cutting height on my Toro TITAN ZX 5400 Lawn Mower?
- B
  Barry HernandezAug 27, 2025
  Uneven cutting height on your Toro Lawn Mower can be caused by: * Dull blades: Sharpen the blade(s). * Bent cutting blades: Install new cutting blade(s). * Mower deck not level: Level the mower deck from side-to-side and front-to-rear. * Dirty mower underside: Clean the underside of the mower. * Incorrect tire pressure: Adjust the tire pressure.
D
Denise AndradeAug 29, 2025
Why does my Toro TITAN ZX 5400 Lawn Mower engine lose power?
- X
  xkingAug 29, 2025
  If your Toro Lawn Mower engine loses power, there are several things you can check. First, reduce the ground speed if the engine load is excessive. Clean the air cleaner element if it's dirty. Add oil to the crankcase if the oil level is low. Remove any obstructions from the cooling fins and air passages. Clean or replace the fuel cap if the vent hole is plugged. Lastly, replace the fuel filter if it's dirty.
C
Chelsea ClarkAug 30, 2025
Why is my Toro Lawn Mower engine overheating?
- H
  Harry WilsonAug 30, 2025
  If your Toro Lawn Mower's engine is overheating, reduce the ground speed if the engine load is excessive. Ensure the oil level in the crankcase is adequate by adding oil if it's low. Also, check for any obstructions blocking the cooling fins and air passages above the engine, and remove them.
Y
Yesenia McintyreAug 31, 2025
Why Toro Lawn Mower blades do not rotate?
- H
  heather92Sep 1, 2025
  If your Toro Lawn Mower blades do not rotate, install a new deck belt if the current mower deck belt is worn, loose, or broken. If the mower deck belt is off the pulley, install it and check the idler pulley, idler arm, and spring for correct position and function. Check the belt tension or install a new belt if the pump drive belt is worn, loose, or broken. Replace the spring if the idler spring is broken or missing.
M
meyersnancySep 2, 2025
How to troubleshoot uneven cutting height on Toro Lawn Mower?
- R
  ryanedwardSep 2, 2025
  To address uneven cutting height with your Toro Lawn Mower, start by sharpening the blade(s) if they are not sharp. Replace the cutting blade(s) if they are bent. Level the mower deck from side-to-side and front-to-rear. Clean the underside of the mower if it's dirty. Adjust the tire pressure to the correct level.
M
Mark OliverSep 3, 2025
Why Toro TITAN ZX 5400 machine does not drive?
- X
  xhoustonSep 3, 2025
  If your Toro Lawn Mower isn't driving, first ensure the bypass valves are tightly closed. Other possible causes include a worn, loose, or broken pump belt (change the belt) or a pump belt that has come off a pulley (change the belt). Check for a broken or missing idler spring and replace it if necessary. Also, verify that the hydraulic oil level is adequate and not too hot; add hydraulic oil to the reservoirs or allow it to cool down.
R
Robert ThompsonSep 5, 2025
What to do if Toro TITAN ZX 5400 blades do not rotate?
- J
  Jacob ReynoldsSep 5, 2025
  If the blades on your Toro Lawn Mower aren't rotating, it could be due to a worn, loose, or broken mower deck belt; install a new deck belt. Another possibility is that the mower deck belt is off the pulley; install the mower deck pulley and check the idler pulley, idler arm, and spring for correct position and function. Also, check if the pump drive belt is worn, loose, or broken; check the belt tension or install new belt. Finally, inspect the idler spring for breaks or missing parts; replace the spring if necessary.
