Toro TurfMaster 22235 - Changing the Transmission Belt

g208923

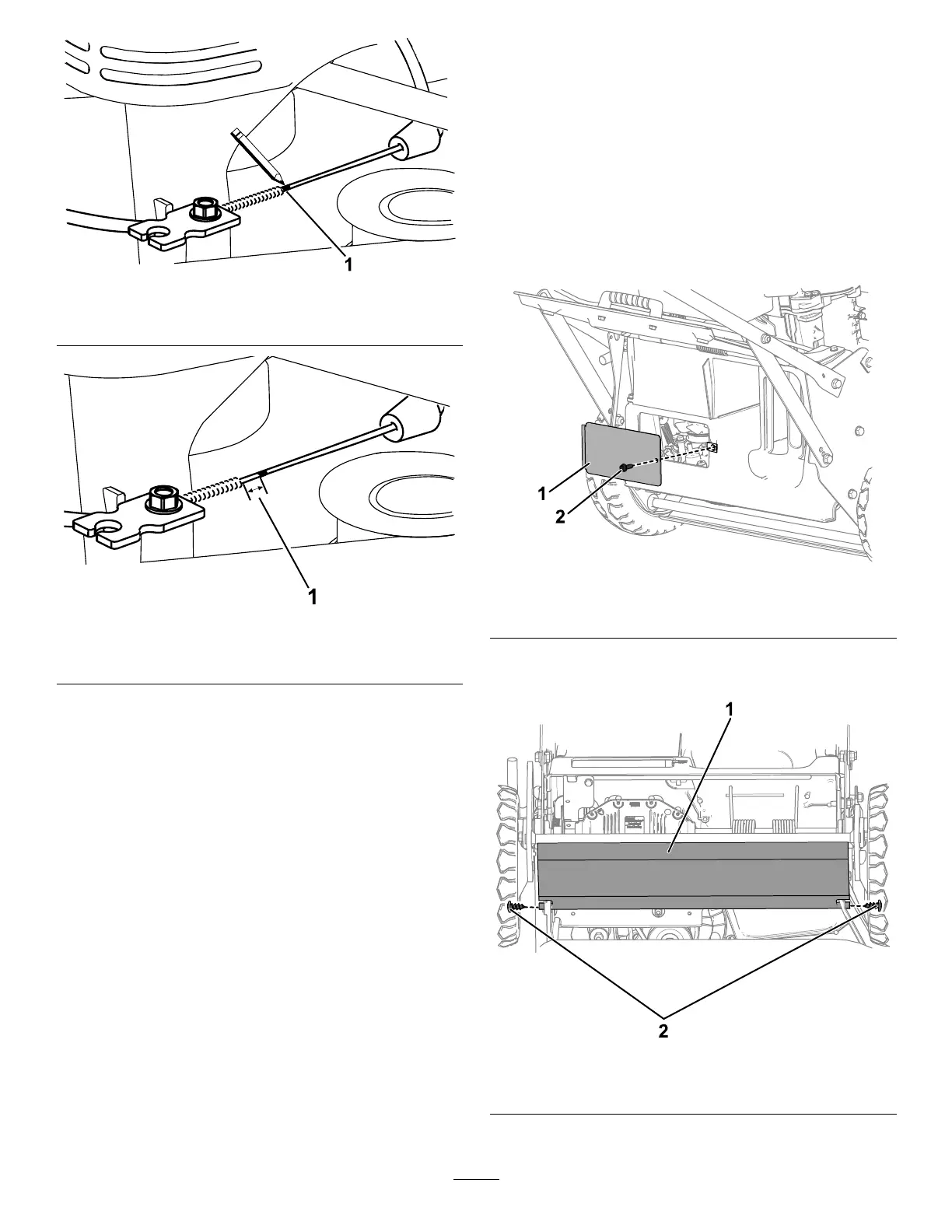

Figure45
1.Markthecablehere
g208920
Figure46
1.Slack—11mm(7/16inch)
8.Torquethecable-clampscrewto11to14N∙m
(99to121in-lb)tolocktheadjustmentinplace.
9.Installthebeltcoverwiththe4boltsthatyou
removedinstep3.
10.Connectthewiretothesparkplug.
11.Checktheoperationoftheblade-brakeclutch.
ChangingtheTransmission
Belt
ServiceInterval:Every250hours
RemovingtheTransmissionBelt
Note:Retainallhardwareremovedinthisprocedure,
excepttheoldtransmissionbelt,forinstallationin
InstallingtheTransmissionBelt(page34).
1.Shutofftheengineandwaitforallmovingparts
tostop.
2.Disconnectthewirefromthesparkplug.
3.Removethe4boltsthatholdthebeltcoverto
themachinehousing.
4.Removethebeltcover.
5.Removeanydebrisfromunderthebeltcover.
6.Ifthegrassbagisonthemachine,removeit.
RefertoRemovingtheGrassBag(page19).
7.Raiseandholdupthereardeector.
8.Removetherear-viewingwindow,locatedunder
therear-dischargedeector,byremovingthe
boltholdingitinplace(Figure47).
g280620
Figure47
1.Rear-viewingwindow2.Rear-viewing-windowbolt
9.Removethetrailingshieldbyremovingthe2
boltsholdingitinplace(Figure48).
g280624
Figure48
1.Trailingshield2.Trailing-shieldbolts
33
