Toro Workman MD - Exhaust System

Workman MDPage 4 -- 8Single Cylinder Gasoline Engine
Exhaust System

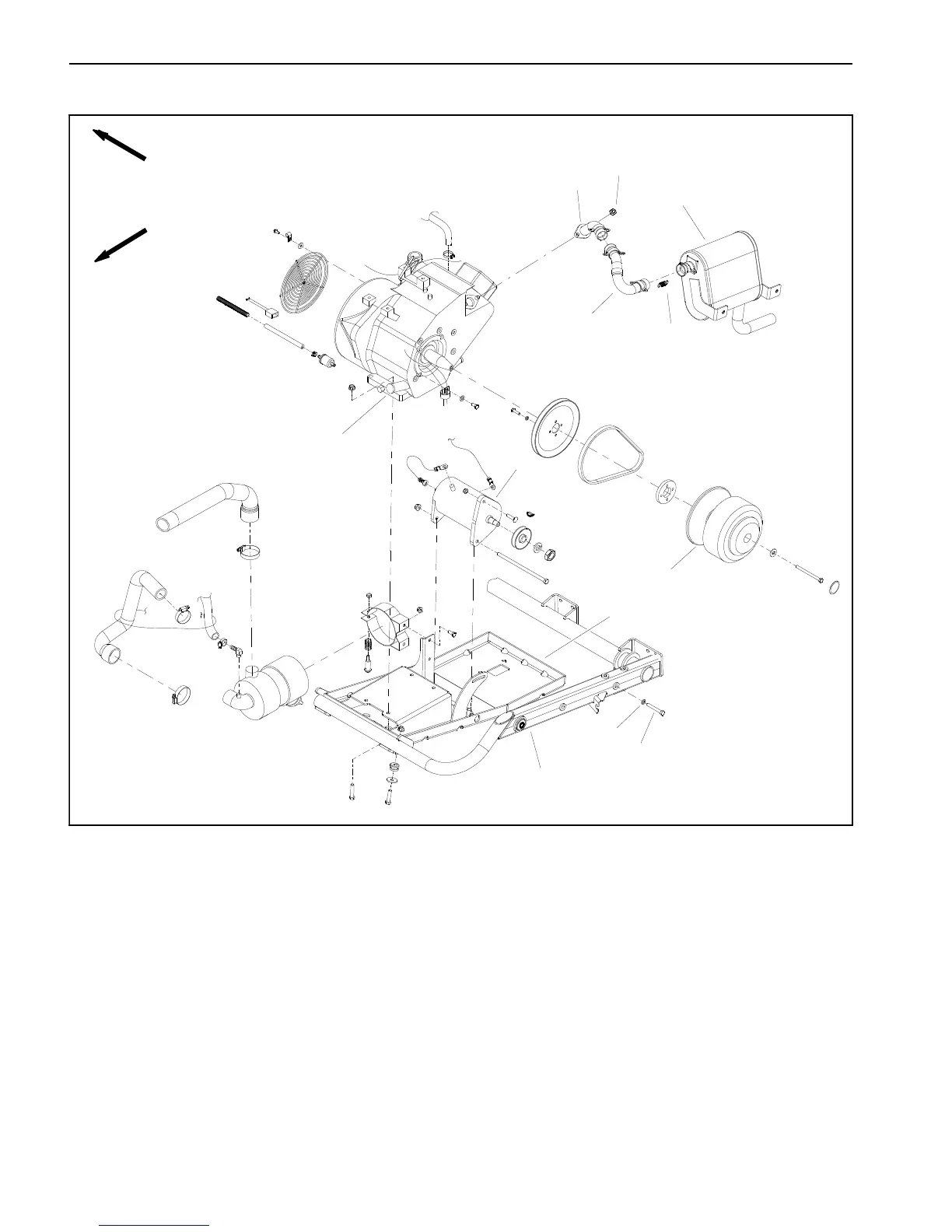

Figure 5
1. Engine
2. Coupler spring (4 used)
3. Exhaust manifold
4. Muffler
5. Exhaust coupler
6. Starter/generator
7. Drive clutch
8. Engine tray
9. Lock washer (2 used)
10. Cap screw (2 used)
11. Swing arm
12. Nut (2 used)
6
11
10
9
7
8
12
1
5
3
4
2
FRONT
RIGHT
