thatthecrateopeningunderthemowerdeckis
fullycovered.

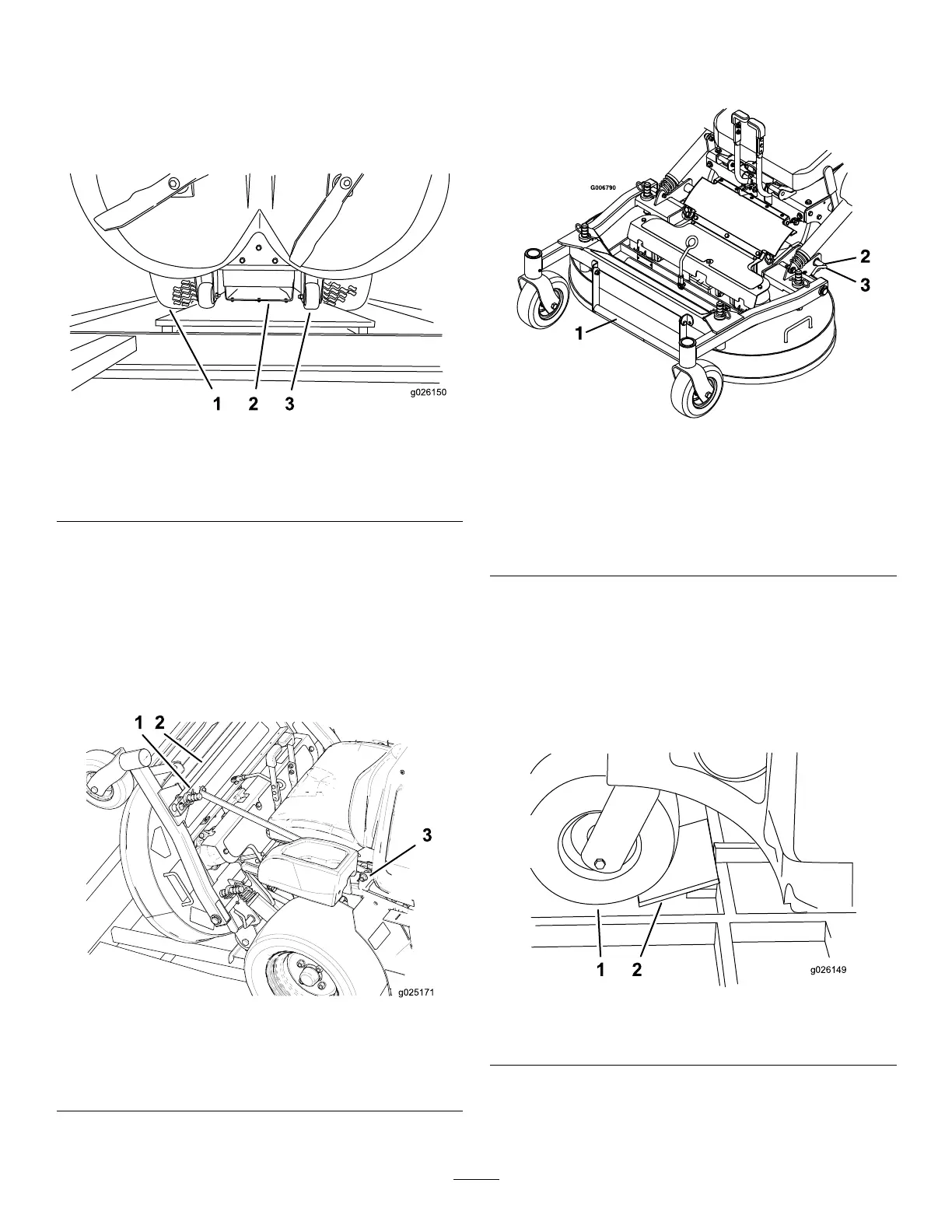

10.Placeaplywoodsheet(58.4cmx81.3cmor23
inchesx32inches),orsimilarsupport,overthe
openingtoprovidesupportforthedeckwhen
youdrivethemachineoffthecrate(Figure4).
g026150
Figure4
1.Drivetire3.Plywoodsheetunderthe
reardeckrollers
2.Dischargetube
11.Carefullyremovethejackstandsandlowerthe
machine.
12.Whilesupportingthemowerdeck,removeand
discardthe2sidestruts,mountingbrackets,
andtheirhardwareonbothsidesoftheseat
(Figure5).
13.Removeanddiscardthestrutlocatedbetween
thefrontdeck-supportpins(Figure5).
g025171
Figure5
1.Deck-supportpin
3.Sidestruthardware
2.Strutbetween
deck-supportpins
14.Withthedeck-lockingpinspulledoutinthe
unlockposition,carefullylowerthedeck(Figure
6).
g006790
Figure6
1.Decklifthandle
3.Pushthedeck-lockingpin
inandrotatetowardthe
fronttolock
2.Rotatethedeck-locking
pintowardtherearand
pulloutwardtounlock
15.Pushthedeck-lockingpinsinwardandrotate
themforwardtosecurelylockthedeckinthe
loweredposition.
16.Raisethemowerdecktothehighest
height-of-cutposition.
17.Installpiecesofwood,toformaramp,infrontof
thereartire(Figure7).
g026149
Figure7
1.Reartire2.Woodramp
18.Toformaramp,place2longpiecesofwoodin
frontofeachfront-castertire(Figure8).
