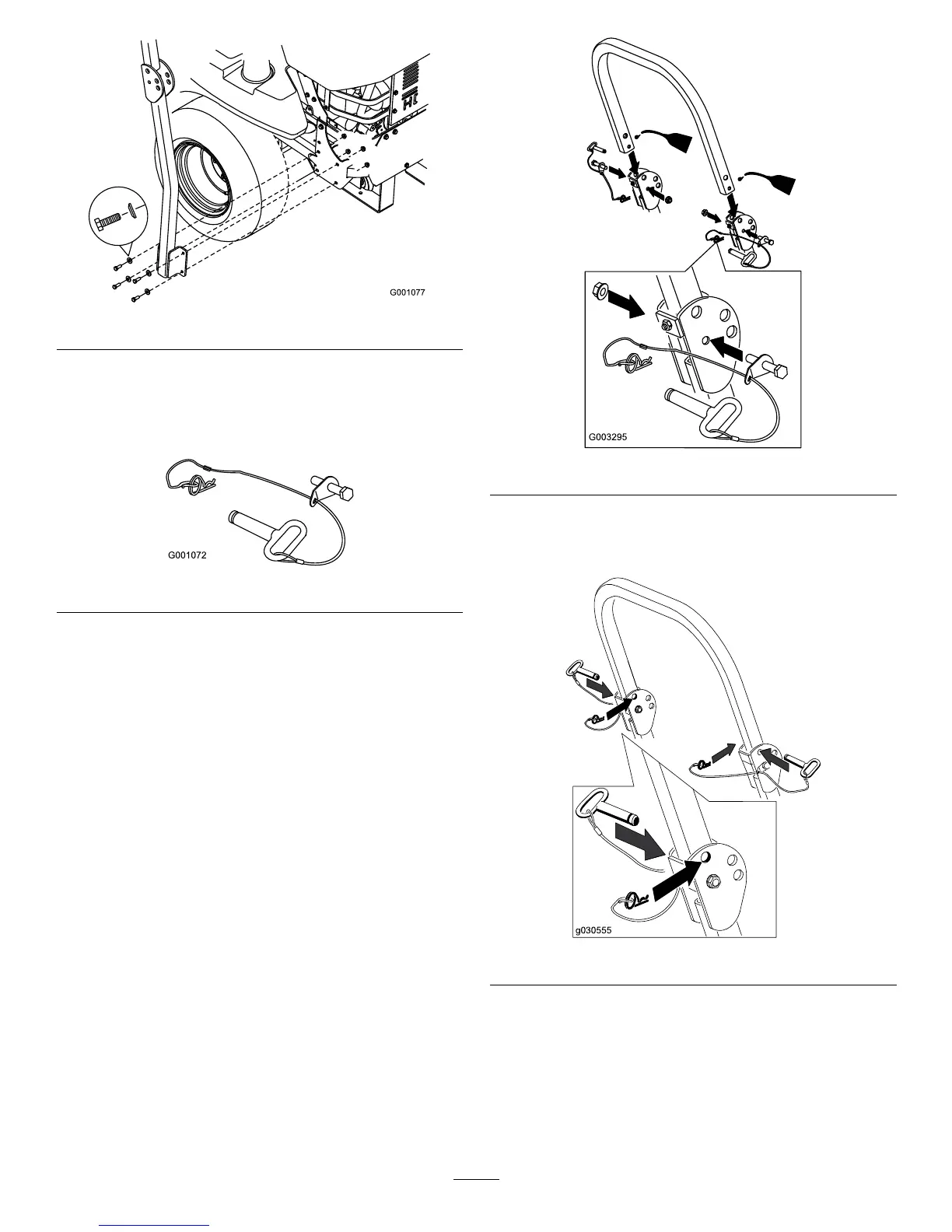

Figure26
2.Installthelanyardclipsontothelongbolts(1/2x
3-1/4inch).
Note:Makesurethebenttabpointstowardthehead
ofthebolt.
Figure27
3.Lightlyoiltheendsofthecenterrollbarsection.
4.Looselyinstallthecenterrollbarsectionusing2bolts
(1/2x3-1/4inch)and2angenuts(1/2inch).
Note:Installtheboltsfromtheoutsideoftherollbar.
Note:Installthelanyardtaborientedasshownin
Figure28andpointingforward.
Figure28
5.Raisetherollbarintotheuprightpositionandsecure
itwiththepinsandhairpincotterpinsfastenedtothe
lanyards.
g030555
Figure29
6.Torqueallofthelowerfasteners,attachedtothe
machineframe,to30ft-lb(40.7N-m).
7.Tightenthecenterroll-barbolts(1/2x3-1/4inch)so
itrotatesfreelywithsomeresistance.
Note:Nomorethanonethreadshouldbeexposed
outsidethenut.
