9.5 Analog Synchronisation
The Analog synchronisation options can be edited in the T-1 Cong tool.
These are based on the analog clock settings. The analog clock is the
highest function in the clock hierarchy, followed by MIDI than Link comes
last. If multiple clocks are connected to T-1 the hierarchy dictates the
primary lead clock used.
195
The T-1 Notebook : Reference & Guide
194
The T-1 Notebook : Reference & Guide
NOTES

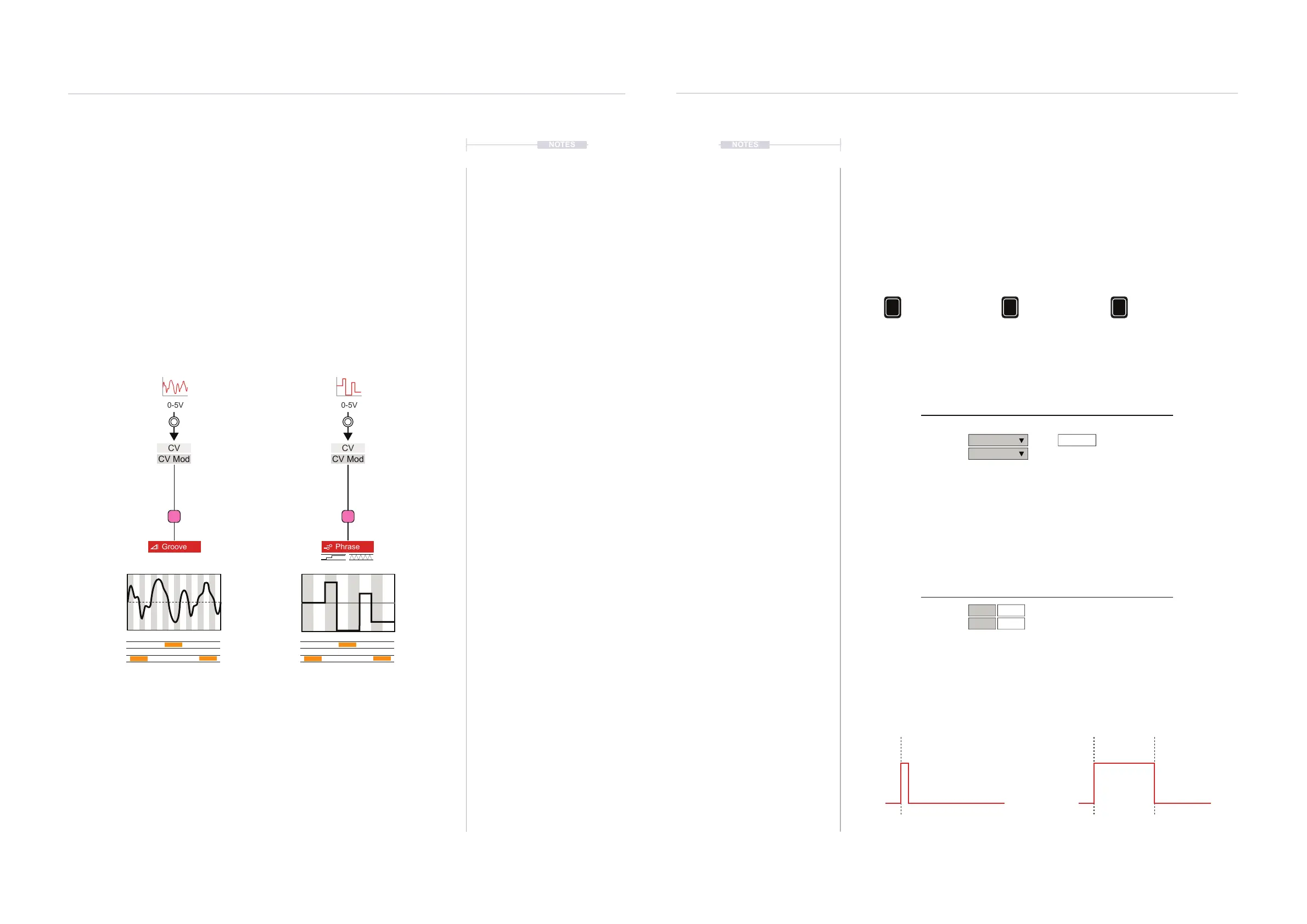

9.4 CV Mod Input
The CV Modulation input allows an external analog signal input to be used
to control several parameters within T-1. The input is expected to be a
range of 0-5V although the physical input is tolerant of voltages of up to
10V. This can be practically applied using an external LFO, Envelope,
sequencer or other CV source to generate a shape for controlling the T-1
parameters such as groove and phrase.
CV CV
CV Mod CV Mod
0-5V 0-5V
Groove Phrase
External Modulator External Modulator
e.g. Function Generator e.g. Function Generator
Analog Connectivity
9
Analog Connectivity
9
NOTES
The rate should be matched to the external device. The speed of the sequences
may be out of synchronisation i.e. Tempo if the clock rate is not matched. Try
different settings to synchronise but check manufacturers documentation rst. The
pulse width can be set between 15% and 85%. The default of 50% should be ok for
most circumstances but this can be adjusted if there are issues recognising the
clock from other devices.
The input and output labelled sync in and sync out ‘rst’ has two behavioural options
to select from:-
Reset:
Will trigger a reset pulse when the
pattern starts. This is default state.
Pattern Start Play
Stop
Run:
Gate signal. Gate high when T-1 is
playing. Gate low when stopped.
50%
24 PPQN
reset
reset
run
run
24 PPQN
Analog Clock
Analog Reset
Rate Pulse width
In
In
Out
Out
1 2 3
Clock Sync Hierarchy
T1 System
Analog Clock MIDI Clock Link
Sync In - Clk MIDI In Ableton Link WiFi
Analog Clock Sync
Rate & Pulse width
Example CV Mod Input
Groove & Phrase Options
The CV Inputs of the Groove and Phrase functions allow an external input to
generate a user groove template and custom cadence template respectively. The
CV In option should be selected in each of these functions and an external CV
modulation source connected.
Groove
1 2 3 4 5 6 7 8
Phrase
