9.2 Analog Hardware Connections
The rear of T-1 is the location for the input / output connections for external
gear. These operate as the physical interface between other hardware
devices and can be congured within the T-1 Cong utility.
Gate Outputs
a-b
CV Outputs
a-b-c-d
Congurable as Gates
Sync Out
Clock & Reset
Reset or Run Cong
Sync In
Clock & Reset
CV Mod Input
Modulation ie Groove, Phrase
T-1 Cong
CV/Gate Page

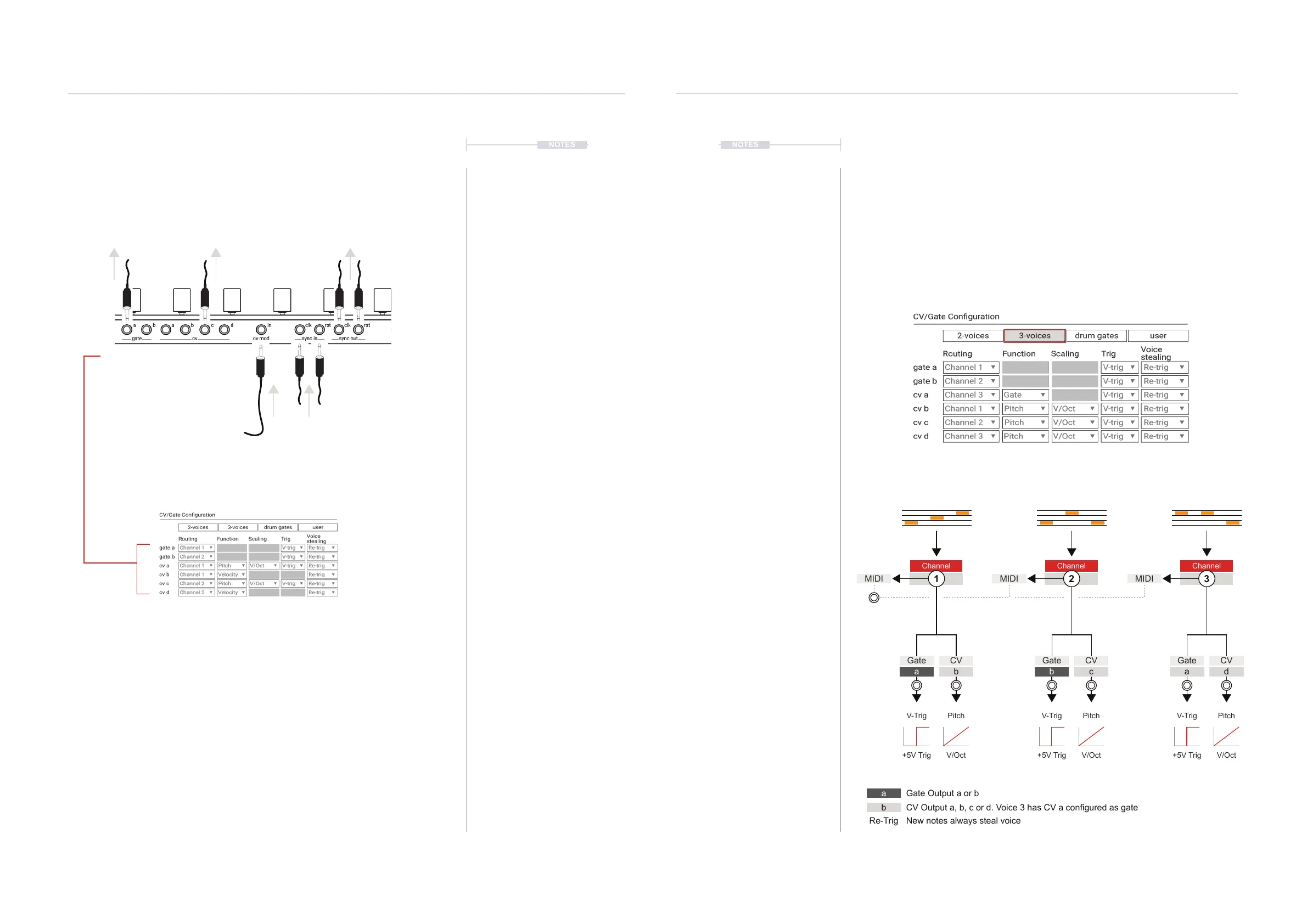

The CV and Gate outputs are congurable in the CV/Gate page of the T-1 Cong tool. The
Outputs are linked to MIDI Channels. Whatever is sent to MIDI (CHANNEL) set on the T-1
hardware will also be output as assigned for the specic CV and Gate.
Pitch out at 0V is calibrated to C3
Analog Connectivity
9
Analog Connectivity
9
NOTES
9.3 CV & Gate Output Congurations
The CV and Gate outputs are congurable within the T-1 Cong tool. Once
set these may not need further changes, however this will also depend on
the connected devices and set up. There are 4 preset congurations
available in the T-1 Cong Tool as a starting point. Note that CV can be
congured as gates, but gates cannot be congured as CV.
Channel Channel Channel
Gate Gate Gate
a
a Gate Output a or b
b a
CV CV CV
MIDI MIDI MIDI
b
b
Re-Trig
CV Output a, b, c or d. Voice 3 has CV a congured as gate
New notes always steal voice
c d
V-Trig V-Trig V-Trig
+5V Trig +5V Trig +5V Trig
Pitch Pitch Pitch
V/Oct V/Oct V/Oct
Example 3-Voice Conguration
T1 Cong Tool - CV/Gate Page
Voice 1
Track
Voice 2
Track
Voice 3
Track
1 2 3
