Toshiba 20AF45 - Waveforms: Deflection, Sound, and Video; Deflection, Sound, and Comb;Filter;AV Waveforms; CRT Signal Waveforms

WAVEFORMS
H-2
20AF45/20AF45C

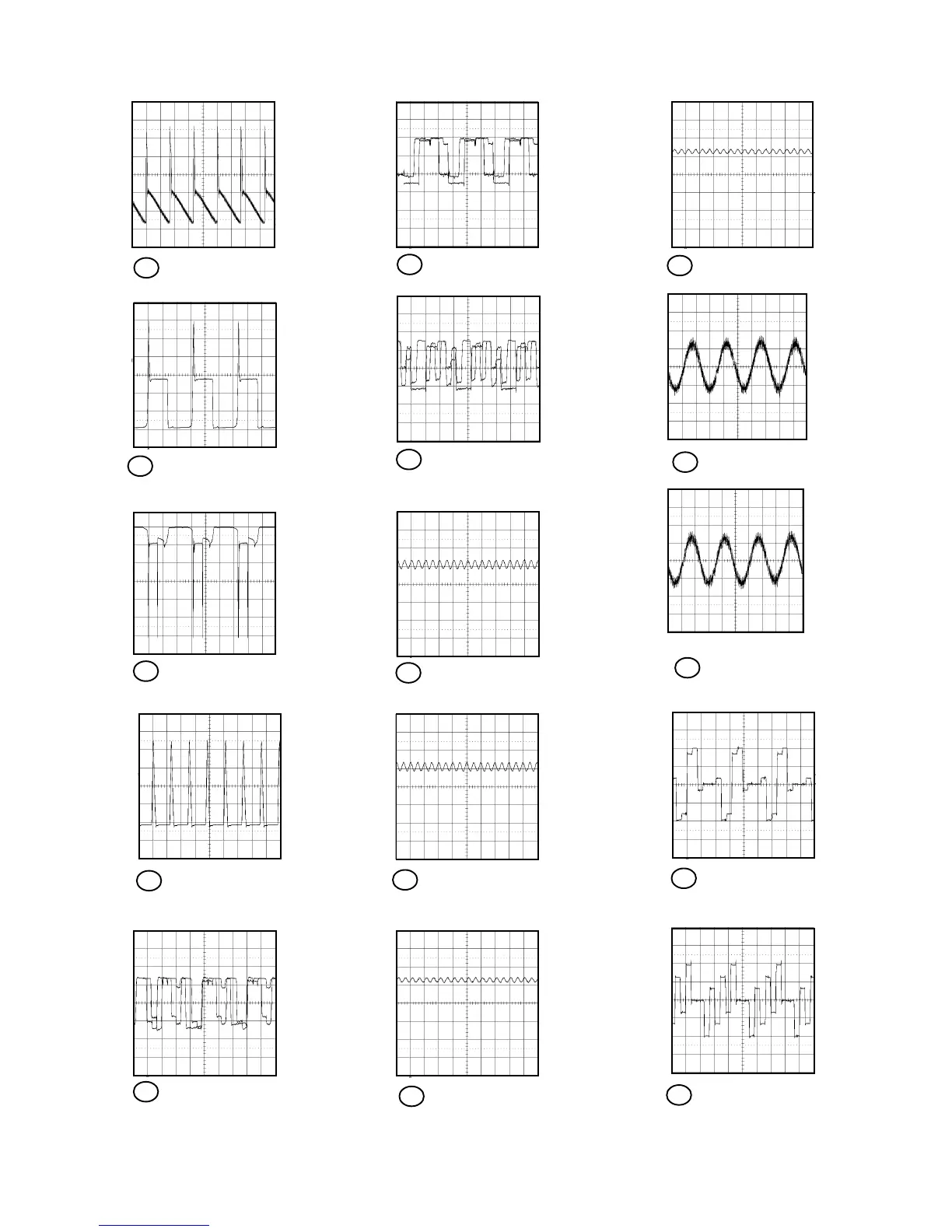

The following waveforms were measured at the point of the corresponding
balloon number in the schematic diagram.
NOTE:
18 10V 10ms/div
19 20V 20µs/div
20 2V 20µs/div
21 200V 50µs/div
37 50V 20µs/div
38 50V 20µs/div
39 50V 20µs/div
SOUND
22 2V 5ms/div
23 2V 5ms/div
24 2V 5ms/div
25 2V 5ms/div
26 0.5V 1ms/div
27 0.5V 1ms/div
28 200mV 20µs/div
29 200mV 20µs/div
COMB/FILTER/AV
CRT
