English - 12 -
(**) Limited Models Only

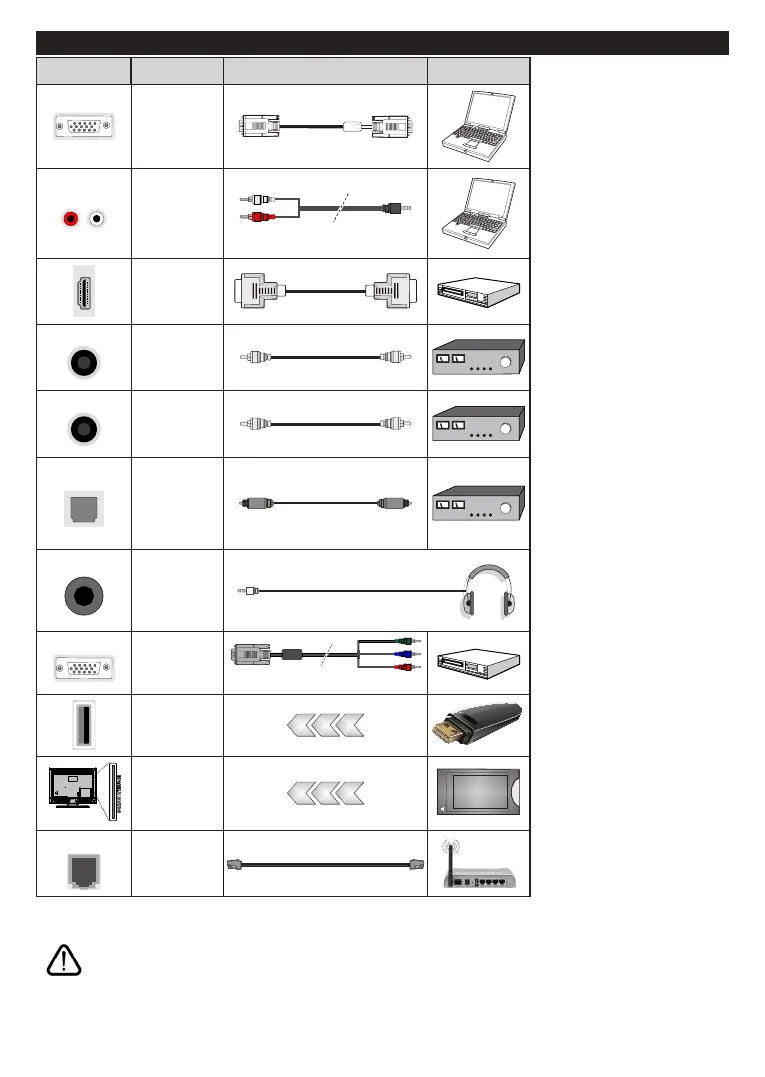

Connections
Connector Type Cables Device
VGA
Connection
(back)
AUDIO IN
YPbPr/PC
Audio
Connection
(back)
YPbPr/PC Audio Cable
HDMI
Connection
(side&back)
SPDIF
SPDIF
(Coaxial Out)
Connection
(back)
SPDIF(**)
SPDIF
(Coaxial Out)
Connection
(back)
SPDIF(**)
SPDIF
(Optical Out)
Connection
(back)
HEADPHONE
Headphone
Connection
(side)
YPBPR
YPbPr Video
Connection
(back)
YPbPr to VGA Connection Cable
USB
Connection
(side)
CI
Connection
(side)
CAM
module
LAN
Ethernet
Connection
(back)
LAN / Ethernet Cable
See the illustrations on the left
side. You can use YPbPr to VGA
cable to enable YPbPr signal via
VGA input. You cannot use VGA
and YPbPr at the same time. To
need to use the back audio inputs
with a YPbPr/PC audio cable for
audio connection. When using
the wall mounting kit (available
that you plug all your cables into
the back of the TV before mounting
on the wall. Insert or remove the
CI module only when the TV is
SWITCHED OFF. You should refer
to the module instruction manual
for details of the settings. The/
Each USB input of your TV supports
devices up to 500mA. Connecting
devices that have current value
above 500mA may damage your TV.
When connecting equipment using a
frequency have to use
a high speed shielded (high grade)
HDMI cable with ferrites.
any connection. After the connection is done, you can turn on the units and use them.
