Toshiba 50L2333D User Manual

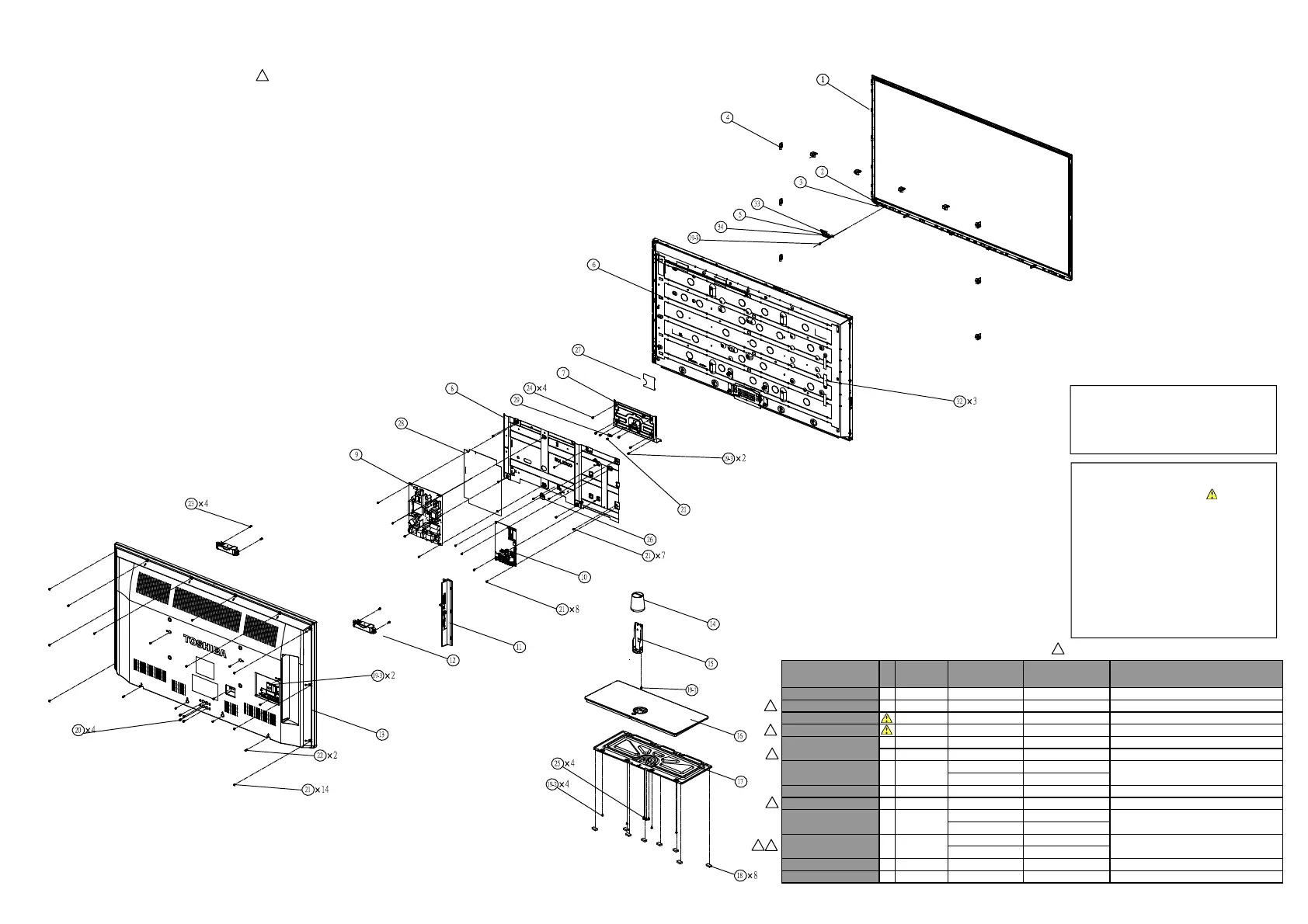

Exploded View
50L2333D/50L2331D/50L2337D
50L2333D
(
G
)
/
(
B
),
50L2331D
(
G
),
50L2337D
(
G
)(
B
)
No. Location
Toshiba
Service Par
t
ODM Partne
r
Part
Description
1+2+3
E100 75033887 13EB-43B0601 FRONT COVER (FRONT BEZEL)
5
E106 75034305 13EB-43Q0W11 SUPPORT FOR SMALL BOARD
6
E300 75032896 LCD PANEL, LG, LC500DUE-SFR1
9
E250 75033897 0433-008C000 POWER BOARD ASSY
E200 75033896 9C-EB40M01H0 MAIN BOARD ASSY
E201 75037598 9C-EB40M0330 MAIN BOARD ASSY, WITHOUT TUNER
75033892 13EB-43B0H01
75033893 13EB-43B0A01
12
E330 75029565 04A4-012X000 SPEAKER (LEFT AND RIGHT)
13
E110 75035513 13EB-43Q1211 BACK COVER ASSY
75033894 13EB-43B0901
75033895 13EB-43B0K01
75035511 13EB-43B0C01
75036649 13EB-43B0P11
33
E260 75033758 9C-EB40S0250 LED BOARD ASSY
34
E270 75033759 9C-EB40S0270 IR BOARD ASSY
16+17+18+(19-2)
E120 STAND ASSY
10
11
E140 SIDE KEY BEZEL ASSY
14+15
E150 NECK ASSY
SAFETY PRECAUTION
The parts identified by mark
are critical for safety. Replace only
with part number specified. The
mounting position of replacement
is to be identical with originals.
The substitute replacement parts
which do not have the same safety
characteristics as specified in the
parts list may create shock, fire or
other hazards.
1
1
1
1
1
2
2
2
Note:
Please see PPL put on Web-
PRESS for the latest information or
other parts.

Toshiba 50L2333D Specifications

General

Brand	Toshiba
Model	50L2333D
Category	LCD TV
Language	English
