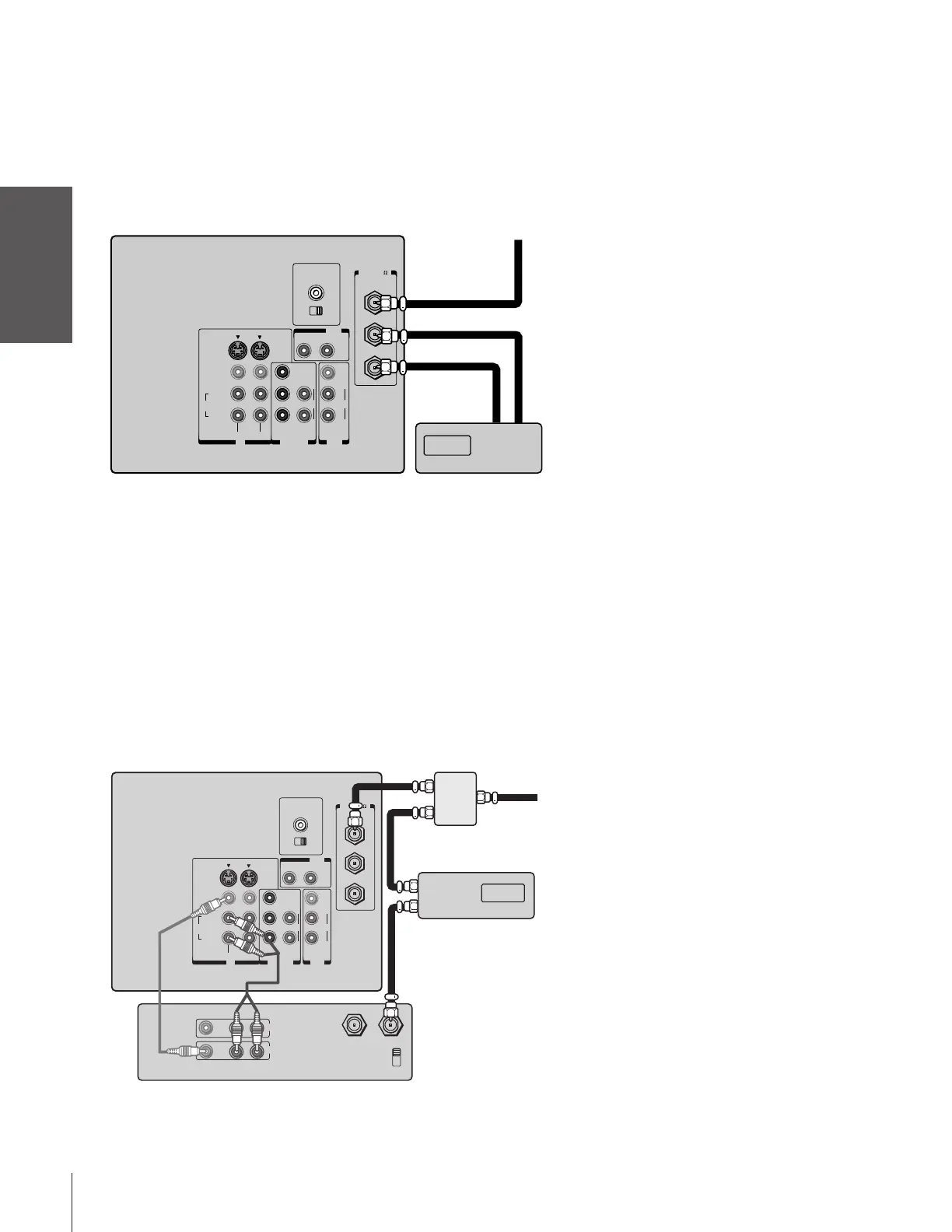

Connecting a cable converter box
This connection allows you to watch cable and premium channels.
To use the TV’s features, select ANT-1. To view premium channels,
select ANT-2 and tune the TV to channel 3 or 4 (whichever channel is
vacant in your area), then use the converter box to change channels.
You will need:
• two coaxial cables
ANT
(
75
)
ANT-1
CHANNEL IN
ON OFF
OUT
RL
OUT
VIDEO
VAR
AUDIO
L/
MONO
IN
DVD IN
L
R
C R
C B
Y
L/
MONO
AUDIO
R
S-VIDEO
VIDEO
OUT
ANT-2
AUDIO CENTER
VIDEO 1 VIDEO 2
COLOR
STREAM
INPUT
AUDIO
R
AUDIO
INOUT
Cable converter box
Connecting a cable converter box and a VCR
This connection allows you to watch and record basic and premium
cable channels, watch videotapes, and record one channel while
watching another channel. To use the TV’s features, select ANT-1. To
view premium channels or record with the VCR, select ANT-2,
change the TV channel to 3 or 4 (whichever channel is vacant in your
area), and then use the converter box to change channels.
You will need:
• one two-way signal splitter
• three coaxial cables
• one pair of audio cables (only one cable for a mono VCR)
• one video cable
IN from ANT
VIDEO
AUDIO
OUT to TV
CH 3
LR
LR
CH 4
IN
OUT
ANT
(
75
)
ANT-1
CHANNEL IN
ON OFF
OUT
RL
OUT
VIDEO
VAR
AUDIO
L/
MONO
IN
DVD IN
L
R
C R
C B
Y
L/
MONO
AUDIO
R
S-VIDEO
VIDEO
OUT
ANT-2
AUDIO CENTER
VIDEO 1 VIDEO 2
COLOR
STREAM
INPUT
AUDIO
R
AUDIO
OUT
IN
Cable converter box
2-way
signal
splitter
Note:
When you use a converter box with your TV,
there may be features that you cannot
program using the remote control, such as
programming your favorite channels, labeling
channels, and locking channels.
Note:
If you have a mono VCR, connect L/Mono to
VCR Audio OUT using only one audio cable.
If you have an S-VHS VCR, use the S-video
connections and omit the video cable. Do not
connect the video cable and the S-video
cable to Video-1 simultaneously.
When you use a converter box with your TV,
there may be features that you cannot
program using the remote control, such as
programming your favorite channels, labeling
channels, and locking channels.
TV From Cable
TV
From Cable
Stereo VCR
