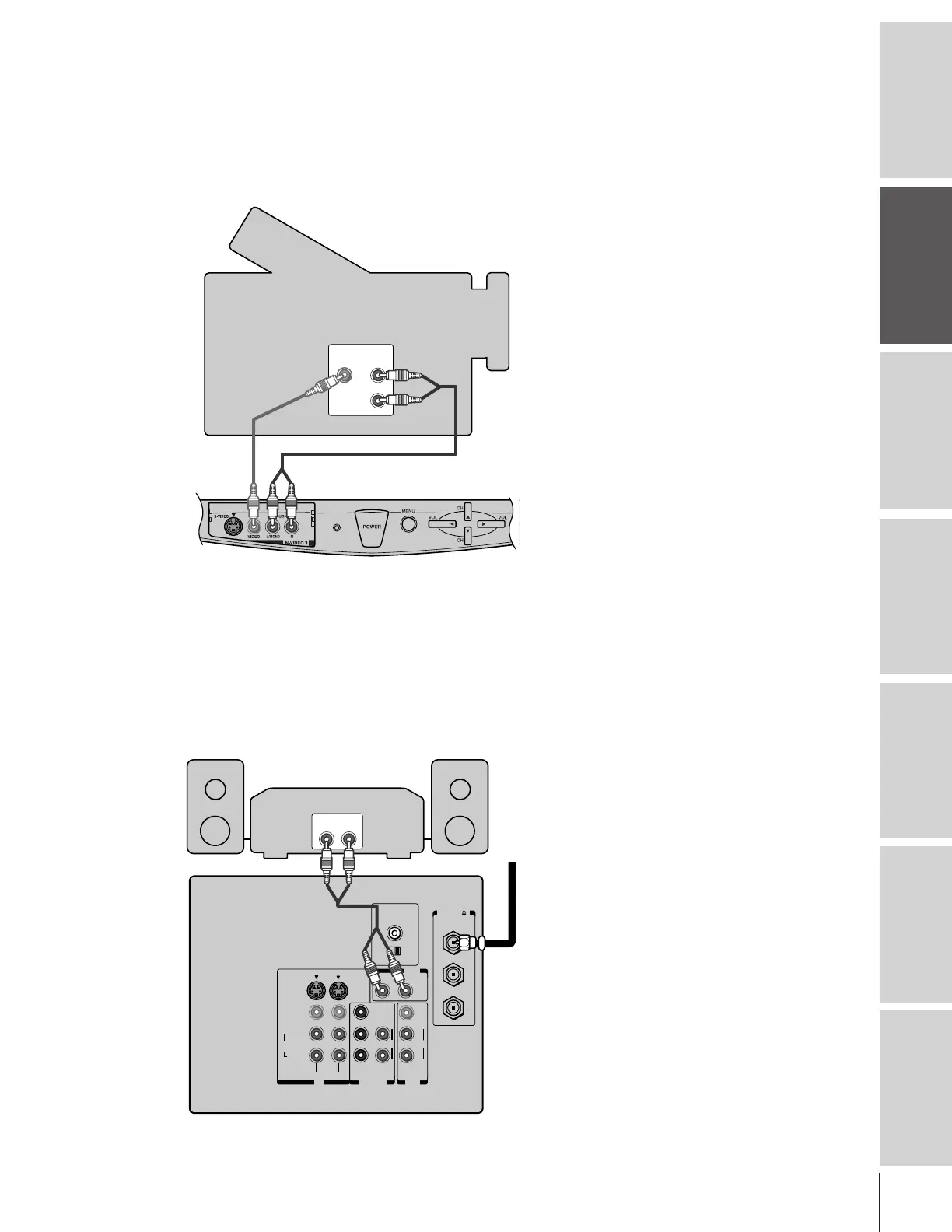

Connecting a camcorder
This connection allows you to watch video materials recorded on a
camcorder.
You will need:
• one pair of audio cables
• one video cable
VIDEO
AUDIO
OUT
L
R
Connecting an audio system
This connection allows you to use an audio amplifier to adjust the
audio level. This also allows you to use external speakers.
To control the audio, turn on the TV and the stereo amplifier, then
turn off the built-in speakers (see “Turning off the built-in speakers”
on page 40).
You will need one pair of audio cables.
ANT
(
75
)
ANT-1
CHANNEL IN
ON OFF
OUT
RL
OUT
VIDEO
VAR
AUDIO
L/
MONO
IN
DVD IN
L
R
CR
CB
Y
L/
MONO
AUDIO
R
S-VIDEO
VIDEO
OUT
ANT-2
AUDIO CENTER
VIDEO 1 VIDEO 2
COLOR
STREAM
INPUT
AUDIO
R
AUDIO
LINE IN
LR
Caution:
If you are using an S-VHS camcorder with an
S-video output, connect this to the S-video
input on the TV and omit the video cable.
Do not connect the video cable and the
S-video cable to Video-3 simultaneously.
TV
Camcorder
Note:
To hear the audio, the volume of both the TV
and the external audio amplifier must be set
above minimum (zero). For example, if you
set the volume of the TV to zero, you will not
be able to hear any audio, even if you adjust
the volume of the amplifier to its maximum
setting.
Amplifier
From Cable, Cable Box
or Antenna
TV
To Next Page
