Toshiba 55A10 User Manual

Introduction
Connecting
your TV
Using the
Remote Control
Setting up
your TV
Using the TV’s
Features
Appendix
Index
8
ANT
(
75
)
ANT-1
CHANNEL IN
ON OFF
OUT
RL
OUT
VIDEO
VAR
AUDIO
L/
MONO
IN
DVD IN
L
R
C R
C B
Y
L/
MONO
AUDIO
R
S-VIDEO
VIDEO
OUT
ANT-2
AUDIO CENTER
VIDEO 1 VIDEO 2
COLOR
STREAM
INPUT
AUDIO
R
AUDIO
IN from ANT
VIDEO AUDIO
OUT to TV
CH 3
LR
CH 4
IN
OUT
VIDEO
OUT
S-VIDEO
AUDIO
COLOR STREAM
OUT
L
R
L
R
C
R C B Y

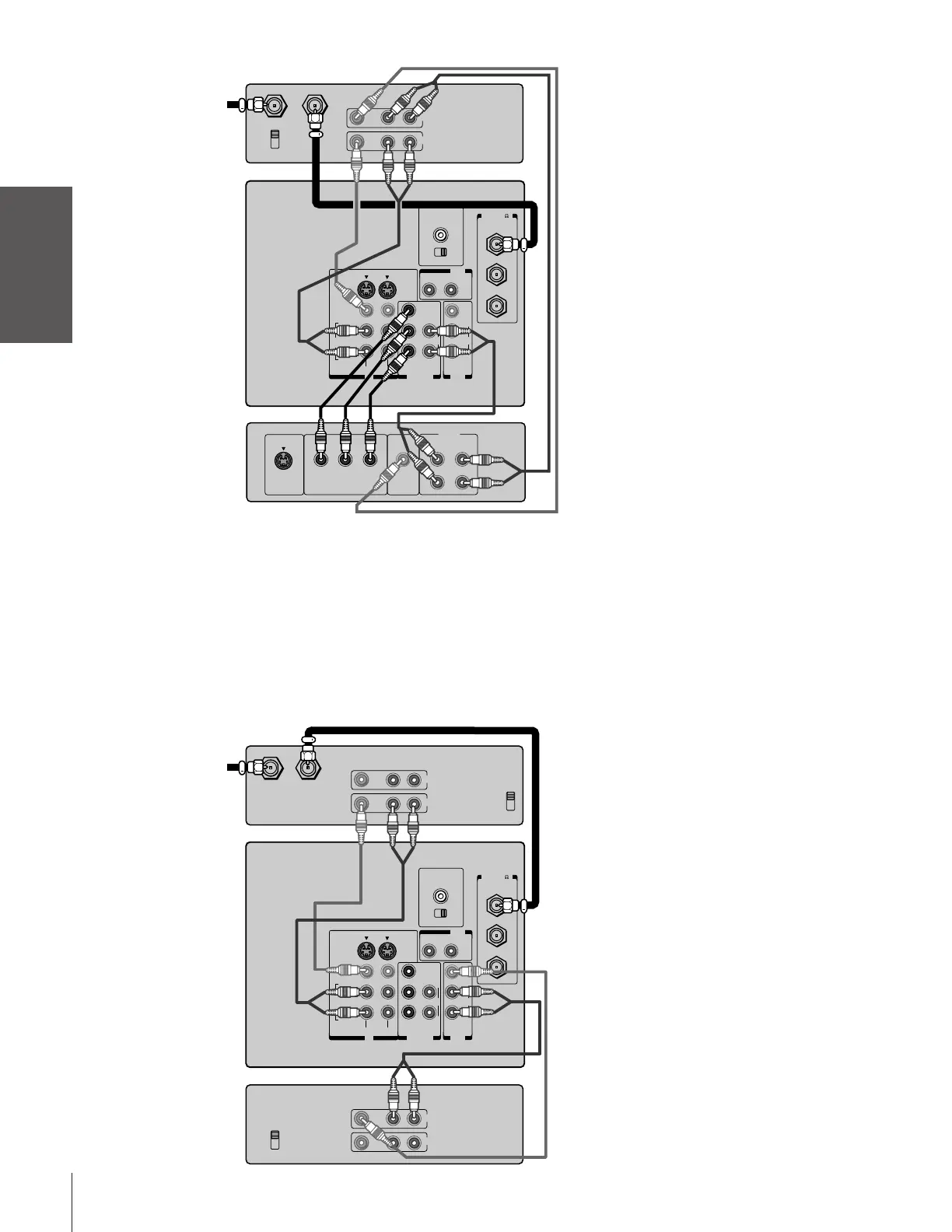

Connecting two VCRs
This connection allows you to record (dub/edit) from one VCR to
another VCR while watching a video program. You also will be able to
record from one TV channel while watching another channel.
You will need:
• one coaxial cable
• two pairs of audio cables (two single cables for mono VCRs)
• two video cables
ANT
(
75
)
ANT-1
CHANNEL IN
ON OFF
OUT
RL
OUT
VIDEO
VAR
AUDIO
L/
MONO
IN
DVD IN
L
R
C R
C B
Y
L/
MONO
AUDIO
R
S-VIDEO
VIDEO
OUT
ANT-2
AUDIO CENTER
VIDEO 1 VIDEO 2
COLOR
STREAM
INPUT
AUDIO
R
AUDIO
VIDEO AUDIO
CH 3
LR
CH 4
IN
OUT
VIDEO AUDIO
CH 3
LR
CH 4
IN from ANT OUT to TV
IN
OUT
Caution:
To play from the DVD, the DVD and TV must
use ColorStream connections. To record from
the DVD, the VCR must select Line IN.
The unauthorized recording of television
programs, videotapes and other materials
may infringe upon the provisions of copyright
laws.
Caution:
Do not connect one VCR to the output and
input jacks on the TV at the same time. If you
are using an S-VHS VCR, use the S-video
connections and omit the video cable. Do not
connect the video cable and the S-video
cable to Video-1 simultaneously.
The unauthorized recording of television
programs, videotapes and other materials
may infringe upon the provisions of copyright
laws.
Note:
• To dub or edit, VCR 2 must select Line IN,
and the TV must select Video-1.
*
The Audio OUT jacks can output the sound
of either the main or PIP picture (see
“Selecting the Audio OUT sound” on
page 41).
**
The Video OUT jack does not output the
PIP picture.
Stereo VCR
From Antenna
TV
DVD Player With ColorStream
®
VCR1
From Antenna
TV
VCR2
**
*
