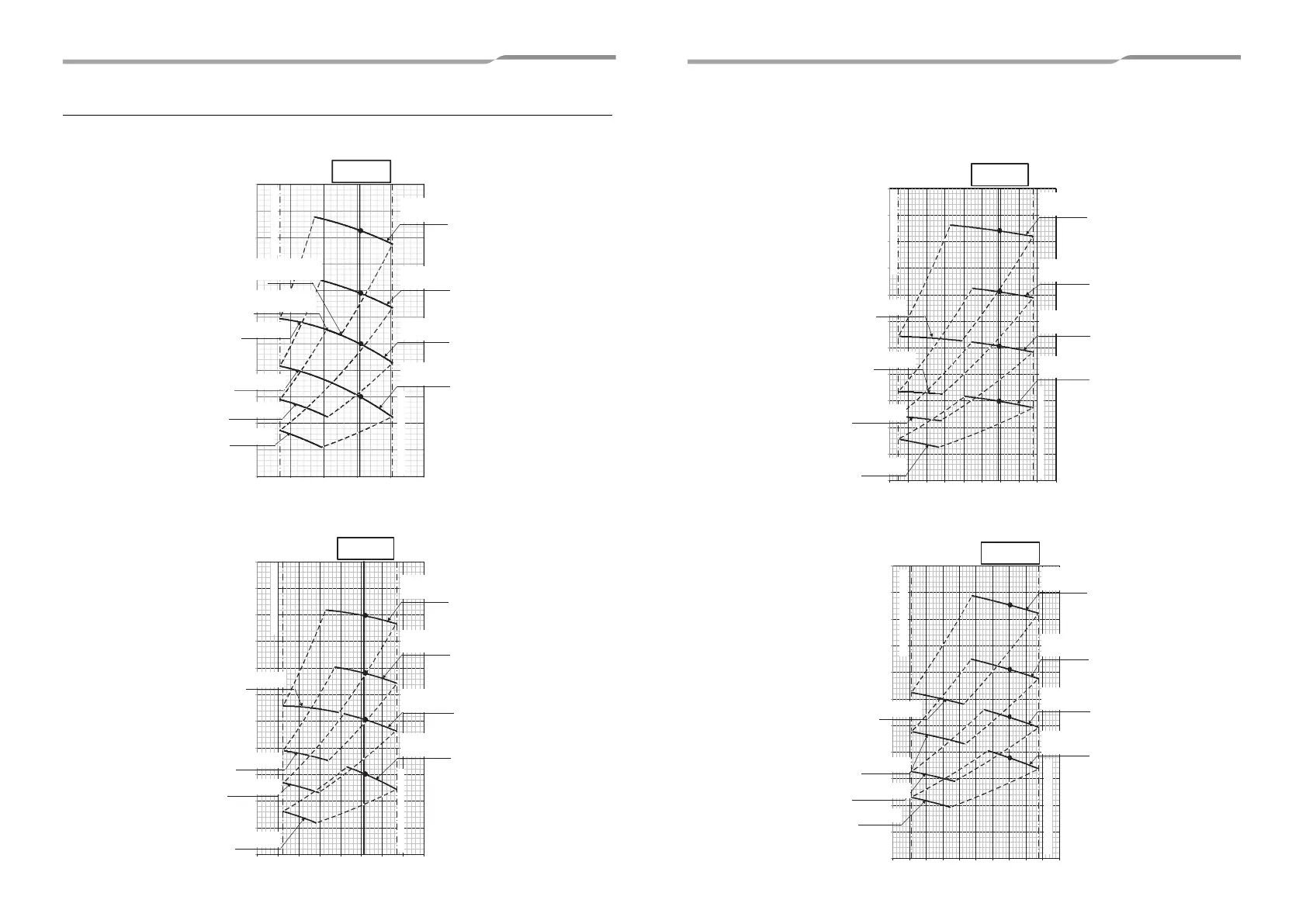

 Fan characteristics
0.000
0.050
0.100
0.150
0.200
0.250
0.300
0.350
0.400
0.450
0.500
0.550
150 200 250 300 350 400
MMD-AP0074BH2UL-1, MMD-AP0094BH2UL-1
MMD-AP0124BH2UL-1
<Back air intake>
Standard static pressure
Fan speed: High
Min Air flow point
Air flow rate (cfm)
External static pressure (in.WG)
High static pressure 3
(About 0.46 in.WG)
Fan speed: High
High static pressure 1
(About 0.35 in.WG)
Fan speed: High
Standard static pressure
(About 0.25 in.WG)
Fan speed: High
Low static pressure
(About 0.15 in.WG)
Fan speed: High
High static pressure 3
Fan speed: Low
High static pressure 1
Fan speed: Low
Standard static pressure
Fan speed: Low
Low static pressure
Fan speed: Low
Standard Air flow
304cfm
Air flow rate lower limit
Air flow rate upper limit
High static pressure 3
Fan speed: Low
Max Air flow point
MMD-AP0154BH2UL-1, MMD-AP0184BH2UL-1
0.000
0.050
0.100
0.150
0.200
0.250
0.300
0.350
0.400
0.450
0.500
0.550
300 350 400 450 500 550 600 650 700
Air flow rate (cfm)
External static pressure (in.WG)
High static pressure 3
(About 0.46 in.WG)
Fan speed: High
High static pressure 1
(About 0.35 in.WG)
Fan speed: High
Standard static pressure
(About 0.25 in.WG)
Fan speed: High
Low static pressure
(About 0.15 in.WG)
Fan speed: High
High static pressure 1
Fan speed: Low
Standard static pressure
Fan speed: Low
Low static pressure
Fan speed: Low
Standard Air flow
556cfm
Air flow rate lower limit
Air flow rate upper limit
High static pressure 3
Fan speed: Low
0.000
0.050
0.100
0.150
0.200
0.250
0.300
0.350
0.400
0.450
0.500
0.550
400 450 500 550 600 650 700 750 800 850
MMD-AP0214BH2UL-1, MMD-AP0244BH2UL-1
MMD-AP0304BH2UL-1
Air flow rate (cfm)
External static pressure (in.WG)
High static pressure 3
(About 0.46 in.WG)
Fan speed: High
High static pressure 1
(About 0.35 in.WG)
Fan speed: High
Standard static pressure
(About 0.25 in.WG)
Fan speed: High
Low static pressure
(About 0.15 in.WG)
Fan speed: High
High static pressure 3
Fan speed: Low
High static pressure 1
Fan speed: Low
Standard static pressure
Fan speed: Low
Low static pressure
Fan speed: Low
Standard Air flow
694cfm
Air flow rate lower limit
Air flow rate upper limit
0.000
0.050
0.100
0.150
0.200
0.250
0.300
0.350
0.400
0.450
0.500
0.550
650 700 750 800 850 900 950 1000 1050 1100 1150
MMD-AP0364BH2UL-1
Air flow rate (cfm)
External static pressure (in.WG)
High static pressure 3
(About 0.46 in.WG)
Fan speed: High
High static pressure 1
(About 0.35 in.WG)
Fan speed: High
Standard static pressure
(About 0.25 in.WG)
Fan speed: High
Low static pressure
(About 0.15 in.WG)
Fan speed: High
High static pressure 3
Fan speed: Low
High static pressure 1
Fan speed: Low
Standard static pressure
Fan speed: Low
Low static pressure
Fan speed: Low
Standard Air flow
1000cfm
Air flow rate lower limit
Air flow rate upper limit
13-EN 14-EN
