Toshiba DVR80KF Service Manual

1-14-14
NOTE: BOARD MEANS PRINTED CIRCUIT BOARD.
E9TK5SCF

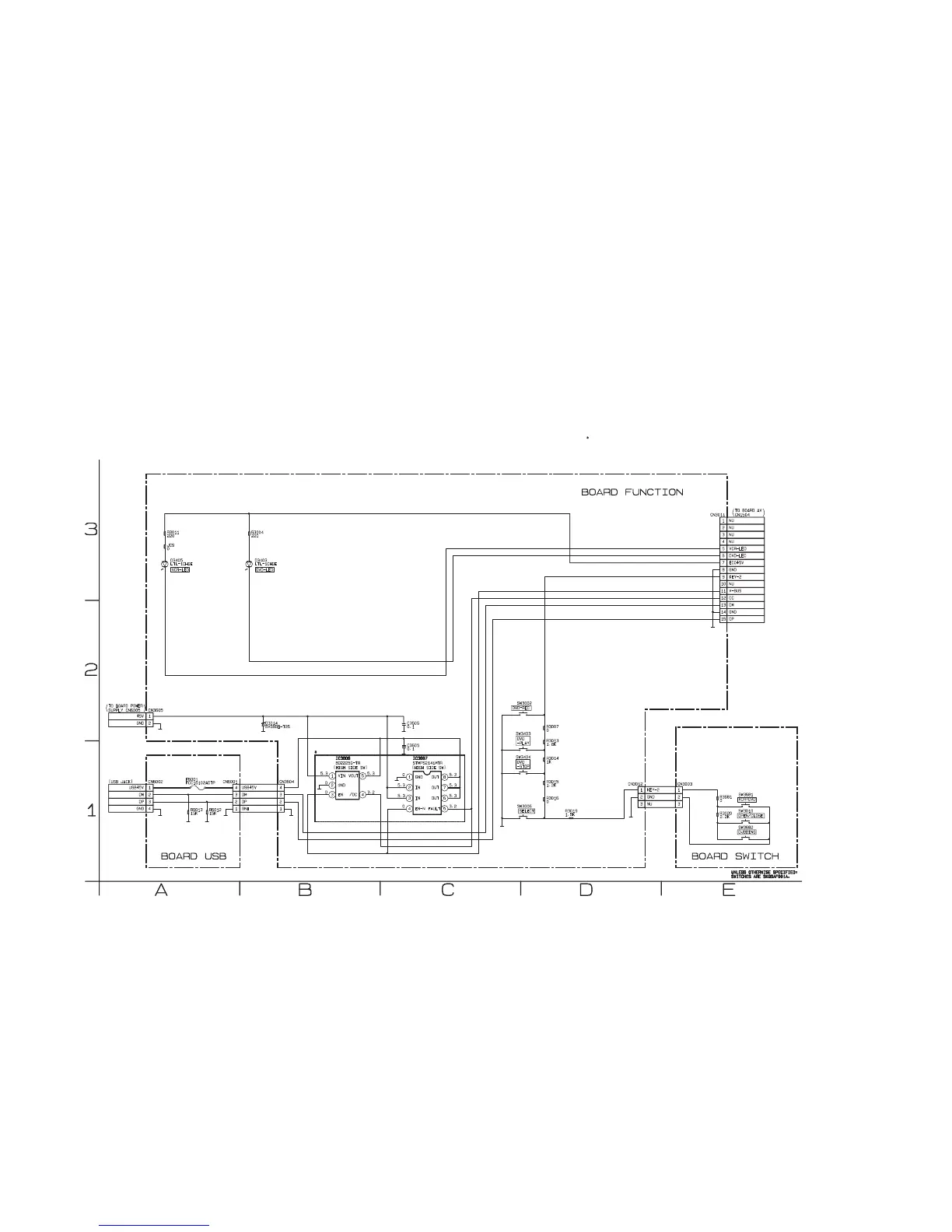

FUNCTION, SWITCH & USB Schematic Diagram < VCR Section >
CAUTION !
For continued protection against fire hazard,
replace only with the same type fuse(F6001).
NOTE:
Either IC3607 or IC3608 is used for BOARD FUNCTION.
