1-14-16
NOTE: BOARD MEANS PRINTED CIRCUIT BOARD.
E9TK5SCD1

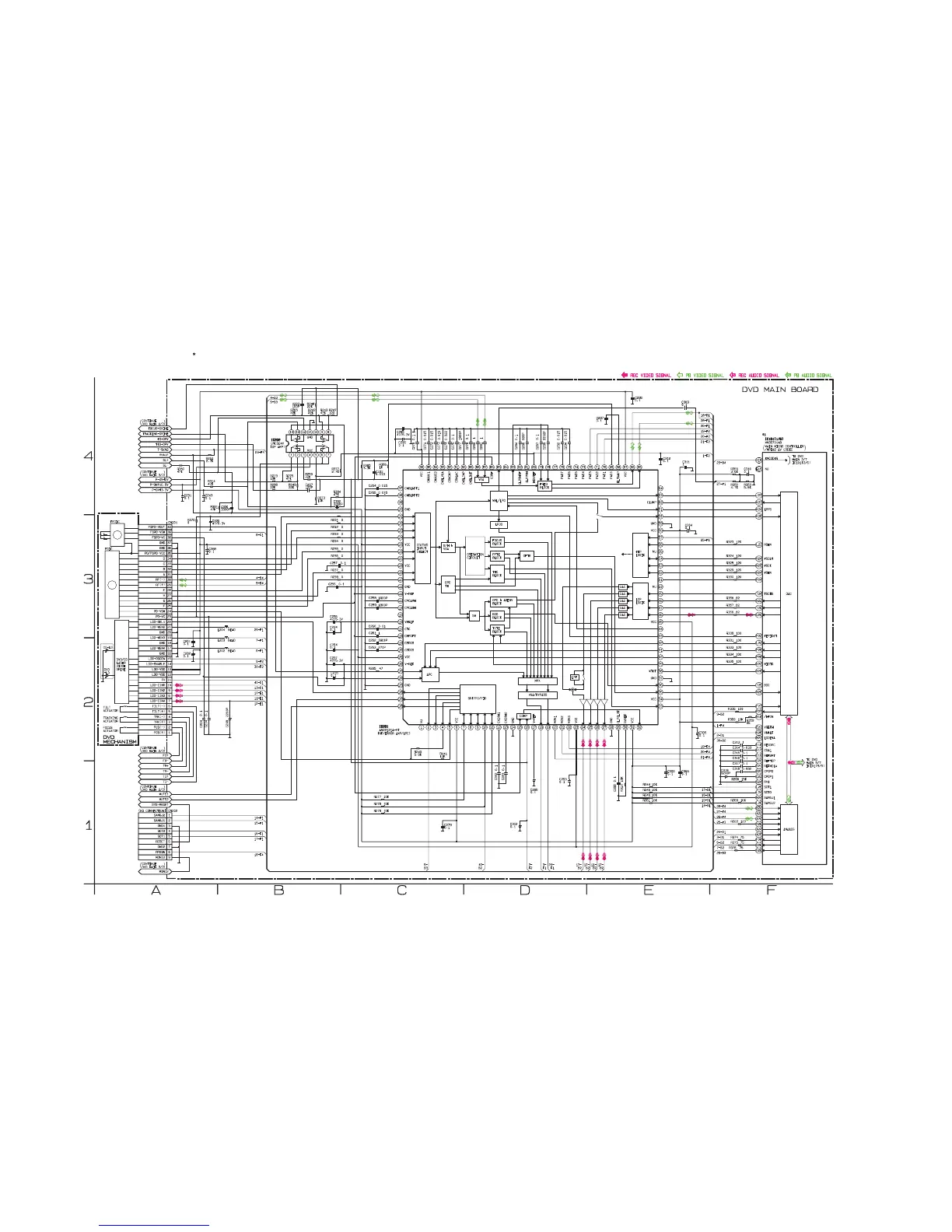

DVD MAIN 1/7 Schematic Diagram < DVD Section >
The order of pins shown in this diagram is different from that of actual IC101.
IC101 is divided into six and shown as IC101 (1/6) ~ IC101 (6/6) in this DVD Main Schematic Diagram Section.
1 NOTE:
