e-STUDIO2006/2306/2506/2007/2307/2507/2303A/2303AM/2803AM/2309A/2809A
© 2013-2017 TOSHIBA TEC CORPORATION All rights reserved
REPLACEMENT OF PC BOARDS
9 - 6
9.2.3 HVPS
(1) Take off the right front cover.
( P. 4-2 "4.1.4 Right front cover")
(2) Take off the left front cover.
( P. 4-3 "4.1.5 Left front cover")

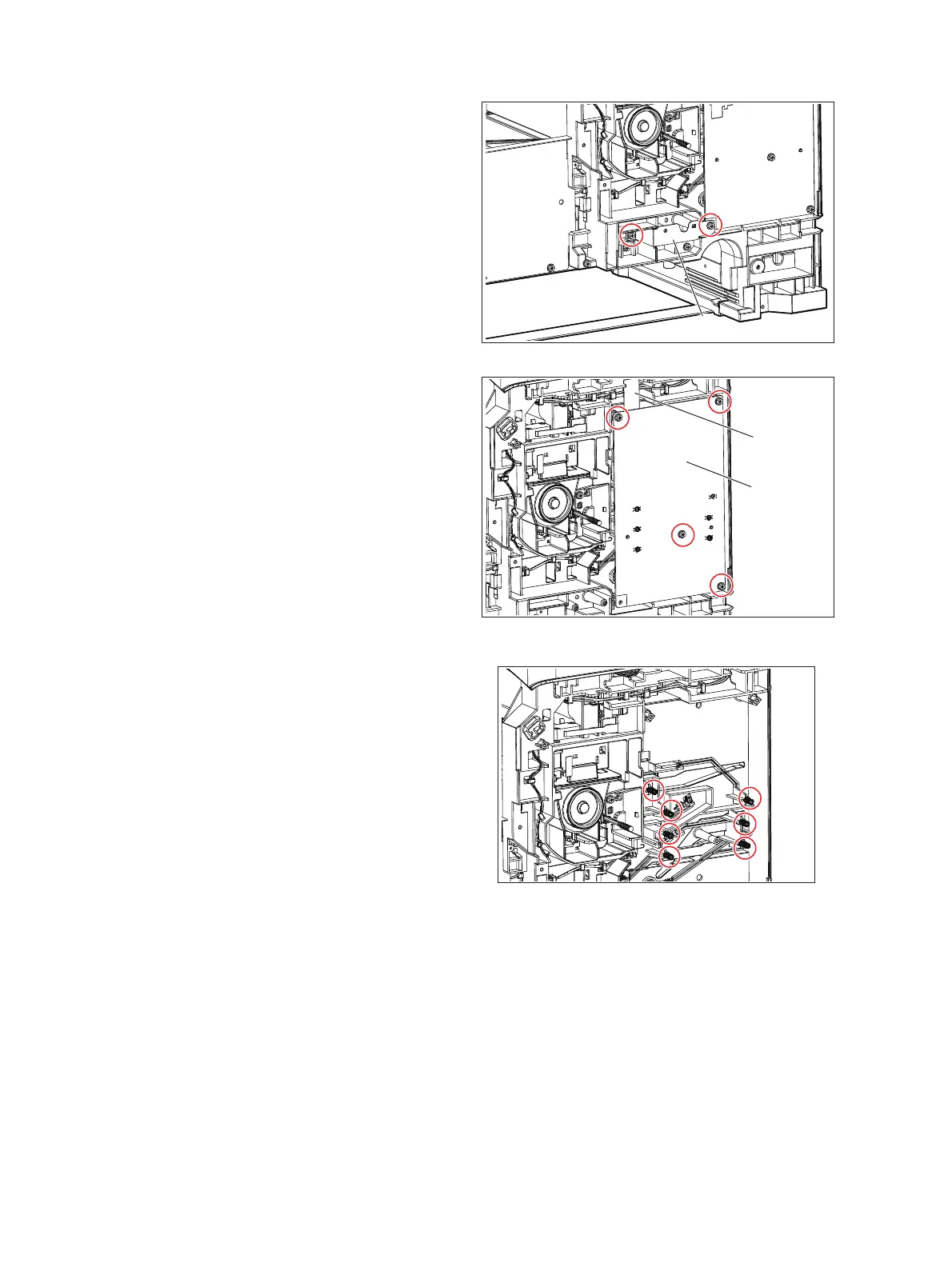

(3) Remove 2 screws and take off the bracket
[1].
Fig. 9-13
(4) Remove 4 screws and take off HVPS [2].
Then disconnect flat harness [3].
Fig. 9-14
Notes:
When installing the HVPS, be careful not to
deform the 7 springs.
Fig. 9-15
[1]
[3]
[2]
