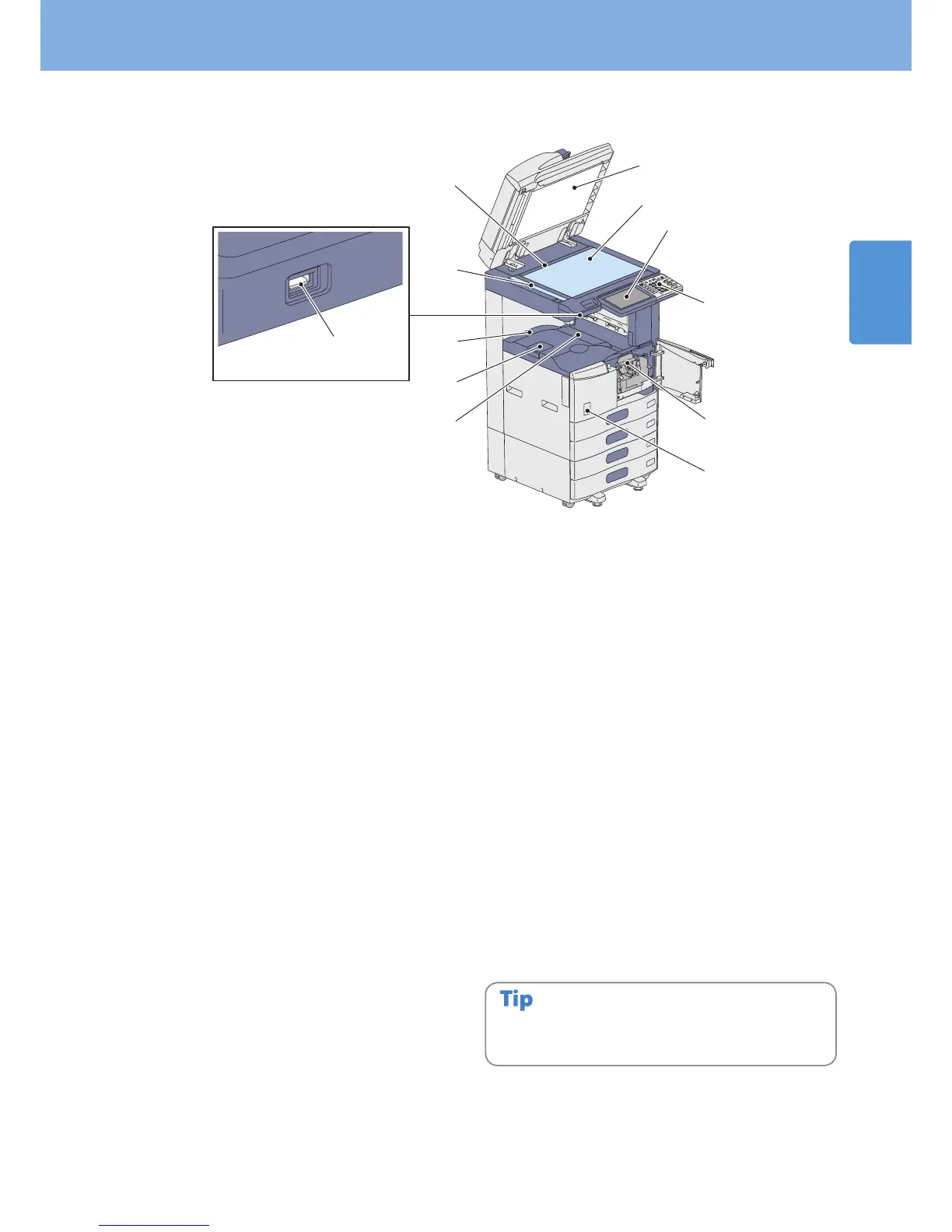

Description of Each Component
7
Left / Inner side
1. Platen sheet
Use this to hold the original on the original glass to scan it.
& P.44 “Regular Cleaning” in this manual
2. Original glass
Use this to copy three-dimensional originals, book-type
originals and special paper such as OHP lm or tracing
paper, as well as plain paper.
3. Touch panel
Use this to set and operate various types of functions such
as copying, scanning and faxing. This also displays
messages, such as when paper runs out or paper jams
occur.
& P.10 “Touch panel” in this manual
4. Control panel
Use this to set and operate various types of functions such
as copying and faxing.
& P.8 “Control panel” in this manual
5. Toner cartridge
When toner runs out, the message appears on the touch
panel. Replace the cartridge following the procedure
below.
& P.36 “Replacing Toner Cartridge” in this manual
6. Main power switch
Use this switch to turn the power of the equipment ON or
OFF.
& P.12 “Turning Power ON/OFF” in this manual
7. Exit support tray
This tray aligns the printed paper.
& Troubleshooting Guide (PDF): “Chapter 1:
TROUBLESHOOTING FOR THE HARDWARE” - “Removal and
Installation of the Exit Support Tray”
8. Paper exit stopper
Use this to prevent the exiting paper from falling. Open
this when you make many copies or prints on a larger size
of paper such as A3, B4, LD and LG.
9. Exit tray
Printed paper exits into this tray.
10. USB port
Use this connector when printing les stored in a USB
device or storing scanned data into the USB device.
11. Scanning area
The data of originals transported from the Reversing
Automatic Document Feeder (optional) are scanned here.
& P.44 “Regular Cleaning” in this manual
12. Original scale
Use this to check the size of an original placed on the
original glass.
To Next Page
