SUPPORTED IP TELEPHONES IP5000-Series Telephone Tilt Angles
1-4 IPT Installation Manual Feb,, 2015

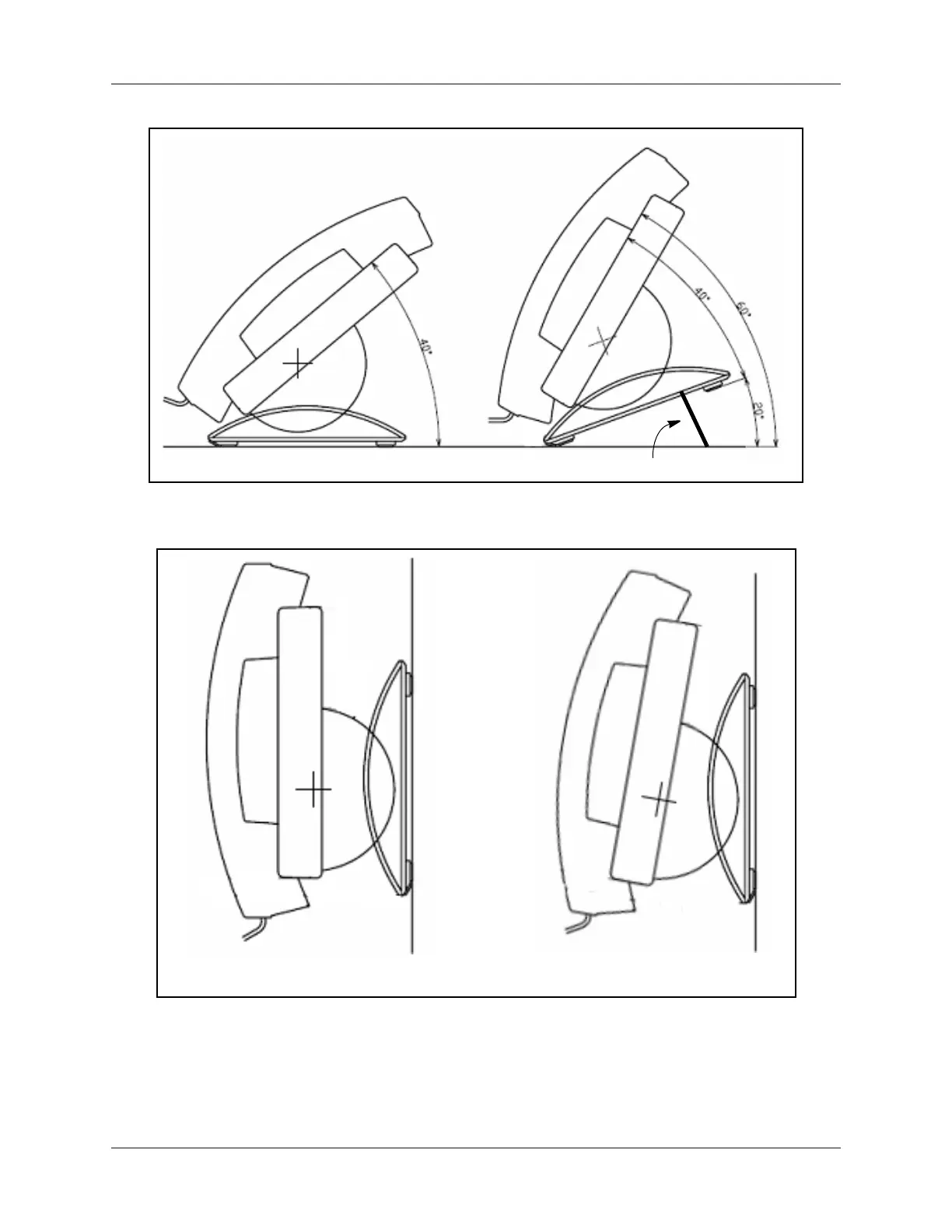

Figure 1-1 IP5000-Series Desk-top Tilt Angle With Tilt-Stand Extension
Figure 1-2 IP5000-Series Wall Mount Angles
Tilt Stand Extension
0° (no) Tilt -20° Tilt
