Left side

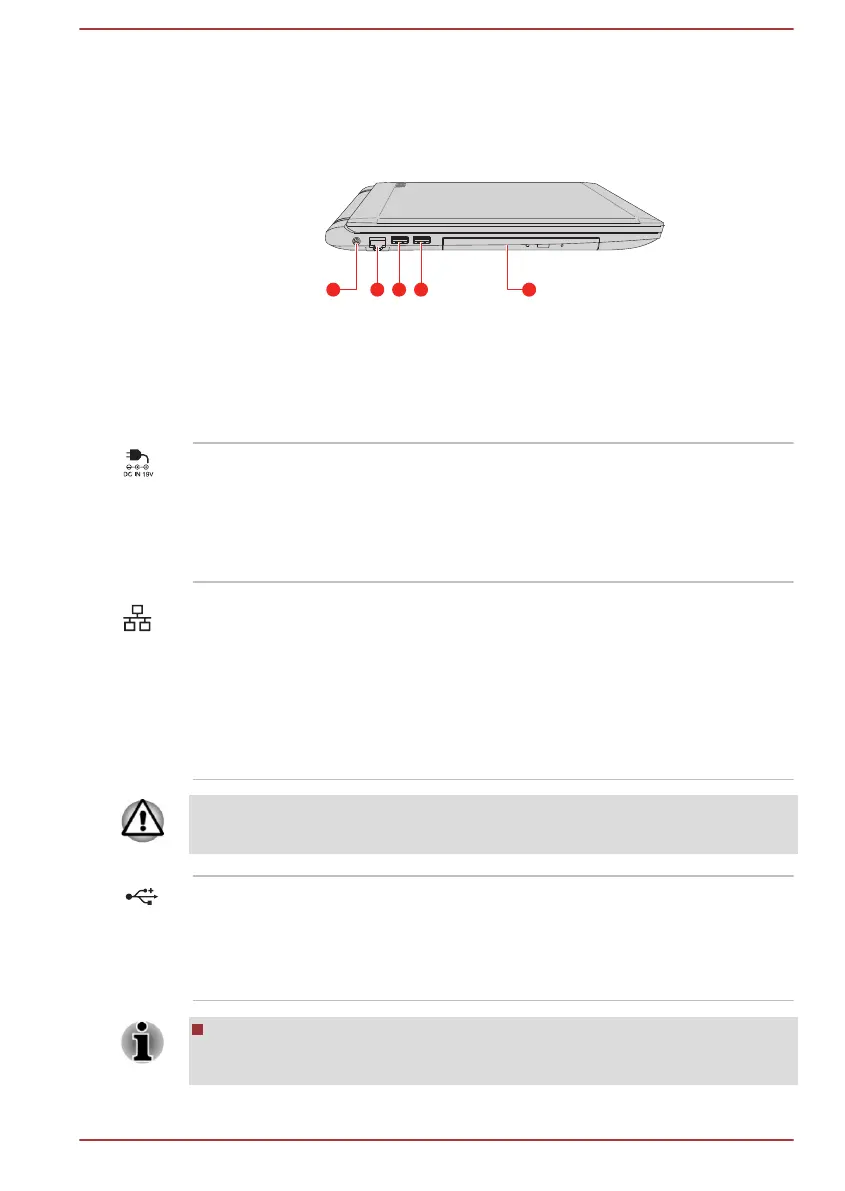

The following figure shows the left side of the computer.
Figure 3-2 The left side of the computer
1. DC IN 19V jack 4. Universal Serial Bus (USB 2.0) port*
2. LAN jack 5. Optical disc drive*
3. Universal Serial Bus (USB 2.0) port
* Provided with some models.
Product appearance depends on the model you purchased.
DC IN 19V jack The AC adaptor connects to this jack in order to
power the computer and charge its internal
batteries. Note that you must only use the model
of AC adaptor supplied with the computer at the
time of purchase. Using the wrong AC adaptor
can damage the computer.
LAN jack This jack lets you connect to a LAN. The adaptor
has built-in support for Ethernet LAN (10
megabits per second, 10BASE-T), or Fast
Ethernet LAN (100 megabits per second,
100BASE-TX). Some models are equipped with
a Gigabit Ethernet LAN (1000 megabits per
second, 1000BASE-T). Refer to Operating
Basics, for details.
Do not connect any cable other than a LAN cable to the LAN jack. It could
cause damage or malfunction.
Universal Serial Bus
(USB 2.0) port
One or two Universal Serial Bus ports, which
comply to the USB 2.0 standard, are provided on
the left side of the computer.
The USB 2.0 port is not compatible with USB 3.0
devices.
Note that it is not possible to confirm the operation of all functions of
all USB devices that are available. Some functions associated with a
specific device might not operate properly.
User's Manual 3-2
