DISASSEMBLY INSTRUCTIONS
B2-4
Printing Surface
Reinforcement Plate
59 ± 1mm
Fold
(1)
Printing Surface
10 ± 1mm
Fold
(3)
Printing Surface
44 ± 1mm
Fold
(4)
Printing Surface
Printing Surface
10 ± 1mm
Fold
(2)
Reinforcement Plate
Reinforcement Plate
Printing Surface
Fold
43 ± 1mm
54 ± 1mm
Printing Surface
Pick Up Side
Fold it by 90˚
[ 24 pin FFC ]

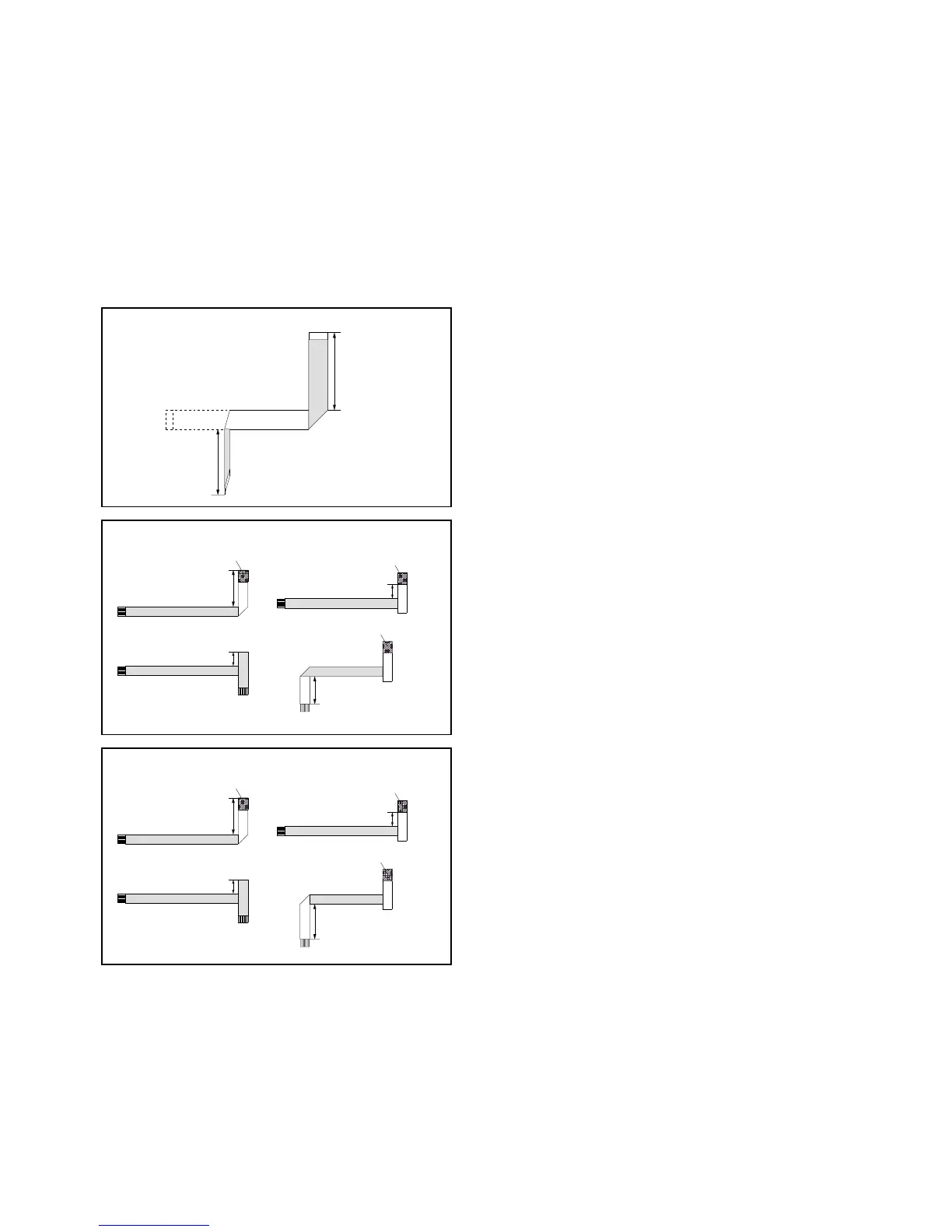

When installing the FFC, fold it correctly and install it as
shown from Fig. 2-8-A to Fig. 2-8-C.
2-8: FFC WIRE HANDLING
1.
Do not make the folding lines except the specified
positions for the FFC.
1.
NOTE
Fig. 2-8-A
• Proceed the steps (1) through (4).
[ 6 pin FFC ]
Fig. 2-8-B
Printing Surface
Reinforcement Plate
55 ± 1mm
Fold
(1)
Printing Surface
10 ± 1mm
Fold
(3)
Printing Surface
60 ± 1mm
Fold
(4)
Printing Surface
Printing Surface
10 ± 1mm
Fold
(2)
Reinforcement Plate
Reinforcement Plate
• Proceed the steps (1) through (4).
[ 5 pin FFC ]
Fig. 2-8-C
