DRIVE CONNECTORS –MK8026GAX (HDD2191)

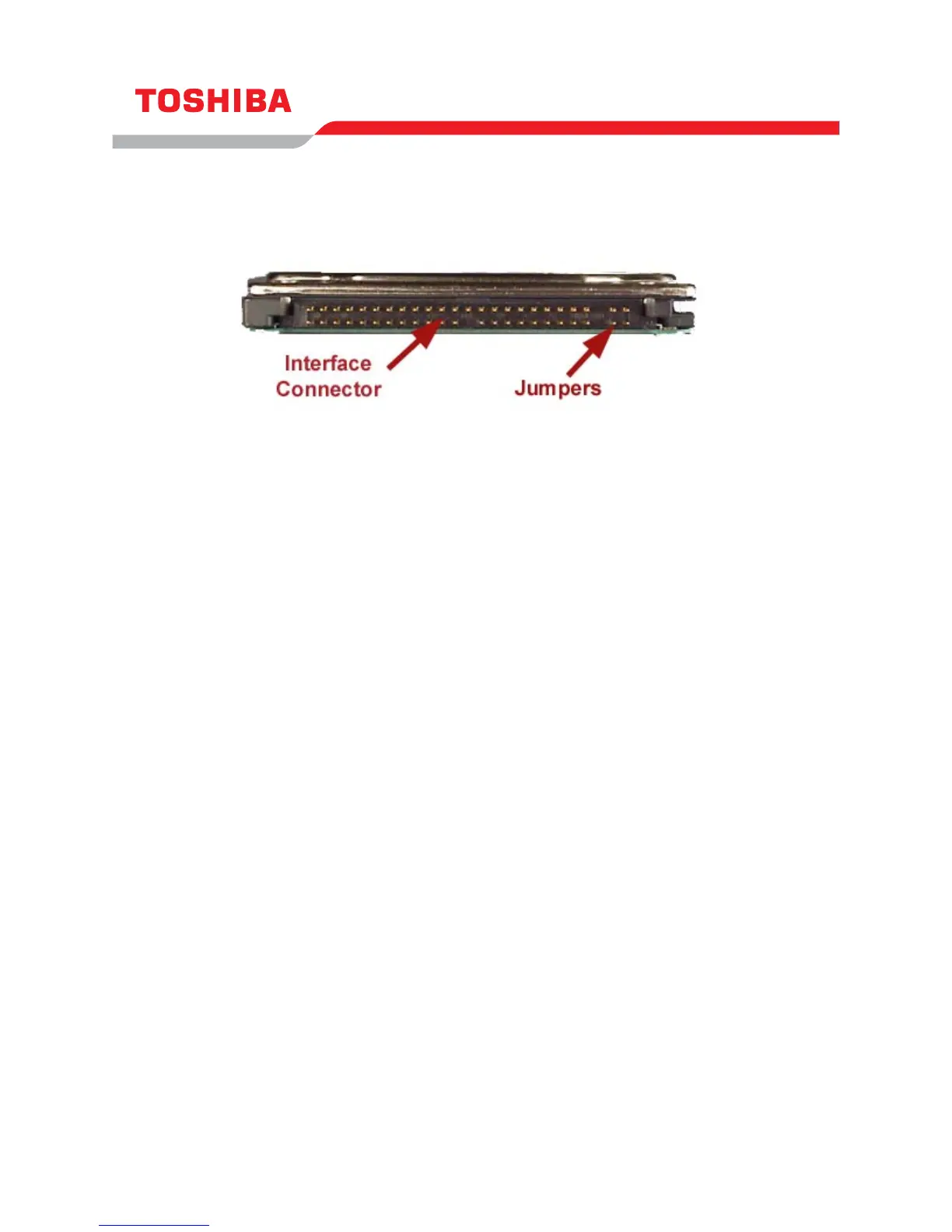

Figure 1.MK8026GAX HDD Rear View - Connectors
Interface Connector
Drive Side Connector Yamaichi GAP050K11617 or equivalent
Recommended Host Side Connector
Board Straight type: Berg 86455-044 86456-044 or equivalent
Cable Berg 89361-044 or equivalent
Recommended Cable Characteristics
Standard diameter 0.32mm (28AWG)
Characteristics impedance 100 - 132ohm
Max Length 0.46mm (max)
Capacitance 35pF (max)
* cable is not included with drive
