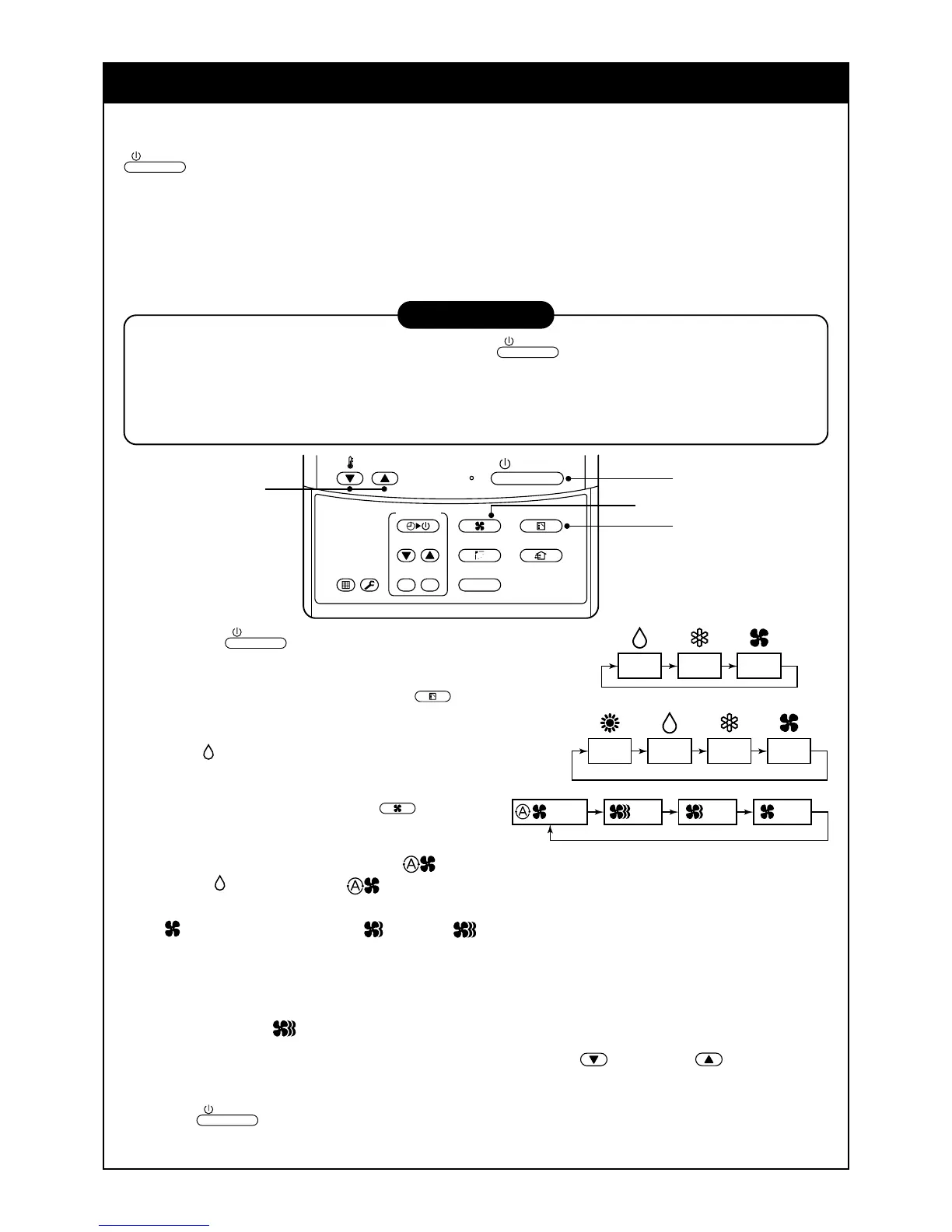

CORRECT USAGE
When you use the air conditioner for the first time or when you change the SET DATA value, follow the proce-
dure shown below. For consequent uses the display on the remote controller can be turned on by pushing the
ON / OFF
button only.
Preparation
Turn on the main power supply and/or the leakage breaker.
• When the power supply is turned on, a partition line is shown on the display part of the remote controller.
Note) When the power supply is turned on, the remote controller will not accept any operational inputs until
approximately 1 minute has passed. This is not a failure of the unit.
REQUIREMENT
• While using the air conditioner, only operate it with the
ON / OFF
button. Do not turn it off with the main
power switch or the leakage breaker.
• Do not turn off the leakage breaker while the air conditioner is in use.
• Turn on the leakage breaker 12 hours or more before the air conditioner is to begin operation or if the
system has not been in use for long periods of time.
1
Push the
ON / OFF
button.
The operation lamp goes on, and the operation will start.
2
Select an operation mode with the
MODE
button.
One push of the button, and the display
changes in the order shown on the right.
•“DRY mode” function is not provided on the
Concealed Duct High Static Pressure Type.
3
Select the air volume with the
FAN
button.
One push of the button, and the display
changes in the order shown on the right.
• When the air volume is set to “AUTO ”, the air volume will differ according to the room temperature.
• In DRY mode, the “AUTO ” symbol will be displayed and the air volume will be LOW.
• In heating operation, if the room temperature is not heated sufficiently with the air volume set at “LOW
” operation, select the “MED. ” or “HIGH ” operation.
• The temperature sensor for the indoor unit is located near to the air inlet opening and therefore will differ
slightly from the actual room temperature. This difference may be increased/decreased depending on the
type of room and its design. (Automatic air speed cannot be selected in FAN mode.)
• The Air Volume function is not provided on the “Concealed Duct High Static Pressure Type” instead the
air speed “HIGH ” symbol is displayed.
4
Determine the set up temperature by pushing the “TEMP. ” or “TEMP. ” button.
Stop
Push the
ON / OFF
button.
The operation lamp goes off and the unit will stop.
