4-36 User’s Manual
Qosmio G50
Connecting the modular cable
To connect the modem’s modular cable, follow the steps as detailed below:
1. Plug the end of the modular cable into the computer’s modem jack.
2. Plug the other end of the modular cable into a telephone jack.

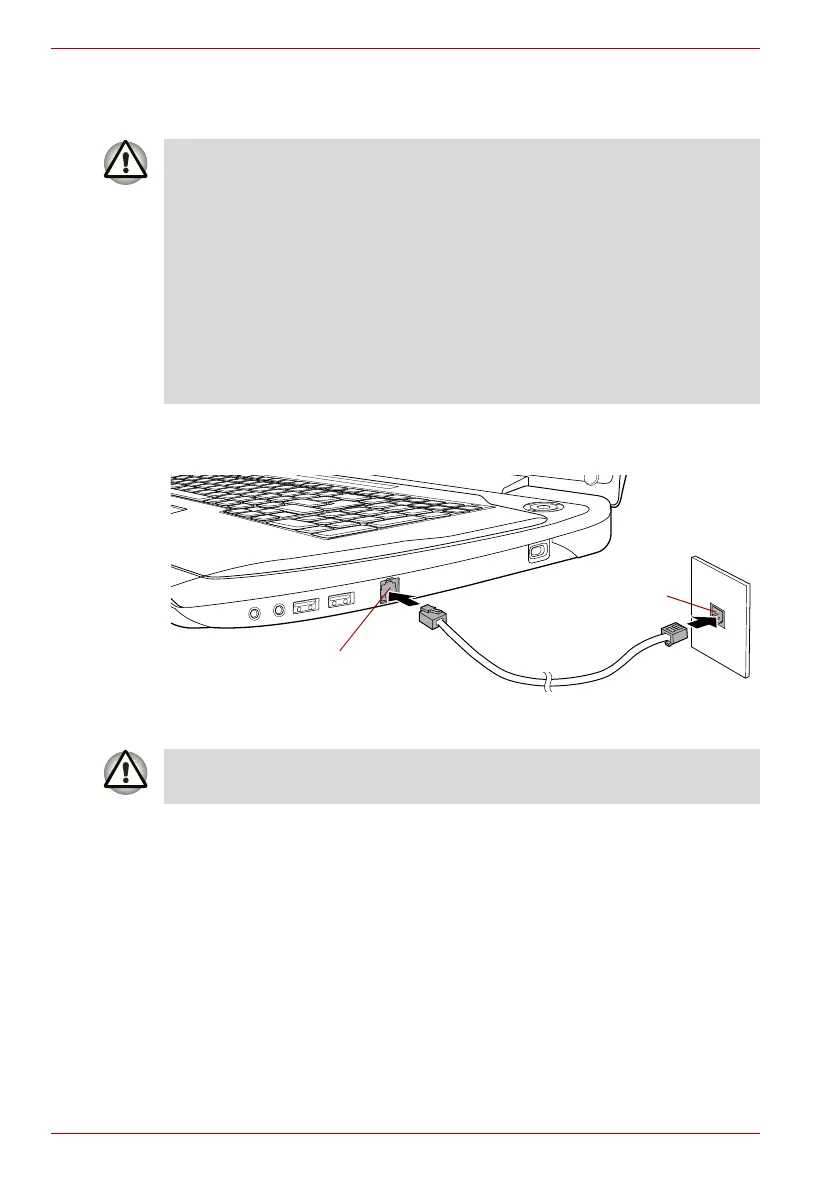

Figure 4-12 Connecting the internal modem
Disconnecting the modular cable
To disconnect the modular cable, follow the steps as detailed below:
1. Pinch the lever on the plug in the telephone jack and pull it out from
within the connector.
2. Pinch the lever on the plug in the computer’s modem jack and pull it out
from within the computer.
■ Connection to any communication line other than an analog phone line
could cause a computer system failure.
■ Connect the built-in modem only to ordinary analog phone lines.
■ Never connect the built-in modem to a digital line (ISDN).
■ Never connect the built-in modem to the digital connector on a
public telephone or to a digital private branch exchange (PBX).
■ Never connect the built-in modem to a key telephone system for
residences or offices.
■ Avoid using your computer modem with the telephone cable connected
during an electrical storm. There may be a remote risk of electric shock
from lightning.
Modem jack
Telephone jack
Do not pull on the cable or move the computer while the cable is
connected.
