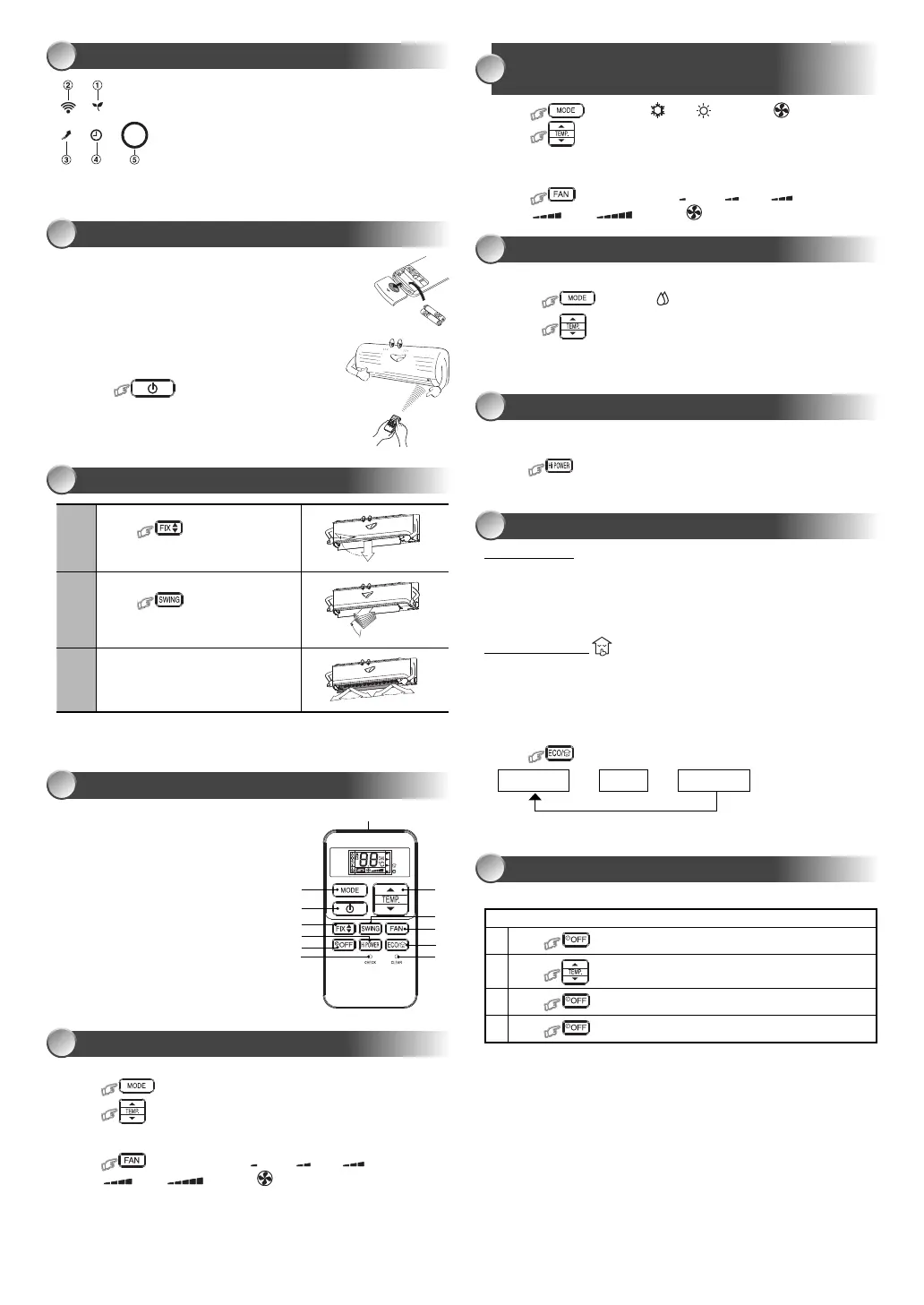

INDOOR UNIT DISPLAY
1
Press : Move the louver in
the desired vertical direction.
2
Press : Swing the air
automatically and press again to stop.
3
For horizontal direction, adjust
manually.
Note:
• Do not move the louver manually by others.
• The louver may automation positioning by some operation mode.
Preparing Filters
1. Open the air inlet grille and remove the air fi lters.
2. Attach the fi lters. (see detail in the accessory sheet).
Loading Batteries (when use wireless operation.)
1. Remove the slide cover.
2. Insert 2 new batteries (AAA type) following
the (+) and (–) positions.
Remote Control Reset
1. Remove the batteries.
2. Press
.
3. Insert the batteries.
1 Infrared signal emitter
2 Start/Stop button
3 Mode select button (MODE)
4 Temperature button (TEMP)
5 Fan speed button (FAN)
6 Swing louver button (SWING)
7 Set louver button (FIX)
8 Off timer button (OFF)
9 High power button (Hi-POWER)
! ECO/SILENT button (ECO/SILENT)
" Clear button (CLEAR)
# Check button (CHECK)
To automatically select cooling, heating, or fan only operation
1. Press
: Select A.
2. Press
: Set the desired temperature.
Min. 17°C, Max. 30°C
3. Press
: Select AUTO, LOW , LOW+ , MED ,
MED+
, HIGH , or QUIET .
1. Press
: Select Cool , Heat , or Fan only .
2. Press
: Set the desired temperature.
Cooling and Heating : Min. 17°C, Max. 30°C
Fan Only : No temperature indication
3. Press
: Select AUTO, LOW , LOW+ , MED ,
MED+
, HIGH , or QUIET .
For dehumidifi cation, a moderate cooling performance is controlled automatically.
1. Press
: Select Dry .
2. Press : Set the desired temperature.
Min. 17°C, Max. 30°C
Note: Dry mode fan speed is set to Auto only.
To automatically control room temperature and airfl ow for faster cooling or
heating operation (Except in DRY and FAN ONLY mode)
Press
: Start and stop the operation.
Note: Hi-POWER operation symbol will appear on remote control display.
ECO OPERATION
To automatically control room temperature to save energy (Except in DRY and
FAN ONLY mode)
Note: Cooling operation; the set temperature will increase automatically 1 degree/
hour for 2 hours (maximum 2 degree increase). For Heating operation the
set temperature will decrease.
SILENT OPERATION
To reduce outdoor sound level during operation (Except in DRY and FAN ONLY
mode)
Note: Though operating silently, the Heating or Cooling capacity is still prioritized
to ensure having suffi cient comfort inside the room.
ECO and SILENT operation setting
Press
: Start and stop the operation.
NORMAL
➝
ECO
➝
SILENT
Note: ECO and SILENT operation symbol will appear on remote control display.
COOLING / HEATING / FAN ONLY
OPERATION
6
DRY OPERATION
7
Hi-POWER OPERATION
8
ECO / SILENT OPERATION
9
PREPARATION BEFORE USE
2
AIR FLOW DIRECTION
3
REMOTE CONTROL
4
AUTOMATIC OPERATION
5
MODE
Hi POWER
ECO
SILENT
OFF
4
5
"
!
1
2
7
8
#
3
9
6
1
1 ECO (White)
2 Wi-Fi access (White)
3 Hi-Power (White)
4 Timer (White)
5 Operation (White)
• Display brightness can be adjusted, follow procedure on ".
Require Wireless LAN connecting adapter which available as accessory.
Set the timer when the air conditioner is operating.
TIMER OPERATION
10
Setting the OFF timer
1
Press for enter OFF timer setting.
2
Press for select desired OFF timer. (0.5 - 12 hrs)
3
Press for set OFF timer.
4
Press again for cancel OFF timer.
Note: TIMER OPERATION symbol will appear on remote control display.
