10
Getting started
10 o RGB/PC (input terminal) — For use
when connecting a personal computer (PC)
(- page 29).
11 o (1) (Video 1 input terminals) — Standard
(composite) video and standard (analog)
stereo audio inputs (- page 26).
12 o (2) (Video 2 input terminals) — Optional
S-video or standard video and standard
audio inputs (- page 26).
13 o (3) (Video 3 input terminals) — High-
de nition component video and standard
(analog) stereo audio inputs (- page 26).
14 o HDMI (input terminal) — High-De nition
Multimedia Interface input receives digital
audio and uncompressed digital video from
an HDMI device or uncompressed digital
video from a DVI device (- page 27).
15 O MONITOR (output terminals) —
Standard video and standard audio outputs
(- page 26).
16 o PC/HDMI (AUDIO) (input terminals) —
PC audio input terminals are shared with
HDMI analog audio input terminals, and their
use can be con gured in the SETUP menu
(- page 27, 29).
17 A (Antenna input terminal) — Analog
antenna signal input (- page 8).

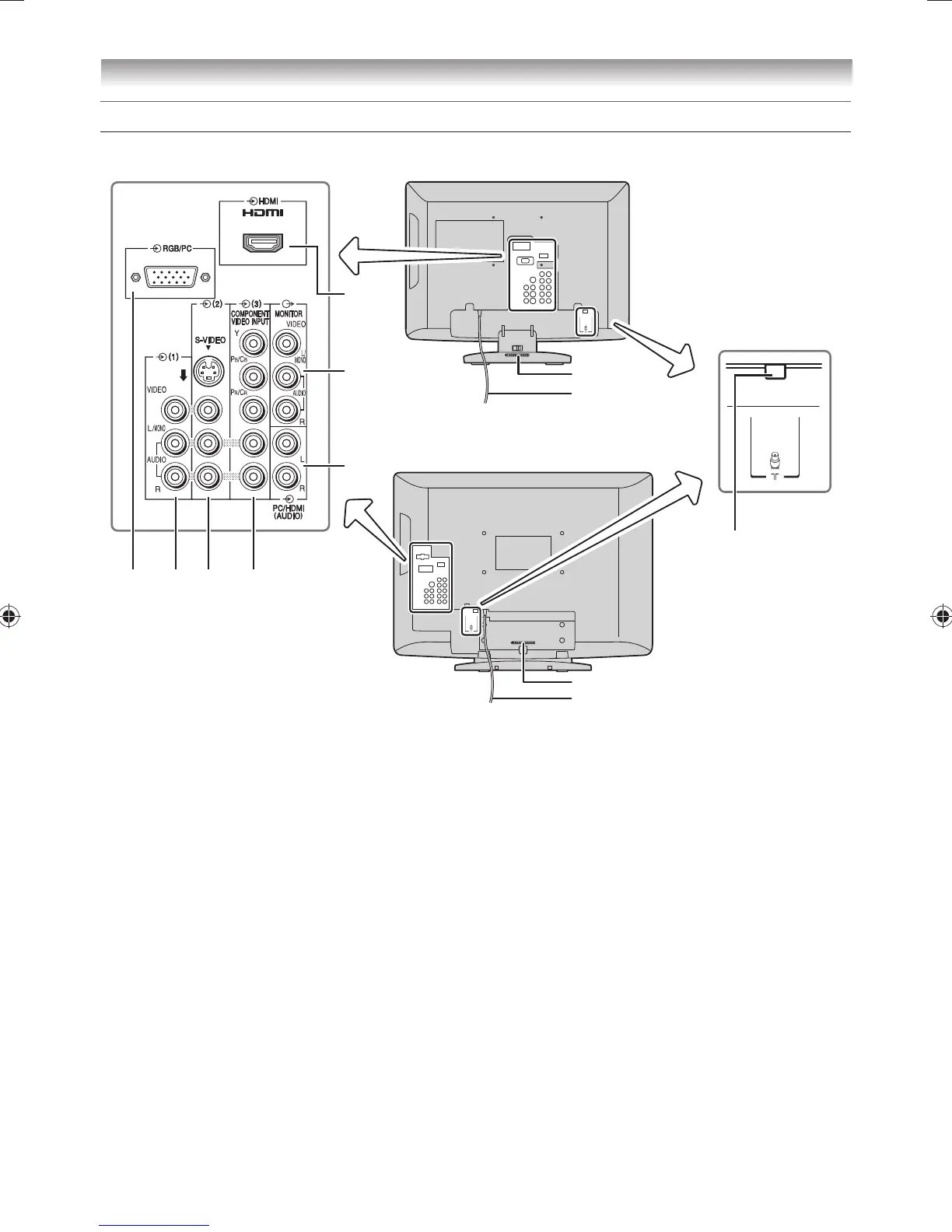

TV back panel connections
19AV550
26AV550/600
Cable holder*
Power cord
Cable holder*
Power cord
*
17
1110 12 13
14
15
16
You can use the cable
holder to hold antenna
cable, video and audio
cables etc.
When moving the TV,
never hold this holder.
