Toshiba Satellite C55D-A Series User Manual

Computer 19V DC

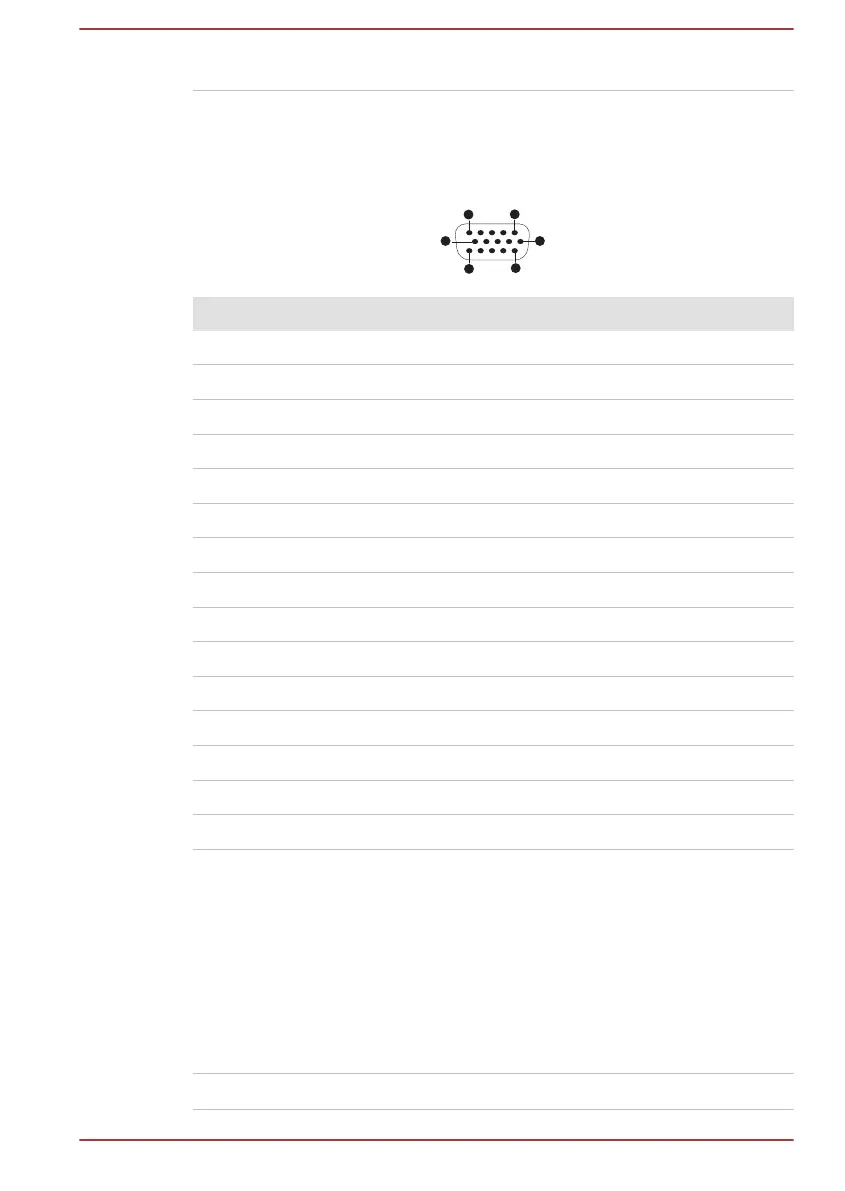

External RGB monitor port pin assignment
610
1
5
15
11
Pin Signal Name Description I/O
1 CRV Red Video Signal O
2 CGV Green Video Signal O
3 CBV Blue Video Signal O
4 Reserved Reserved
5 GND Ground
6 GND Ground
7 GND Ground
8 GND Ground
9 +5V Power Supply
10 GND Ground
11 Reserved Reserved
12 SDA Data Signal I/O
13 HSYNC Horizontal Sync Signal O
14 VSYNC Vertical Sync Signal O
15 SCL Data Clock Signal O
I/O (I): Input to computer
I/O (O): Output from computer
AC Power Cord and Connectors
The power cord’s AC input plug must be compatible with the various
international AC power outlets and the cord must meet the standards for
the country/region in which it is used. All cords must meet the following
specifications:
Wire size:
Minimum 0.75 mm
2
User's Manual 7-2

Toshiba Satellite C55D-A Series Specifications

General

Storage	500GB HDD (5400 RPM)
Graphics	AMD Radeon HD 8330
Optical Drive	DVD-SuperMulti drive (+/-R double layer)
Wireless	Wi-Fi 802.11b/g/n
Screen Resolution	1366 x 768
USB Ports	1x USB 3.0, 2x USB 2.0
HDMI	Yes
Webcam	HD webcam with microphone
Processor	AMD A4-5000
RAM	4GB DDR3L 1600MHz
Display	15.6" HD TruBrite LED Backlit Display
Operating System	Windows 8
Battery	4-Cell Lithium Ion
Bluetooth	Bluetooth 4.0
Ports	1 x USB 3.0, 2 x USB 2.0, 1 x HDMI, 1 x VGA, 1 x RJ-45, 1 x Headphone/Microphone combo port
LAN	10/100 Ethernet
