Toshiba Satellite C55t User Manual

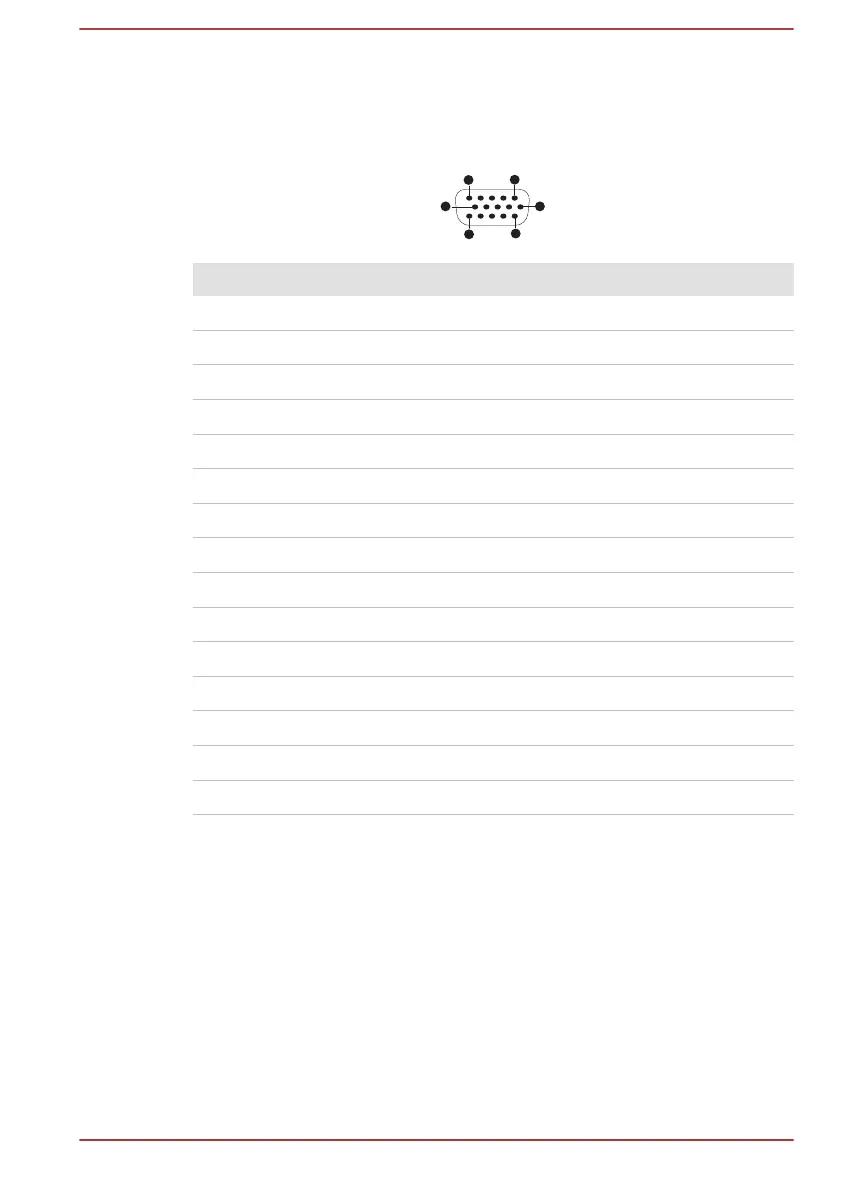

External RGB monitor port pin assignment
610
1
5
15
11
Pin Signal Name Description I/O
1 CRV Red Video Signal O
2 CGV Green Video Signal O
3 CBV Blue Video Signal O
4 Reserved Reserved
5 GND Ground
6 GND Ground
7 GND Ground
8 GND Ground
9 +5V Power Supply
10 GND Ground
11 Reserved Reserved
12 SDA Data Signal I/O
13 HSYNC Horizontal Sync Signal O
14 VSYNC Vertical Sync Signal O
15 SCL Data Clock Signal O
I/O (I): Input to computer
I/O (O): Output from computer
AC Power Cord and Connectors
The power cord’s AC input plug must be compatible with the various
international AC power outlets and the cord must meet the standards for
the country/region in which it is used. All cords must meet the following
specifications:
Wire size:
Minimum 0.75 mm
2
Current rating: Minimum 2.5 amperes
User's Manual 7-2

Toshiba Satellite C55t Specifications

General

Optical Drive	DVD SuperMulti drive
Wireless	Wi-Fi 802.11b/g/n
Card Reader	SD Card Reader
Webcam	HD Webcam
Battery	4-cell Lithium-ion
RAM	4GB DDR3L
Storage	500GB HDD
Display	15.6-inch HD (1366 x 768)
Graphics	Intel HD Graphics
Operating System	Windows 8.1
LAN	10/100 Mbps Ethernet
Ports	1 x USB 3.0, 2 x USB 2.0, 1 x HDMI, 1 x VGA, 1 x Headphone/Microphone combo jack
