Front with the display open
This section shows the computer with the display panel open. In order to
open the display, lift the display panel up and position it at a comfortable
viewing angle for you.

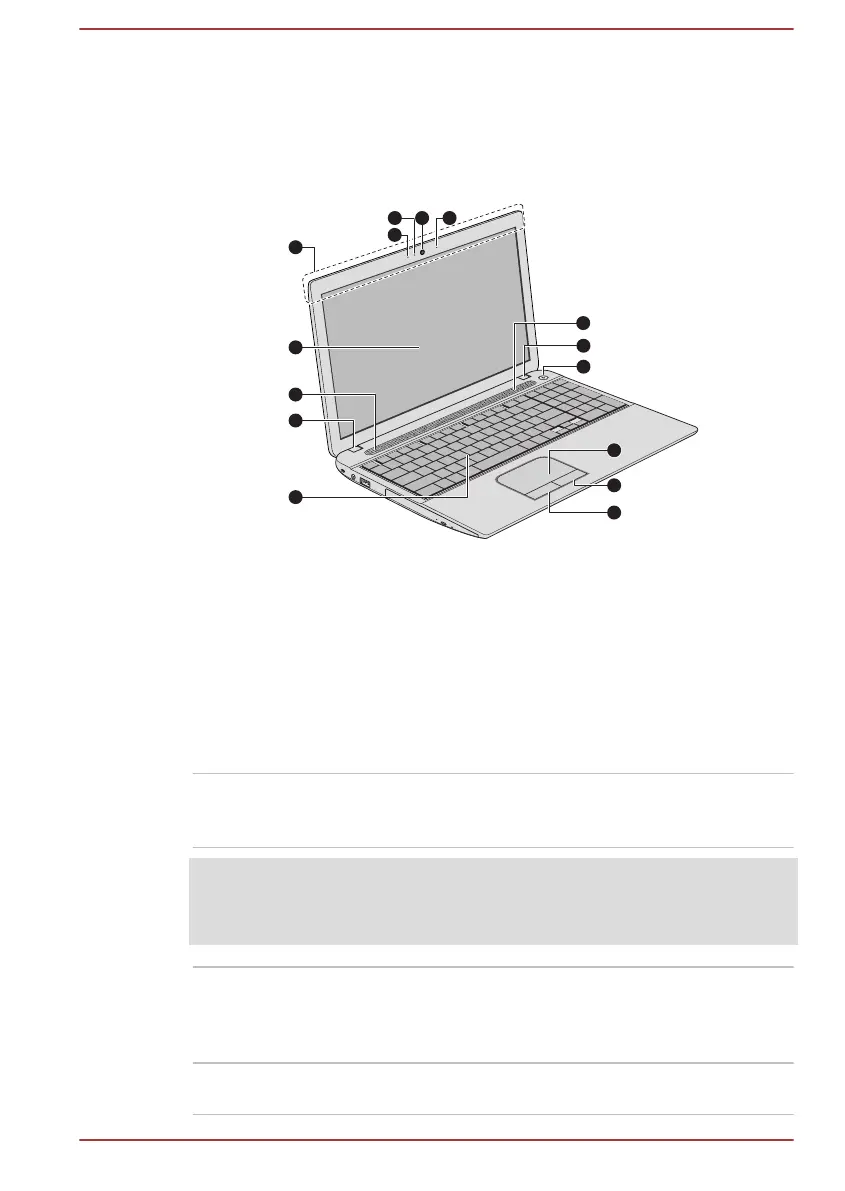

Figure 3-6 The front of the computer with the display panel open
1. Wireless communication antennas
(not shown)*
8. Keyboard
2. Microphone* 9. Stereo speakers
3. Web Camera LED* 10. Power button
4. Web Camera* 11. Touch Pad
5. Microphone* 12. Touch Pad control button
6. Display screen 13. Touch Pad control button
7. Display hinges
* Provided with some models.
Product appearance depends on the model you purchased.
Wireless
communication
antennas
Some computers in this series are equipped with
the Wireless LAN/Bluetooth antennas.
Legal Footnote (Wireless LAN)
For more information regarding Wireless LAN, please refer to the Legal
Footnotes section.
Microphone The built-in microphone allows you to import and
record sounds for your application - please refer
to the Sound System and Video mode section for
more information.
Web Camera LED The Web Camera LED glows when the Web
Camera is operating.
User's Manual 3-7
