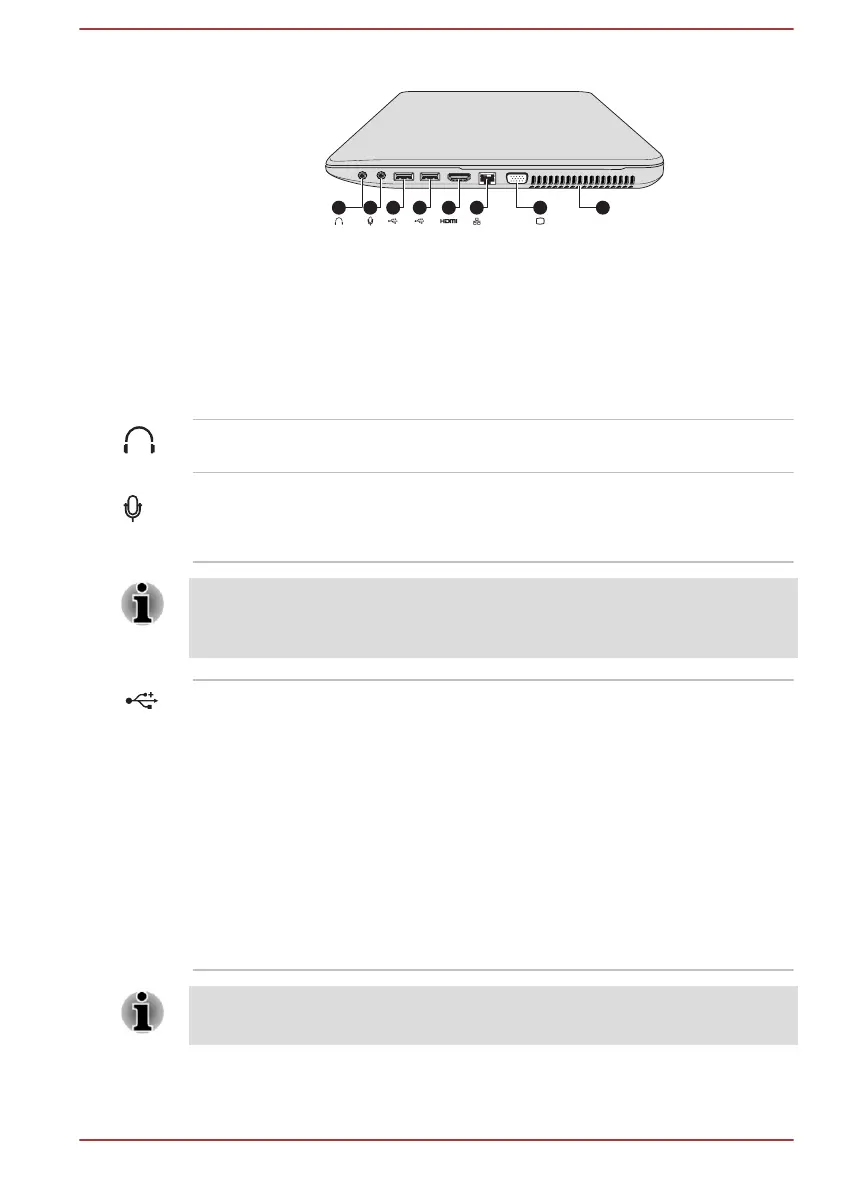

Figure 3-3 The right side of the computer
1. Headphone jack 5. HDMI out port*
2. Microphone jack 6. LAN jack*
3. Universal Serial Bus (USB 2.0 or 3.0)
port*
7. External RGB monitor port*
4. Universal Serial Bus (USB 2.0 or 3.0)
port*
8. Cooling vents
* Provided with some models.
Product appearance depends on the model you purchased.
Headphone jack A 3.5 mm mini headphone jack enables
connection of stereo headphones.
Microphone jack A 3.5 mm mini microphone jack enables
connection of a mini jack for monaural
microphone input.
The integrated sound system provides support for the computer's internal
speakers and microphone, as well as allowing an external microphone and
headphones to be connected via the appropriate jacks.
Universal Serial Bus
(USB 2.0 or 3.0) port
Two Universal Serial Bus ports, which comply to
the USB 2.0 or 3.0 standard, are provided on the
right side of the computer.
The USB port type may vary depending on the
model you purchased. The port with blue color is
USB 3.0 port.
The USB 2.0 port is compliant with USB 2.0
standard and not compatible with USB 3.0
devices.
The USB 3.0 port is compliant with USB 3.0
standard and backward compatible with USB 2.0
devices.
USB 3.0 port(s) may work as USB 2.0 port(s) when operating in USB
Legacy Emulation mode.
