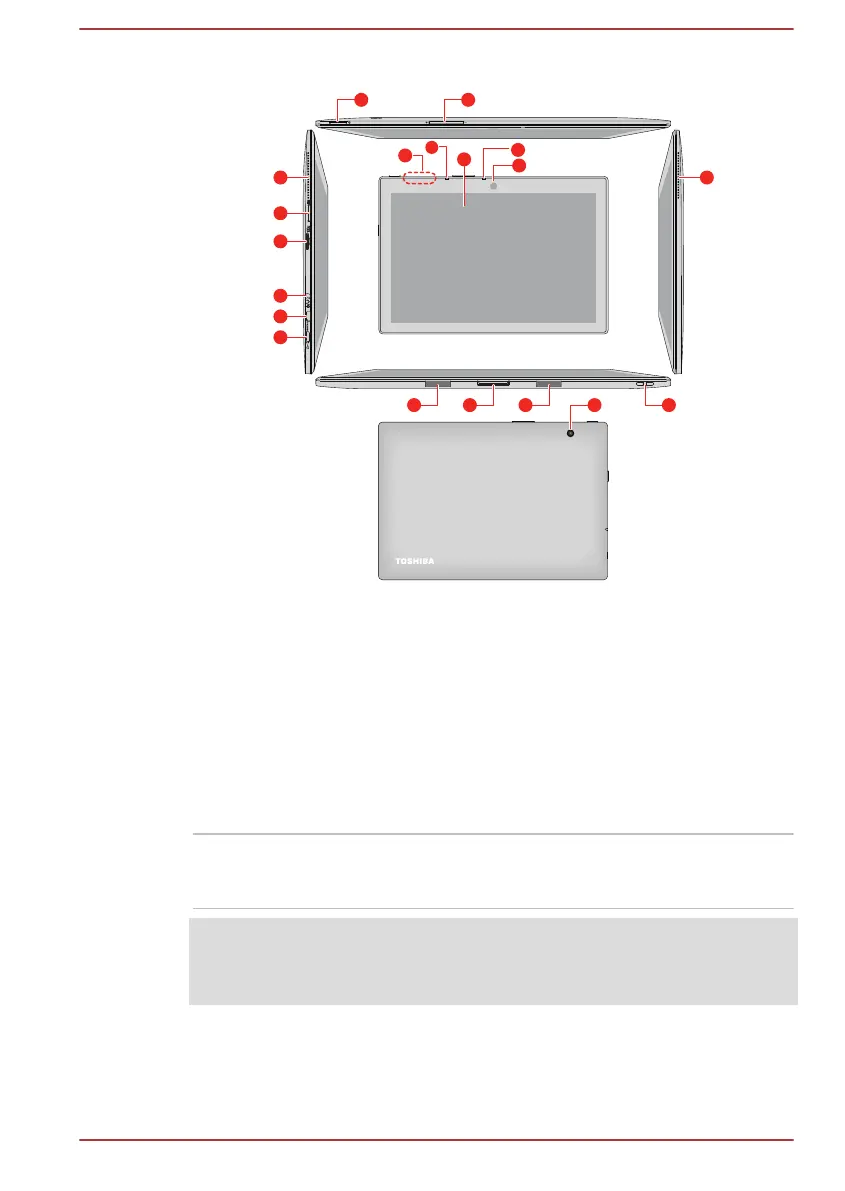

Figure 3-1 The computer in tablet mode
1
2
13 14 13 1516
5
7
8
9
10
11
12
7
6
4
3
2
1. Wireless communication antennas
(not shown)
9. Memory media slot
2. Microphones* 10. Headphone/Microphone combo jack
3. Display screen 11. HDMI micro port
4. Web Camera (front) 12. Micro-USB port
5. Power button 13. Guide pin grooves
6. Volume up/down button 14. Docking interface
7. Stereo speakers 15. Strap hole
8. Windows button 16. Web Camera (back)
* Provided with some models.
Product appearance depends on the model you purchased.
Wireless
communication
antennas
The computer is equipped with the Wireless LAN/
Bluetooth antennas.
Legal Footnote (Wireless LAN)
For more information regarding Wireless LAN, refer to the Legal Footnotes
section.
User's Manual 3-2
