Toshiba TC Series User Manual

TC Series (TCmini/TC200) Driver
GP-Pro EX Device/PLC Connection Manual
25

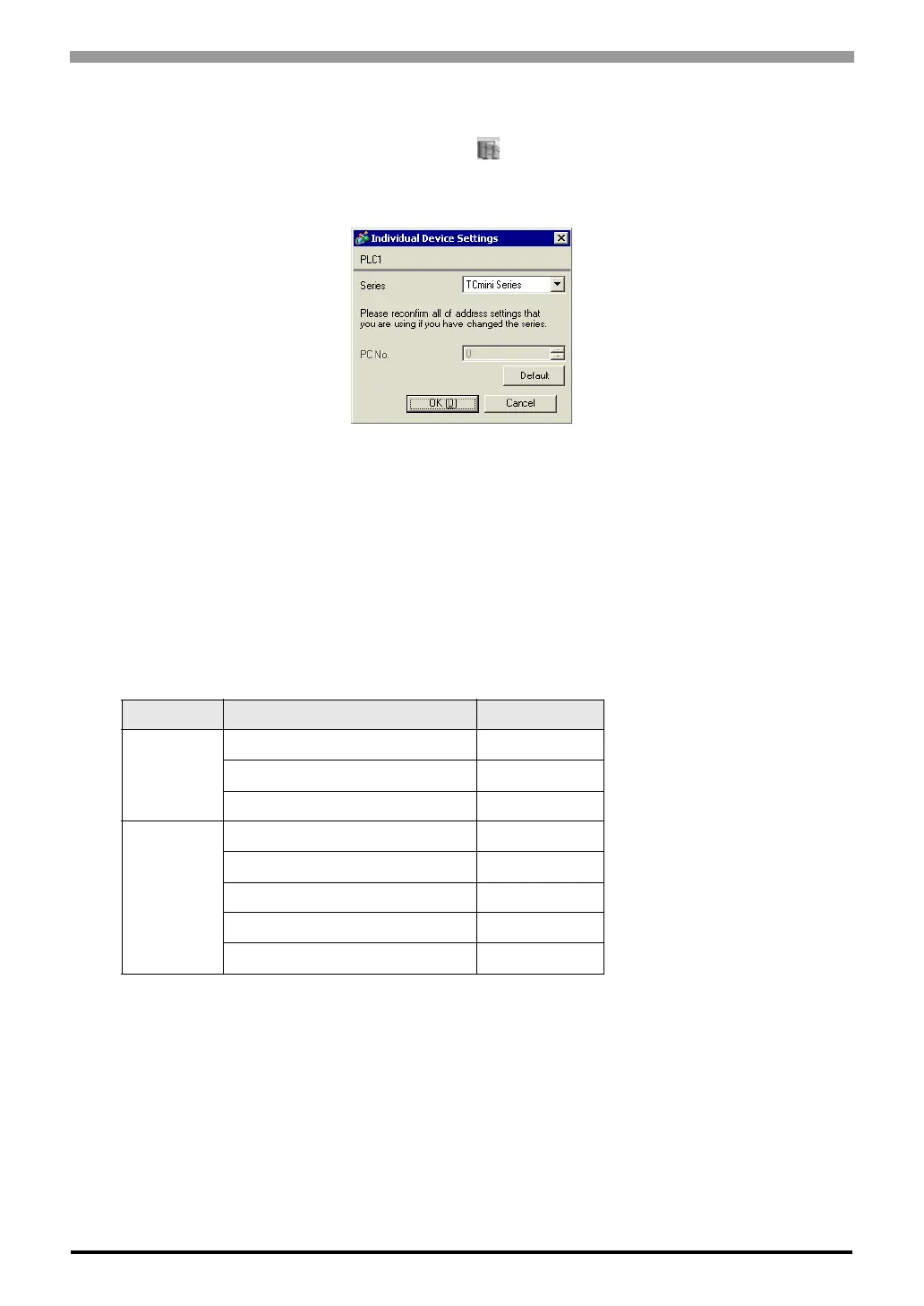

 Device Setting
To display the [Individual Device Settings] dialog box, from [Device-Specific Settings] in the [Device/PLC]
window, select the external device and click [Settings] .
To connect multiple External Devices, from [Device-Specific Settings] in the [Device/PLC] window, click [Add
Device] to add another External Device.
 External Device Settings
 RS-422/485 Communication Port Settings
To set the External Device's RS-422/485 communication port to half-duplex communication, set the jumper (for
TC3-01) or DIP Switch (for TC8-00) as follows.
Refer to your External Device manual for details.
• Setup Description
 Register Settings for RS-422/485 Communication
Use the ladder software (TCPRGOS-W (E)) to set up RS-422/485 communication.
Refer to your External Device manual for details.
After setup is complete, restart the External Device to enable the settings.
CPU Jumper/DIP Switch Setting
TC3-01
JP15, between pins 2 and 3 Short
JP3 Short
JP4 Short
TC8-00
SW5-1 OFF
SW5-2 OFF
SW5-3 ON
SW5-4 ON
SW5-5 ON
