Toshiba TC Series User Manual

TC Series (TCmini/TC200) Driver
GP-Pro EX Device/PLC Connection Manual
47
3J)
Legend Name Name
(1)

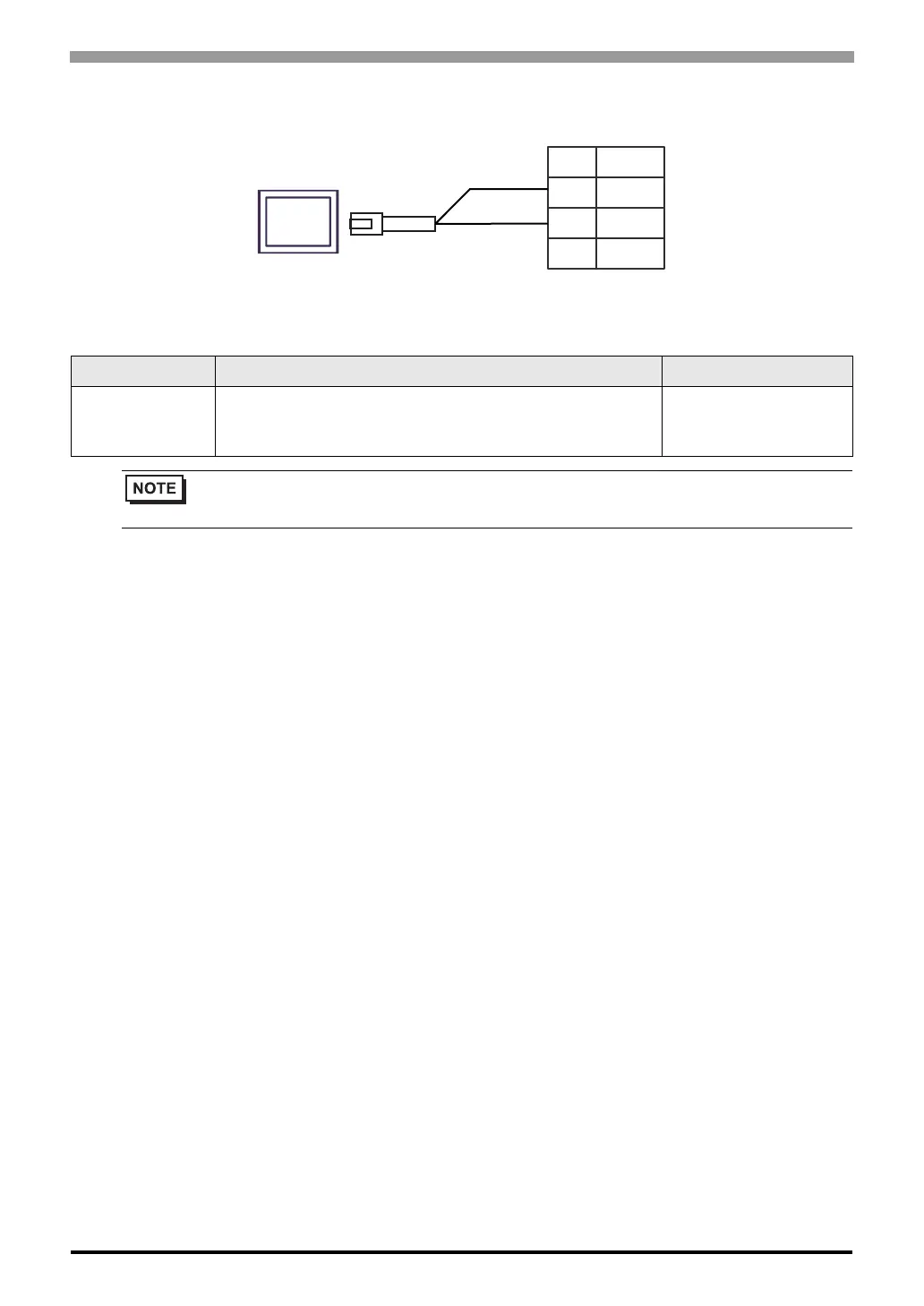

RJ45 RS-485 Cable (5m) by Pro-face
PFXZLMCBRJR81
• To insert termination resistance of 100Ω on the External Device, short-circuit jumper JP2.
• For the External Device connector, use the XH connector (XHP-7) by J.S.T. Mfg.
Signal name
Pin
3
4
7
RXD+
RXD-
FG
Display
External Device side
D0
D1
(1)
