Toshiba TC Series User Manual

TC Series (TCmini/TC200) Driver
GP-Pro EX Device/PLC Connection Manual
69
6G)

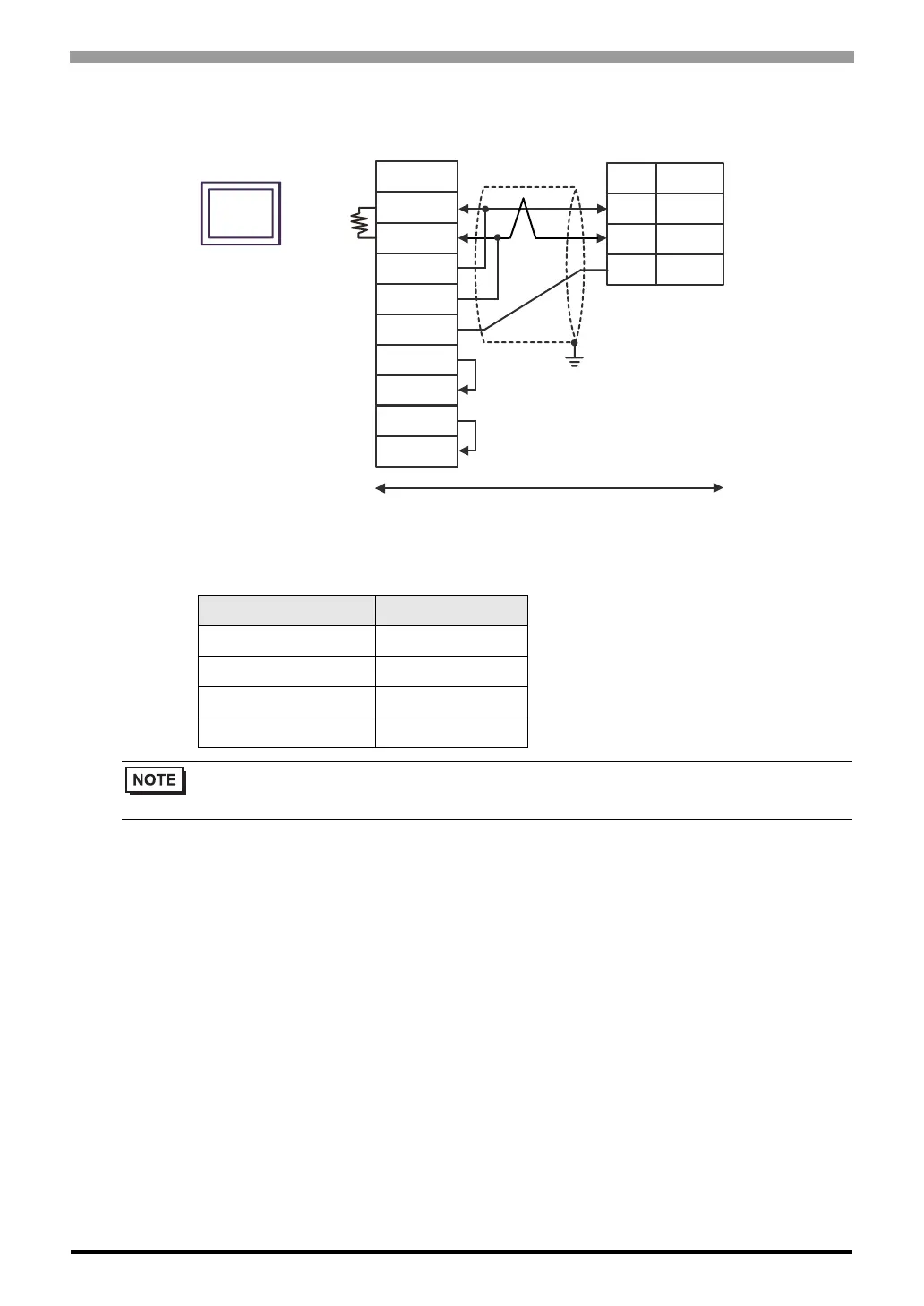

*1 The resistance built into the Display is used as termination resistance. Please set the DIP Switch in the back
of the Display as follows.
DIP Switch Setup Description
1OFF
2OFF
3ON
4ON
• Termination resistance of 120Ω is built into the External Device.
• For the External Device connector, use the XA connector (XAP-03V-1) by J.S.T. Mfg.
Signal name
Signal name
Pin
1
2
3
RDA
RDB
SDA
SDB
SG
ERA
CSA
ERB
CSB
A
B
SG
User-created cable
Display side
Terminal block
Display
External Device side
Terminal
resistance
*1
Shield
