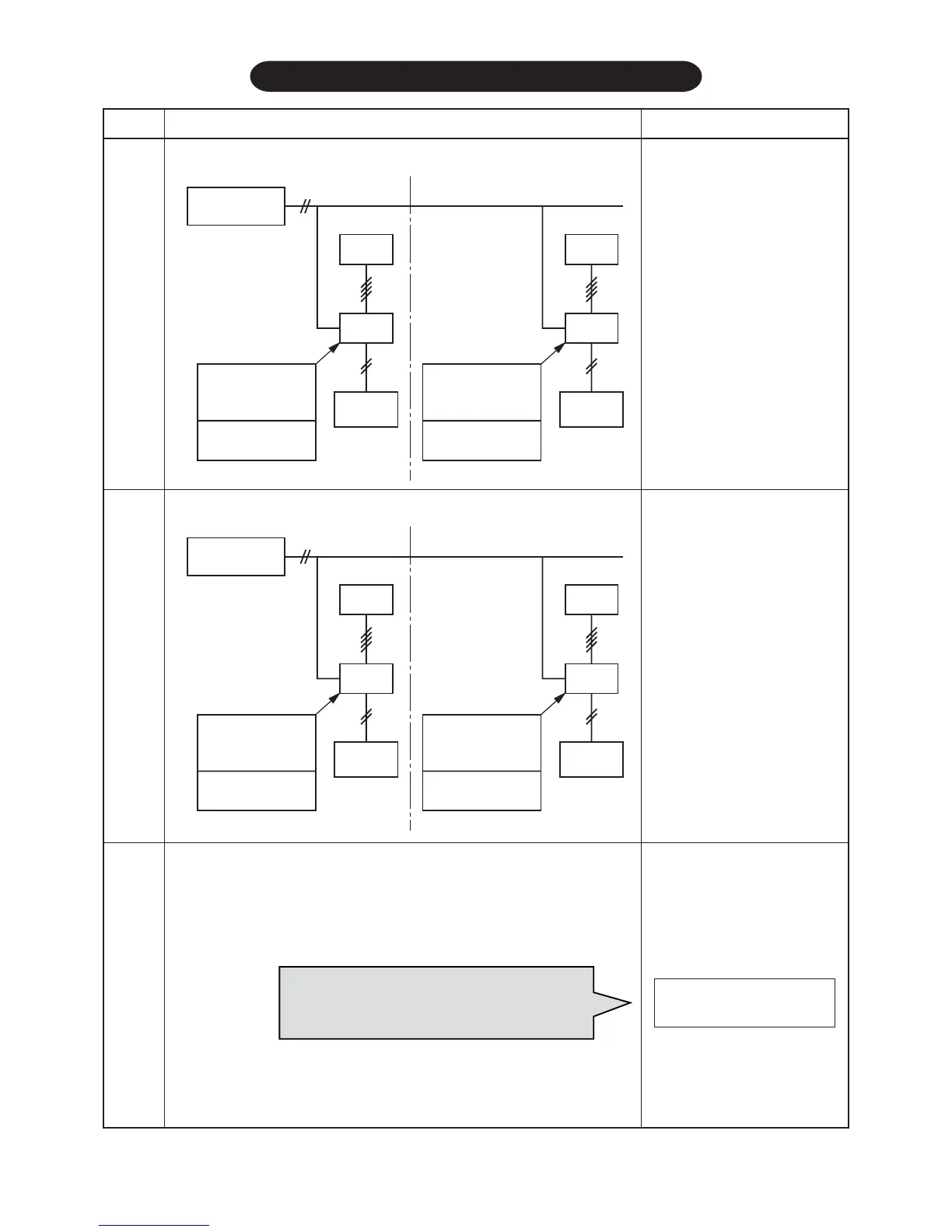

Alarm code when addresses are overlapped
Case 1
Procedure
When line addresses are overlapped
Alarm code
Wired remote controller side
Line 1: E08
Line 2: E08
Central remote controller side
E08 to Line 1 or Line 2
Wired remote controller side
Line 1: L20
Line 2: L20
Central remote controller side
L20 to Line 1 or Line 2
When line addresses are overlapped (Both Line 1 and 2 operate)
When only one-side Line 2 operates from remote controller, and overlap of
the central control address is detected in Case 2
• Line 1: During stop
• Line 2: Under operation (Overlap of central control address is de-
tected.)
Case 2
Case 3 Wired remote controller side
Line 1: No alarm
Line 2: L20
Central remote controller side
Line 1: No alarm
Line 2: L20
or
Line 1: P30
Line 2: No alarm
Central
control device
Line 1
Outdoor
Indoor
Remote
controller
Line address : 1
Indoor address : 1
Group address : 0
Central control
address : 1
Line 2
Outdoor
Indoor
Remote
controller
Line address : 1
Indoor address : 1
Group address : 0
Central control
address : 2
Central
control device
Line 1
Outdoor
Indoor
Remote
controller
Line address : 1
Indoor address : 1
Group address : 0
Central control
address : 1
Line 2
Outdoor
Indoor
Remote
controller
Line address : 2
Indoor address : 1
Group address : 0
Central control
address : 1
Line 1: Alarm code is output even if it stops.
Line 2: Alarm code is not output to the central side.
(Alarm is displayed on the wired remote controller.)
