Toshiba TCB-SC642TLE Installation Manual

13
5. Mode setting
According to function of each central controller, set
SW1 as Fig. 12.
(1) Central control/Remote control mode
● Central control mode
Central controller is used as central control
equipment.
Individual setting by remote controller can be
inhibited by central controller.
● Remote control mode
Central controller is used as remote controller.
Setting by central controller is inhibited by other
central control equipments.
(2) ALL/ZONE mode
● ALL mode
All indoor units can be controlled by central
controller.
● ZONE mode
Indoor units in one of ZONE 1, 2, 3 or 4 can be
controlled by central controller.
(3) Function of central controller is 10 types
according to combination of central control/remote
control mode and ALL/ZONE mode setting as the
table 1.
(4) Stick the central controller unit label in a
conspicuous position.
2
ON
OFF
3 4 5 6 2
ON
OFF
3 4 5 6
2
ON
OFF
3 4 5 6 2
ON
OFF
3 4 5 6
1 2 16
2
ON
OFF
3 4 5 6 2
ON
OFF
3 4 5 6
17 18 32
2
ON
OFF
3 4 5 6 2
ON
OFF
3 4 5 6
33 34 48
2
ON
OFF
3 4 5 6 2
ON
OFF
3 4 5 6
49 50 64

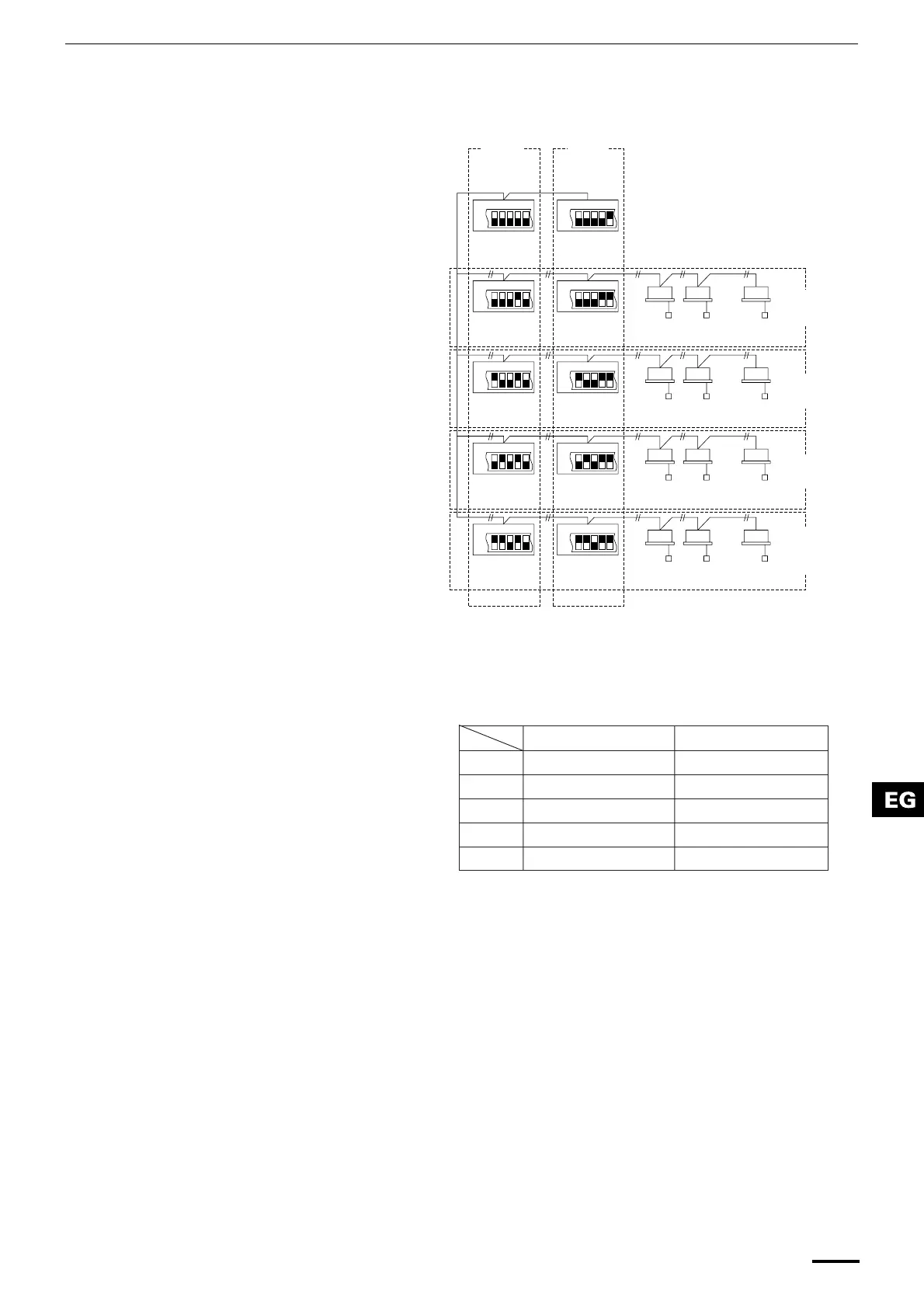

Fig. 12
Central
control mode
Remote
control mode
ALL central
control
ALL remote
control
ZONE1
central control
ZONE1
remote control
ZONE2
remote control
ZONE2
central control
ZONE3
central control
ZONE3
remote control
ZONE4
remote control
ZONE4
central control
ZONE1
central control
address 1–16
Inter-unit control wiring
ZONE2
central control
address 17–32
ZONE3
central control
address 33–48
ZONE4
central control
address 49–64
Central control Remote control
ALL 1. ALL/Central 6. ALL/Remote
ZONE1 2. ZONE1/Central 7. ZONE1/Remote
ZONE2 3. ZONE2/Central 8. ZONE2/Remote
ZONE3 4. ZONE3/Central 9. ZONE3/Remote
ZONE4 5. ZONE4/Central 10. ZONE4/Remote
Table 1
OI-607-13EG
01_TCB-SC642TLE_EG_II.fm Page 13 Wednesday, June 30, 2004 5:00 PM
