Toshiba TCS-NET Setting Tool Manual

TCS-NET General Purpose Interface
Setting Tool Manual
2
Toshiba
1. Introduction
This manual describes how to use the setting tool software for the advanced conjunction function for the general
purpose interface. The setting tool allows writing, reading, and erasing air conditioning control data to respond to
input port changes for the general purpose I/F board (TCB-IFCG1TLE, referred to as GP hereinafter).

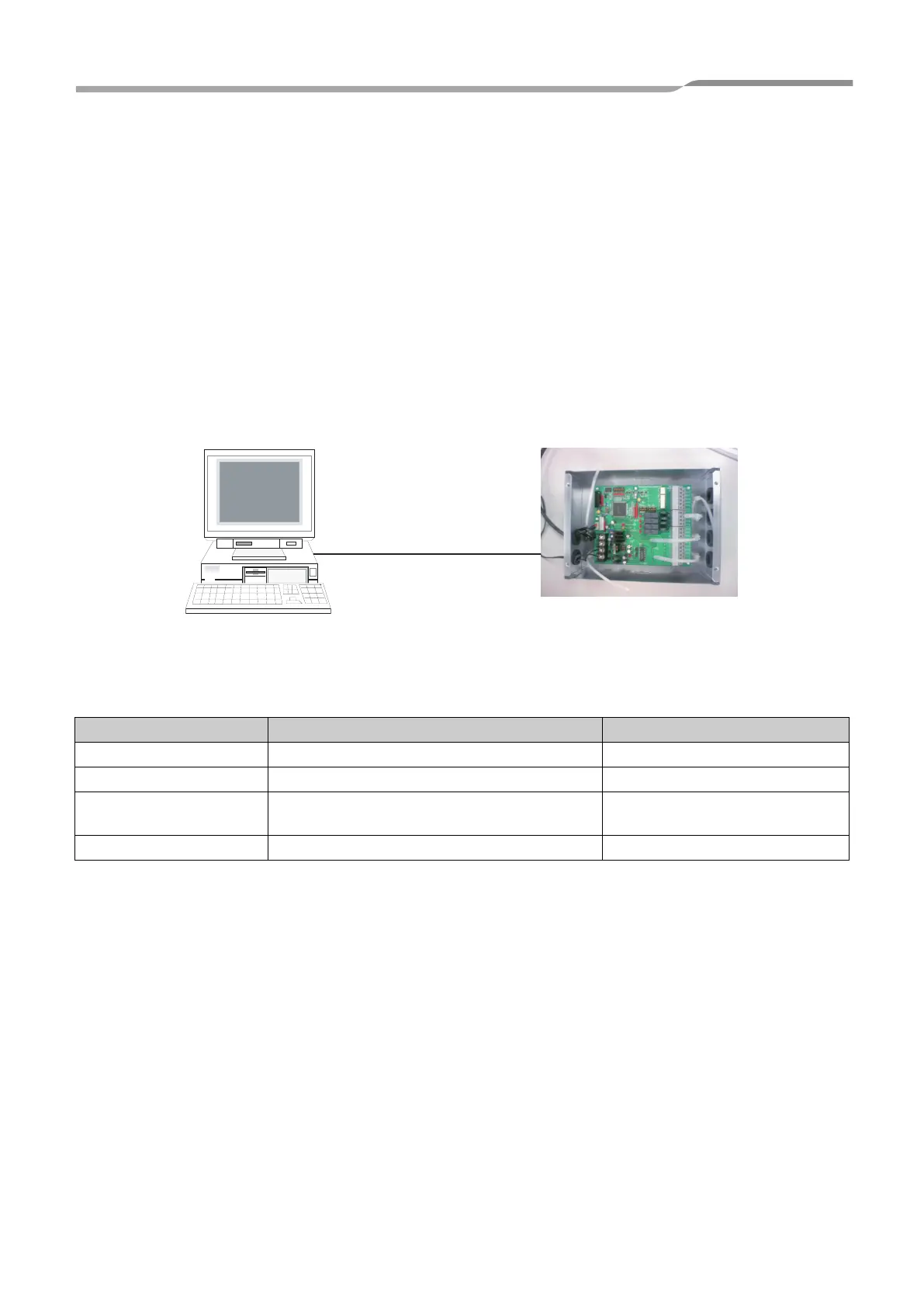

2. Overview of the System
This manual is intended for the setting tool for operations in conjunction with the GP.
Set the switches on the GP to SW5-5: OFF and SW5-6: ON, connect the connector CN5 on the GP to the RS232C
connector on the PC with the DYNA KIT cable, connect the power line of the GP, and then press the RESET button
(SW7) on the GP.
3. Necessary equipment and software
Product Product name Obtain from
DYNA KIT cable Adapter CNV2-3.3V Carrier sales company
.NET Framework Microsoft .NET Framework 2.0 or later Download from Microsoft web site.
Writing tool software Setting tool software for advanced conjunction
function for the General Purpose Interface
Carrier sales company
PC Windows XP or 2000 with RS232C port —
General Purpose I/F board (GP)
RS232C
