6-2-2. Setting Trigger Port and Condition

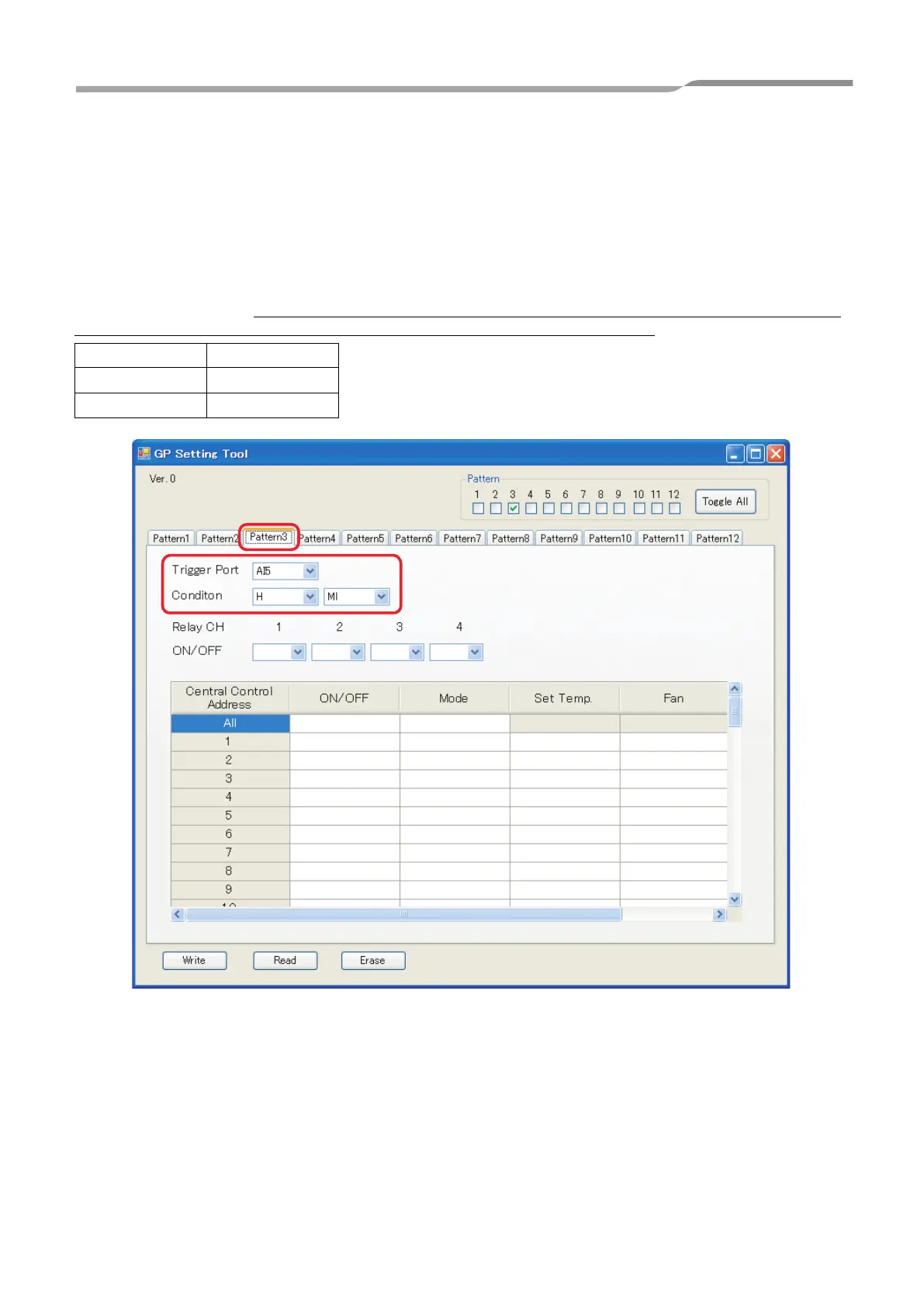

Select the tab of the selected pattern to set Trigger Port and Condition.
If no Trigger Port is selected, an error occurs.
When selecting values for Condition, if the same value is selected for before and after (e.g. before = H, after = H),
an error occurs.
When digital input (DI1 to DI6) is selected for Trigger Port, if values except for the combinations shown below are
selected, an error occurs. “H” corresponds to the state where input current does not flow to the relevant DI port,
and “L” corresponds to the state where the input current flows to the relevant DI port.
Before After
HL
LH
