Preparations

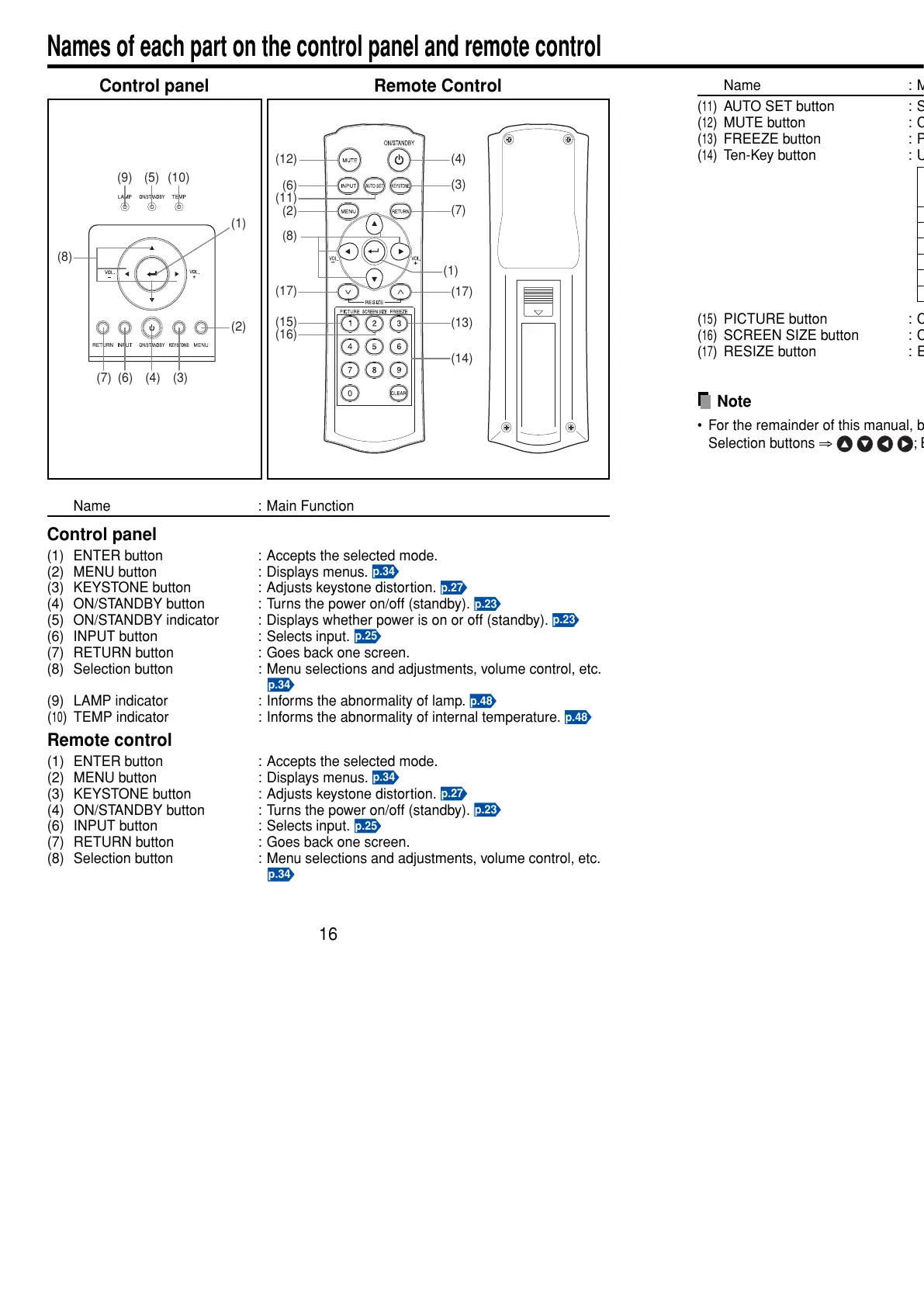

Names of each part on the control panel and remote control
Control panel Remote Control
Name : Main Function
Control panel
(1) ENTER button : Accepts the selected mode.
(2) MENU button : Displays menus.
p.34
(3) KEYSTONE button : Adjusts keystone distortion.
p.27
(4) ON/STANDBY button : Turns the power on/off (standby).
p.23
(5) ON/STANDBY indicator : Displays whether power is on or off (standby).
p.23
(6) INPUT button : Selects input.
p.25
(7) RETURN button : Goes back one screen.
(8) Selection button : Menu selections and adjustments, volume control, etc.
p.34
(9) LAMP indicator : Informs the abnormality of lamp.
p.48
(
10
) TEMP indicator : Informs the abnormality of internal temperature.
p.48
Remote control
(1) ENTER button : Accepts the selected mode.
(2) MENU button : Displays menus.
p.34
(3) KEYSTONE button : Adjusts keystone distortion.
p.27
(4) ON/STANDBY button : Turns the power on/off (standby).
p.23
(6) INPUT button : Selects input.
p.25
(7) RETURN button : Goes back one screen.
(8) Selection button : Menu selections and adjustments, volume control, etc.
p.34
(9) (5) (10)
(1)
(2)
(8)
(7) (6) (4) (3)
Name : Main Function
(
11
) AUTO SET button : Sets up input from computer.
p.27
(
12
) MUTE button : Cuts off the picture and sound temporarily.
p.29
(
13
) FREEZE button : Pauses image.
p.30
(
14
) Ten-Key button : Use when entering password.
(
15
) PICTURE button : Changes image mode.
p.29
(
16
) SCREEN SIZE button : Changes screen size.
p.30
(
17
) RESIZE button : Enlarges image.
p.28
Note
• For the remainder of this manual, buttons are referred to as follows:
Selection buttons
; ENTER button
Remote
Input
Remote
control
items
control Input items
button button
1
[1]
7
[7]
2
[2]
8
[8]
3
[3]
9
[9]
4
[4]
0
[0]
5
[5] Deletes one character.
6
[6]
(12)
(6)
(11)
(2)
(8)
(17)
(15)
(16)
(4)
(3)
(7)
(17)
(13)
(14)
(1)
